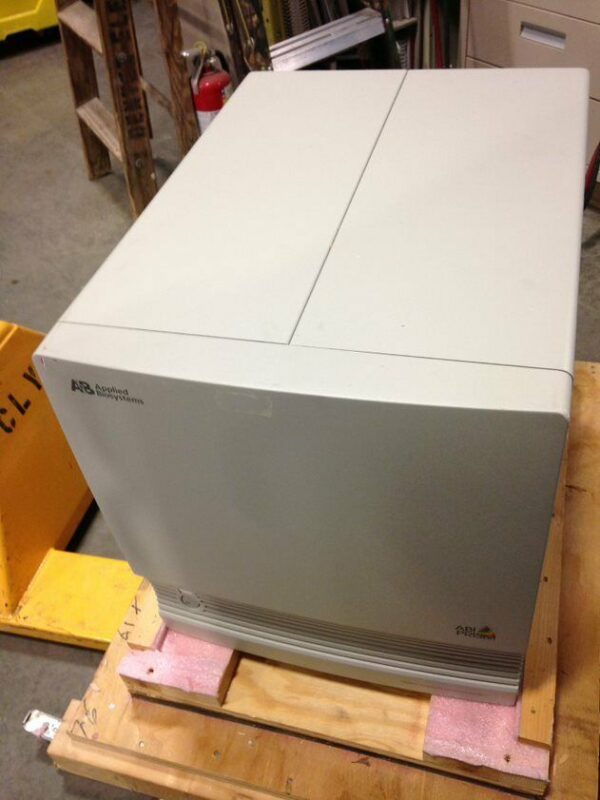

Applied Biosystems 7900HT Sequence Detection PCR System


2 in stock


Applied Biosystems 7900HT Sequence Detection PCR System

The 7900HT Fast Real-Time PCR System is a real-time quantitative PCR system that combines 96- and 384-well plate compatibility and the TaqMan® Low Density Array with fully automated robotic loading-and now also offers optional Fast real-time PCR capability.


Capacity:  Up to 84 x 384-well plates with optional automation accessory
Detection Method:  SYBR, Primer-Probe Detection
Dimensions:  72 cm (W) x 84 cm (D) x 64 cm (H) (with drawer open)
Format:  384-well plate
High-throughput Compatibility:  High-throughput Compatible, Multiplexing
Optics:  Extended-life 488 nm argon-ion laser excitation source, No filters (CCD acts as spectrograph with continuous detection 500 -650 nm)
Passive Reference Dye:  ROX (Separate Tube), No ROX, Other Passive Reference Dye, ROX (Pre-mixed)
Reaction Speed:  Fast
Reaction Volume Range:  5-20 µl
Run Time:  52 minutes (384-well in fast mode), <2 hrs (384-well in standard mode)
Sample Ramp Rate:  Fast mode: ± 3.0°C⁄sec, Standard mode: ± 1.6°C⁄sec
Temperature Accuracy:  ±0.25°C of display temperature
Temperature Range (Metric):  4-100°C
Temperature Uniformity:  ±0.5°C
Thermal Cycling System:  Peltier-Based System
Throughput:  >5,000 real-time PCR rxns per day (384-well block and automation accessory), >10,000 endpoint PCR rxns per hour (384-well block and automation accessory)
Weight:  114 kg (250 lbs) with automation accessory, 82 kg (180 lbs) without automation accessory



cs – R2 E2 P100




Additional information

Weight 250 lbs
Dimensions 36 × 32 × 30 in
