Description
BD Biosciences FACSMelody Cell Sorter System

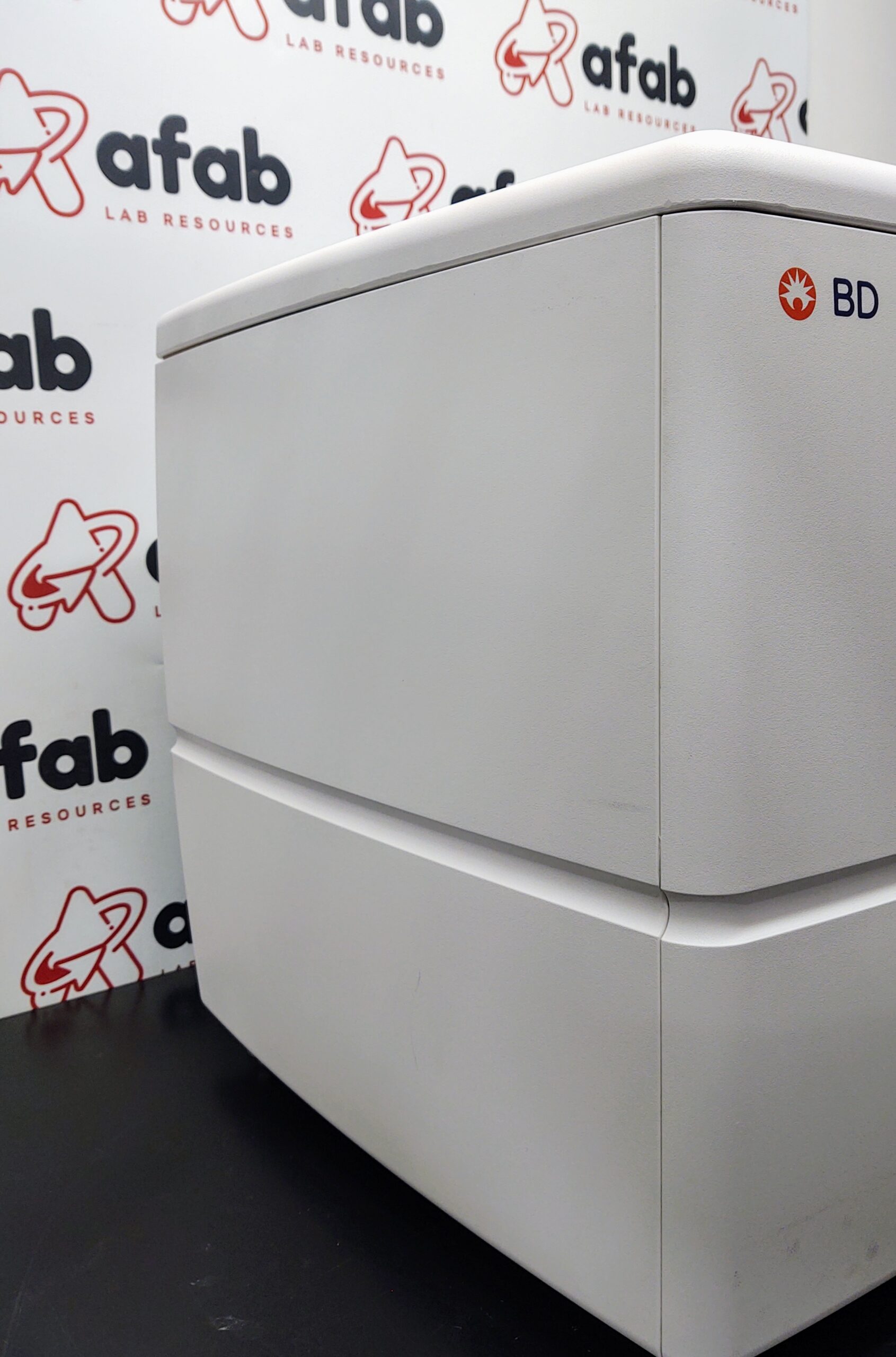

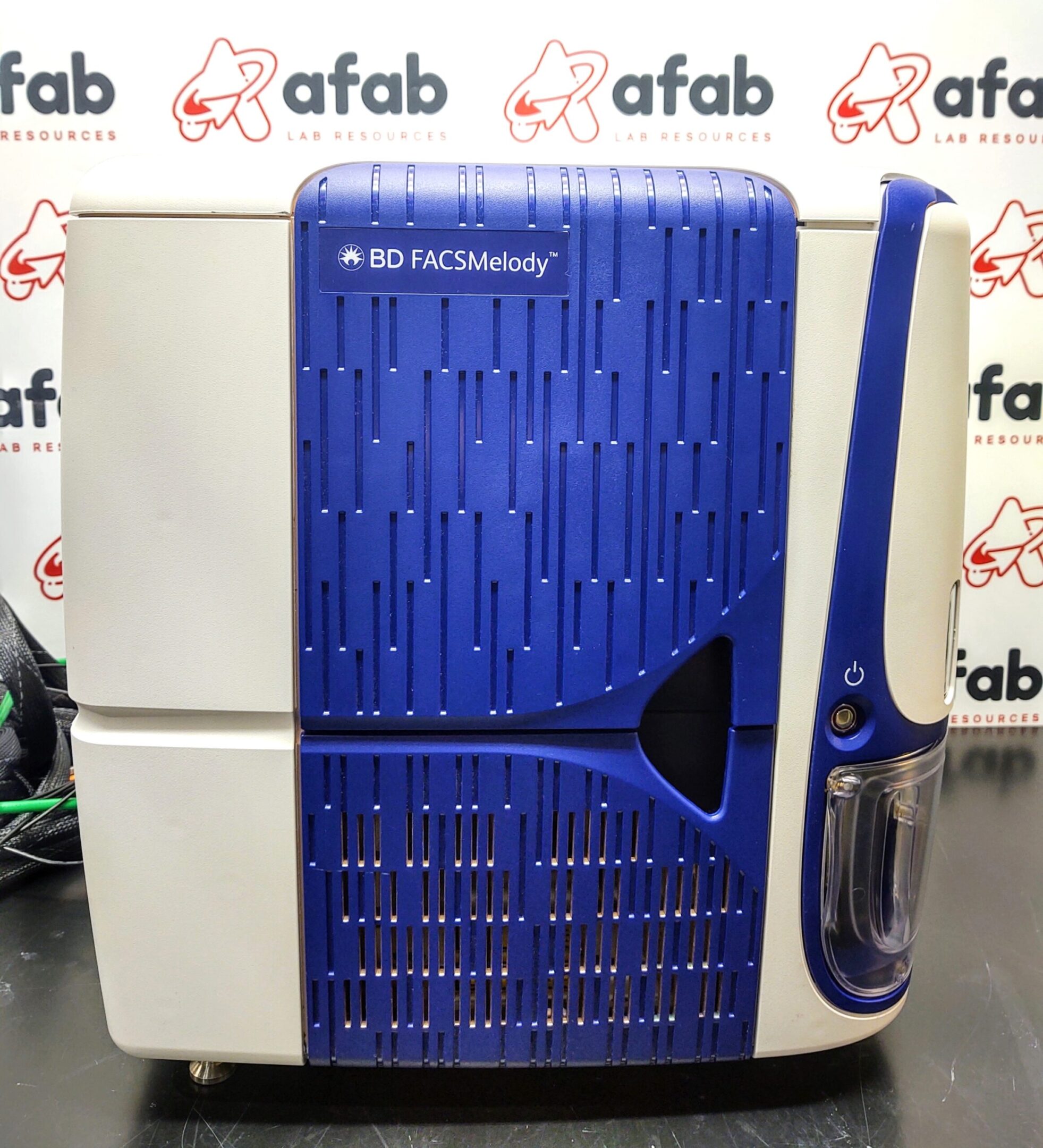

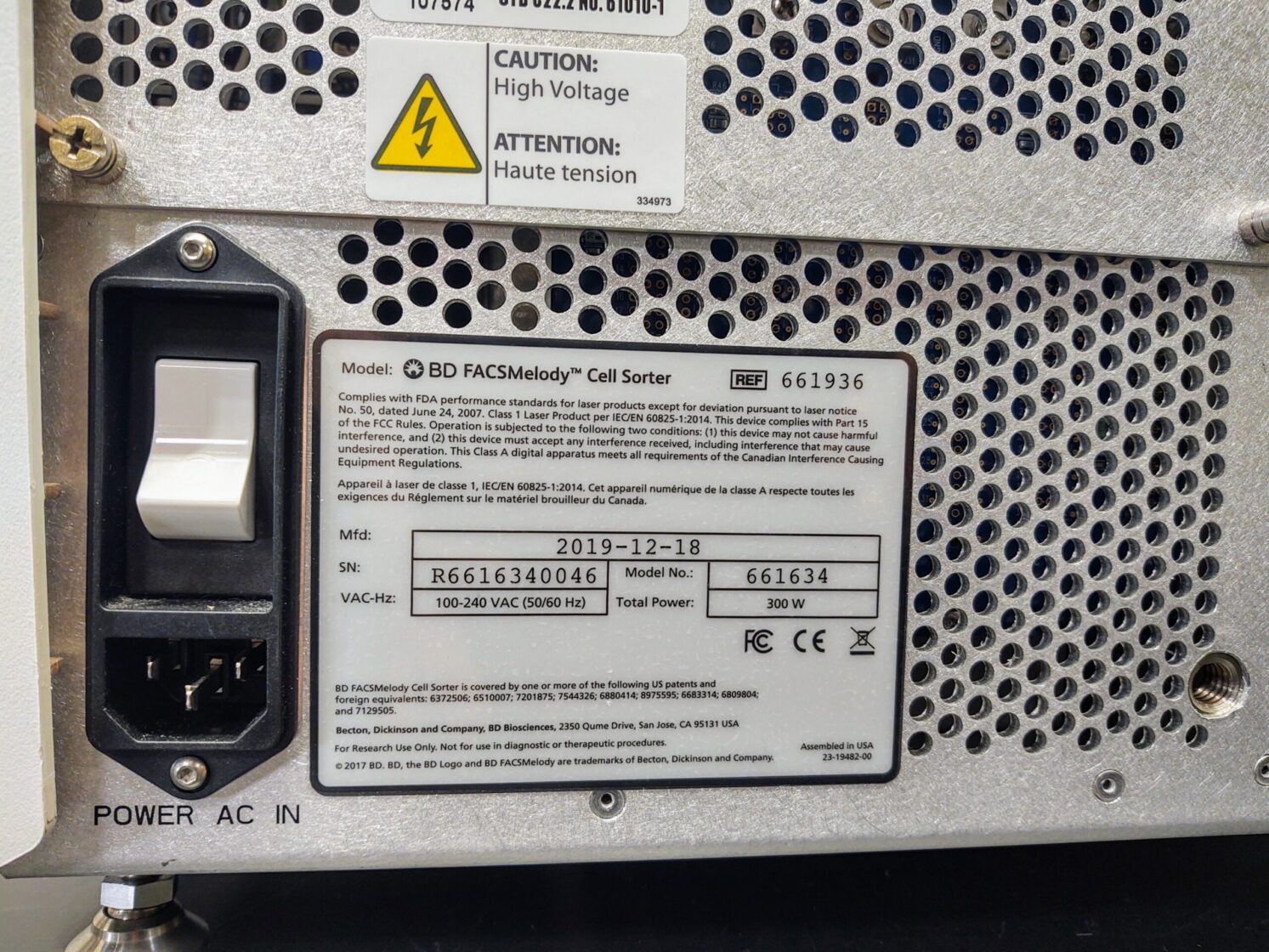

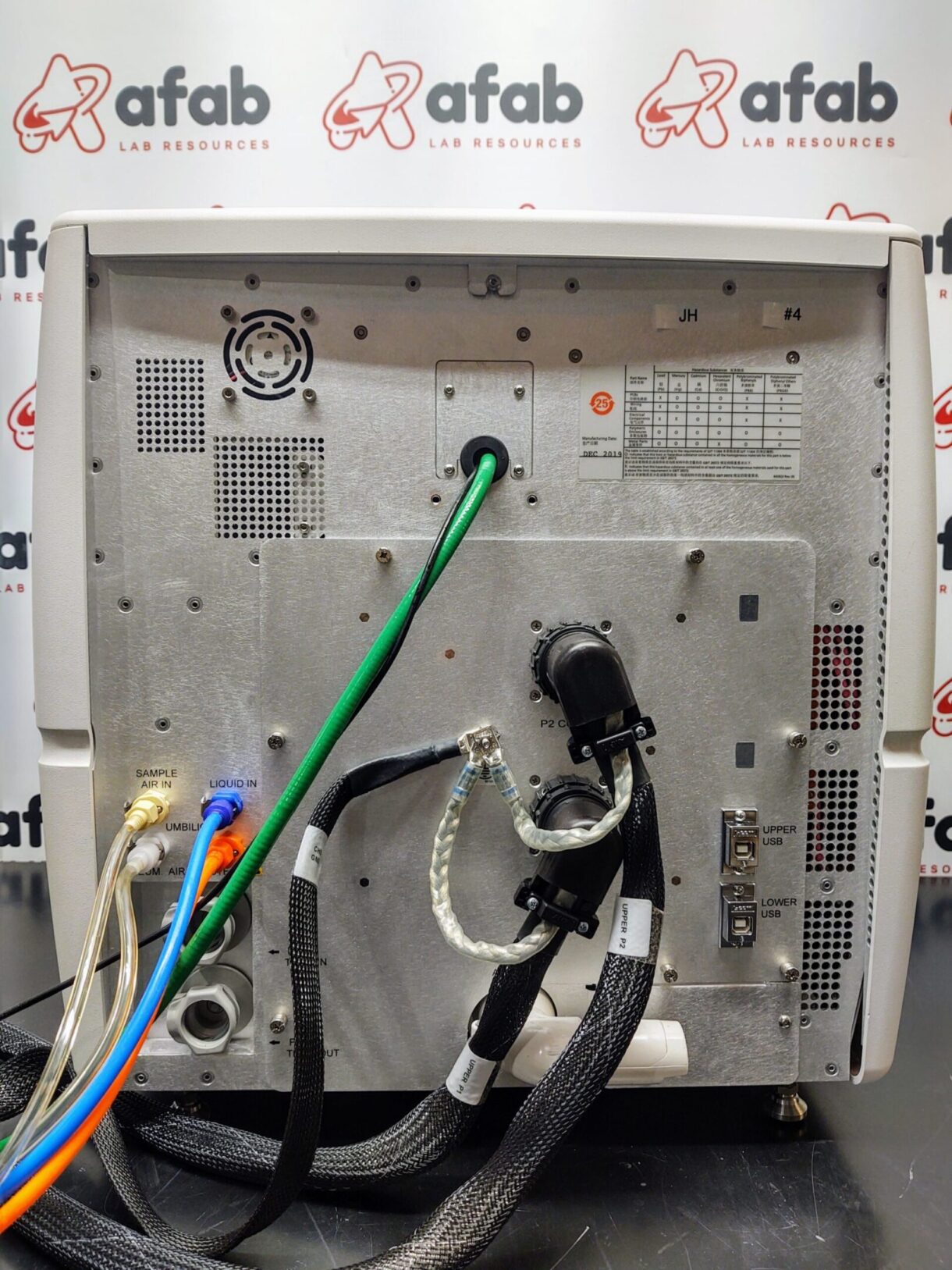

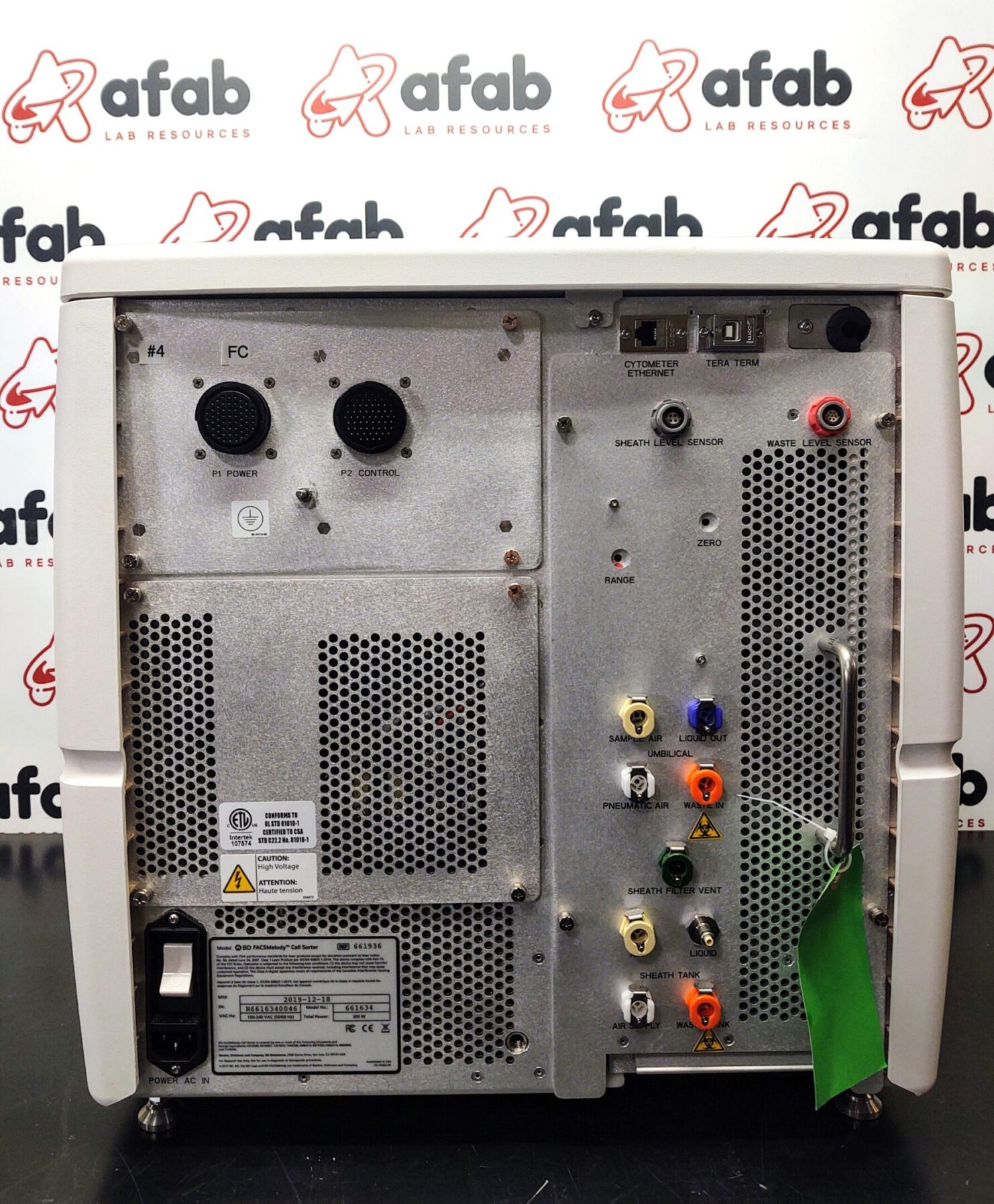

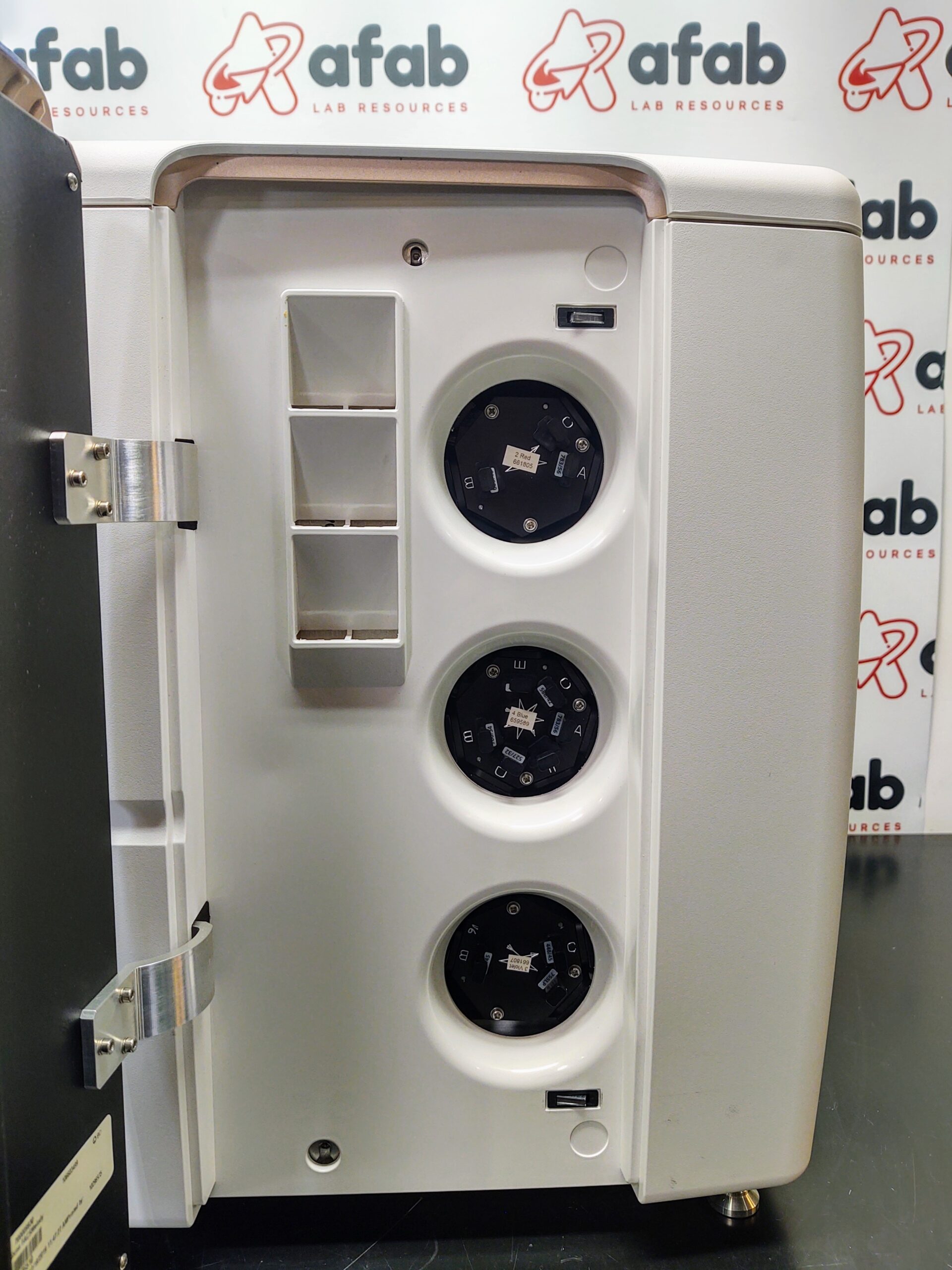

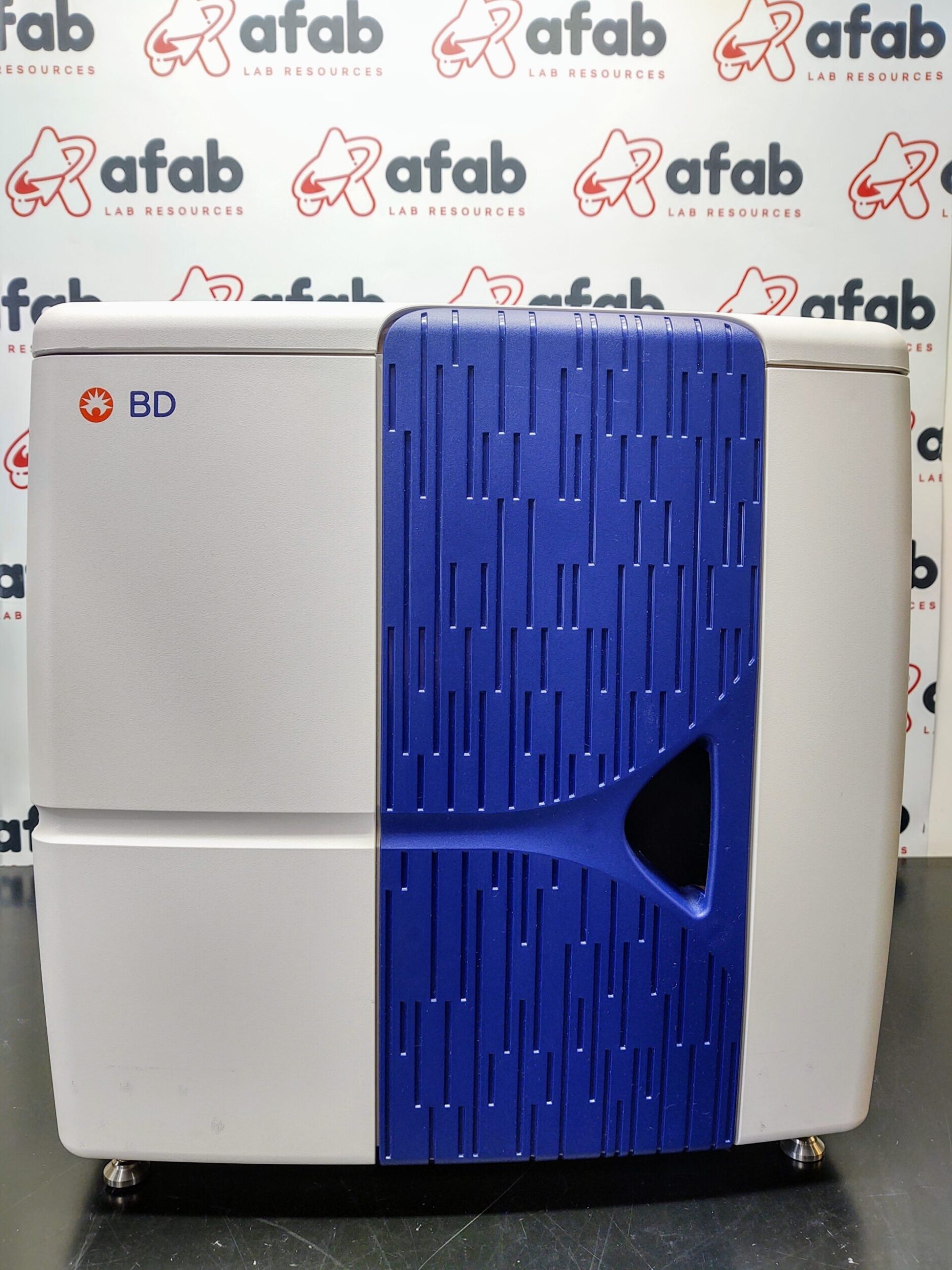

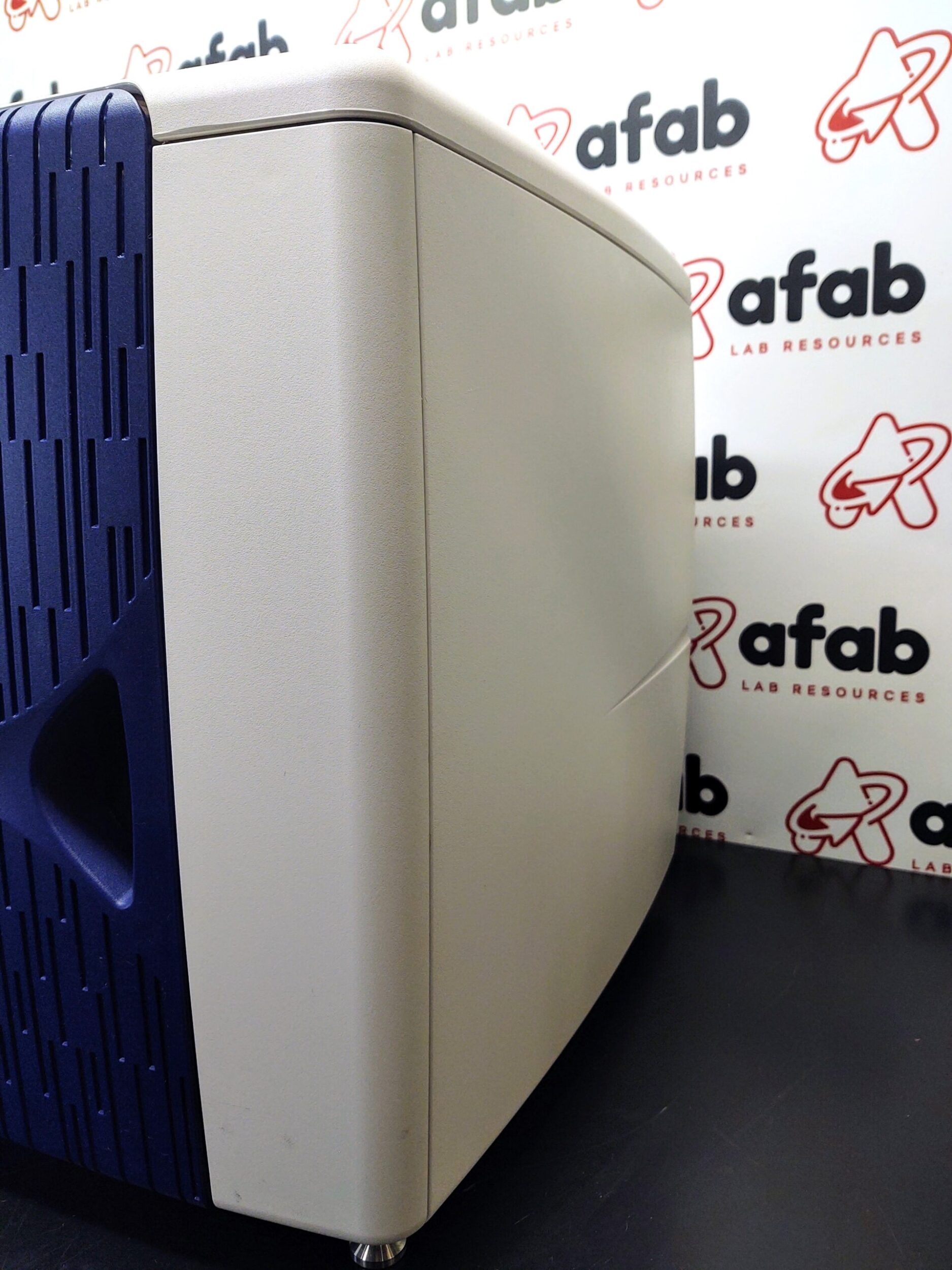

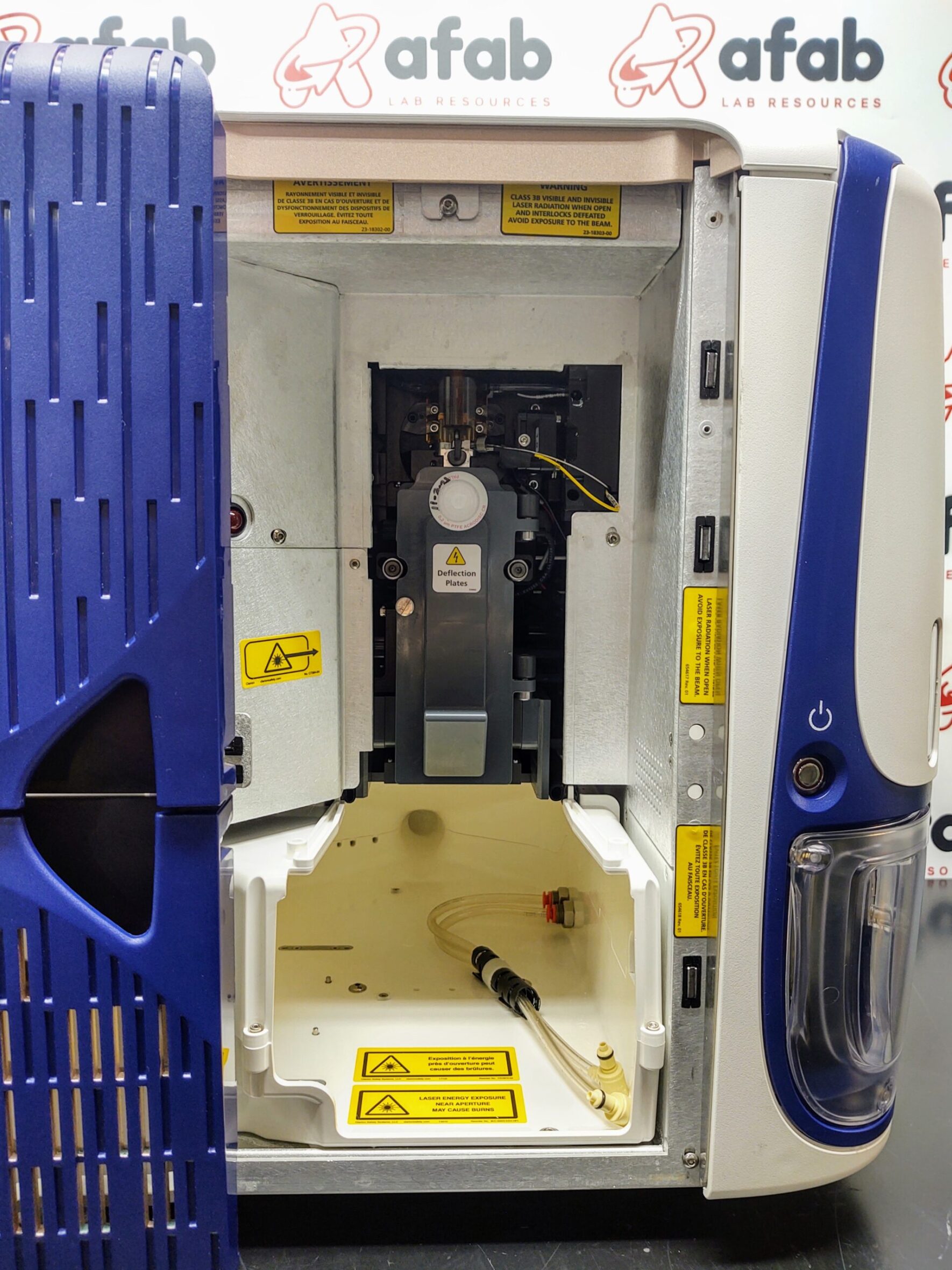

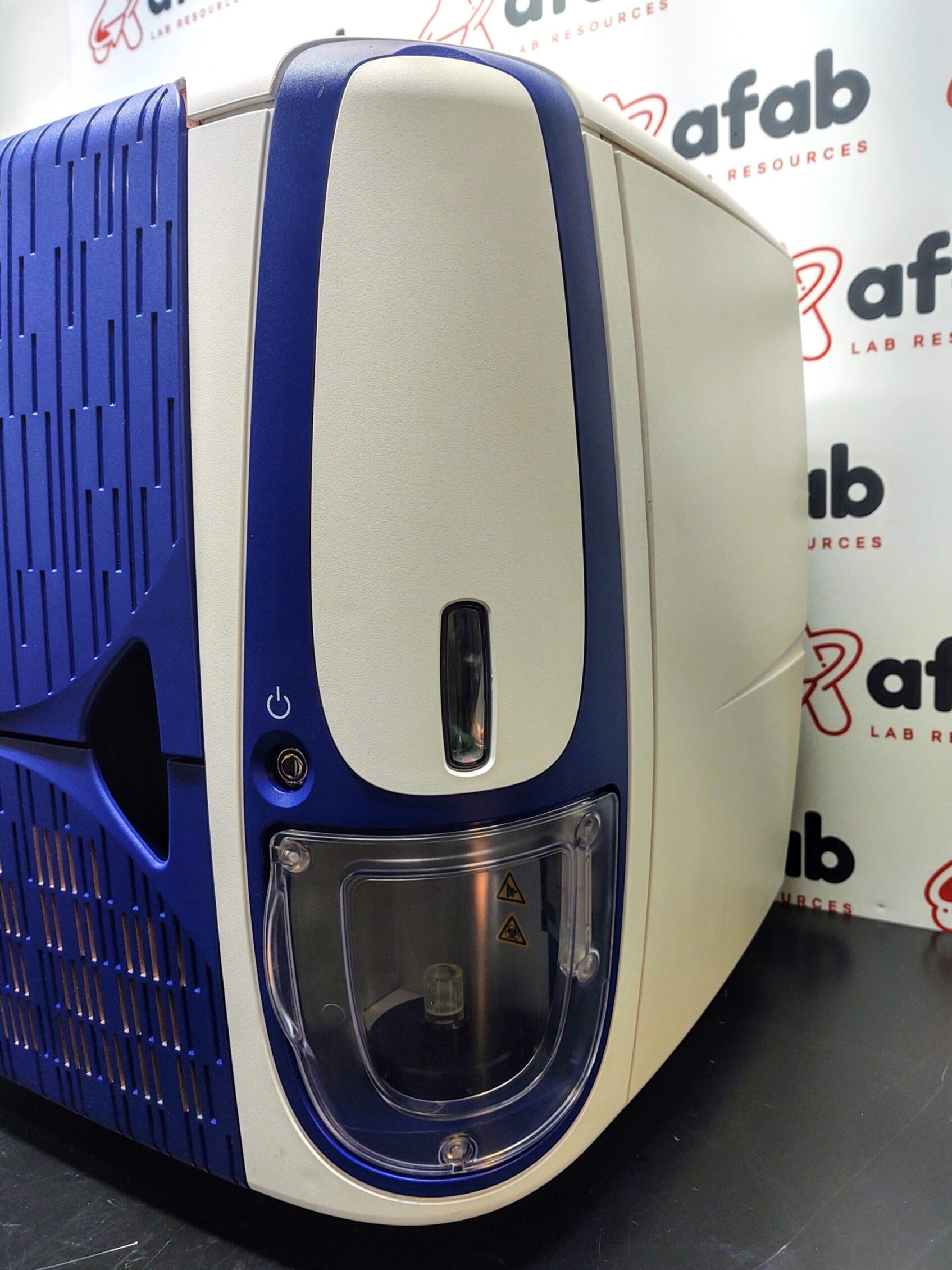

BD FACSMelody Cell Sorter
- Laser Wavelengths: Blue Laser: 488 nm, Red Laser: 640 nm
- Fluidics Temperature Control: Options: 4°C, 22°C, 37°C, and 42°C, or off
- Nozzle Size: 100-µm nozzle
- Sample Agitation: Adjustable through the software to keep the sample constantly suspended.
- Sort Collection: 4-way sorting options for 1.5-, 2.0-, and 5.0-mL tubes
- Temperature Control for Collection: Utilizes a water recirculation unit to provide heating or cooling for collection into tube holders.
- Index Sorting: Additional format options, including one-way sorting for 6, 24, 48, 96, 384-well plates, and slides.

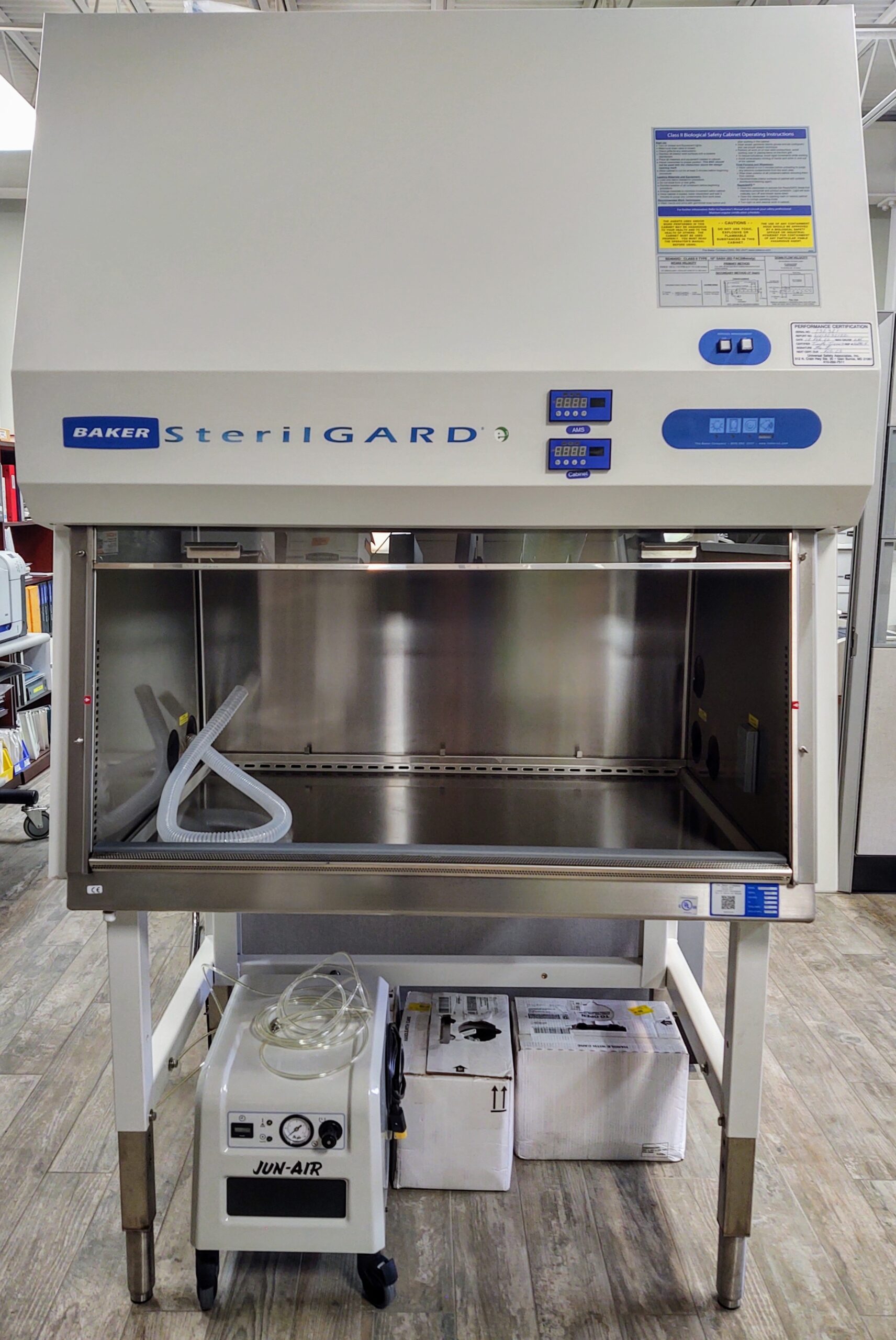

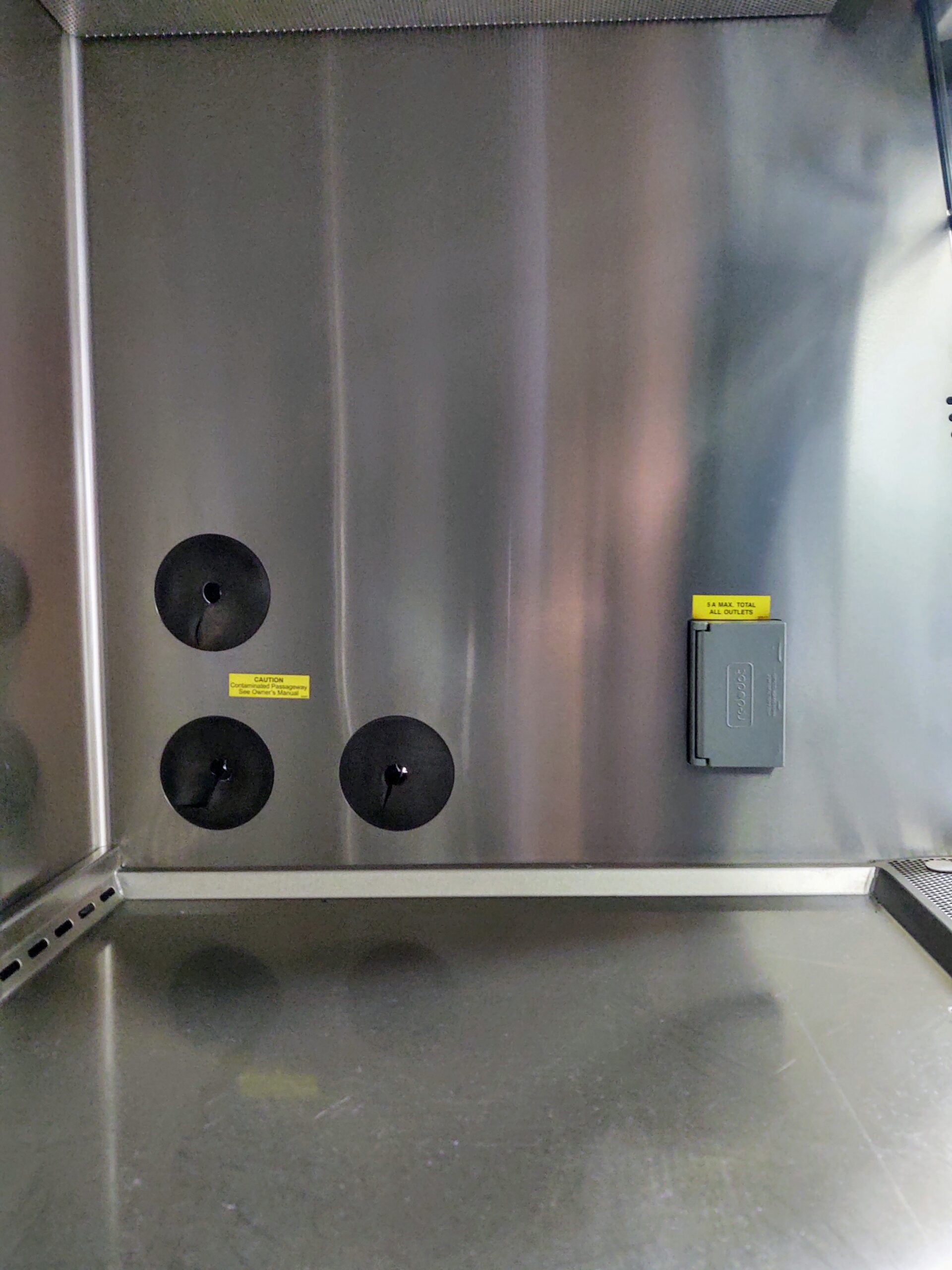

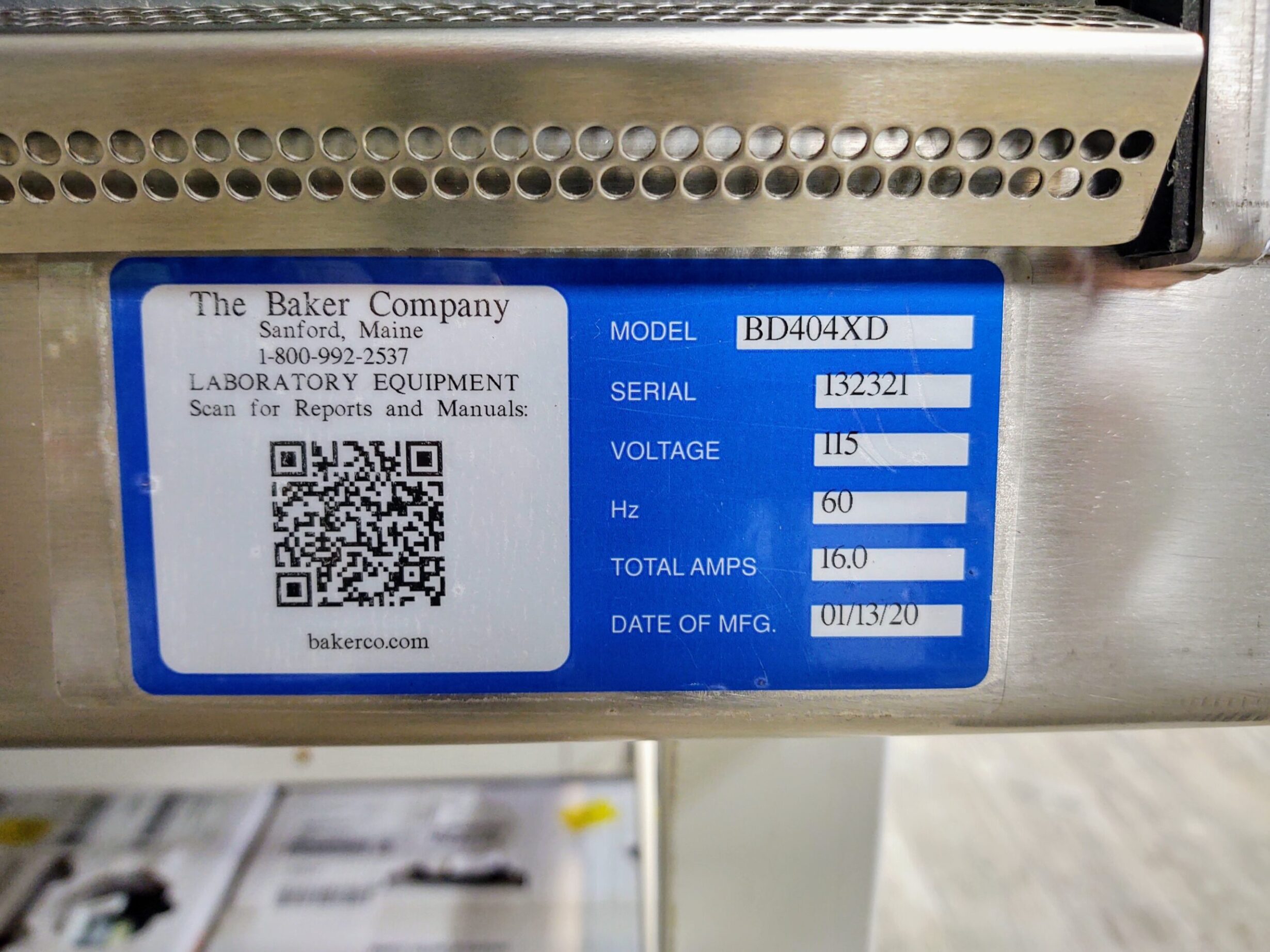

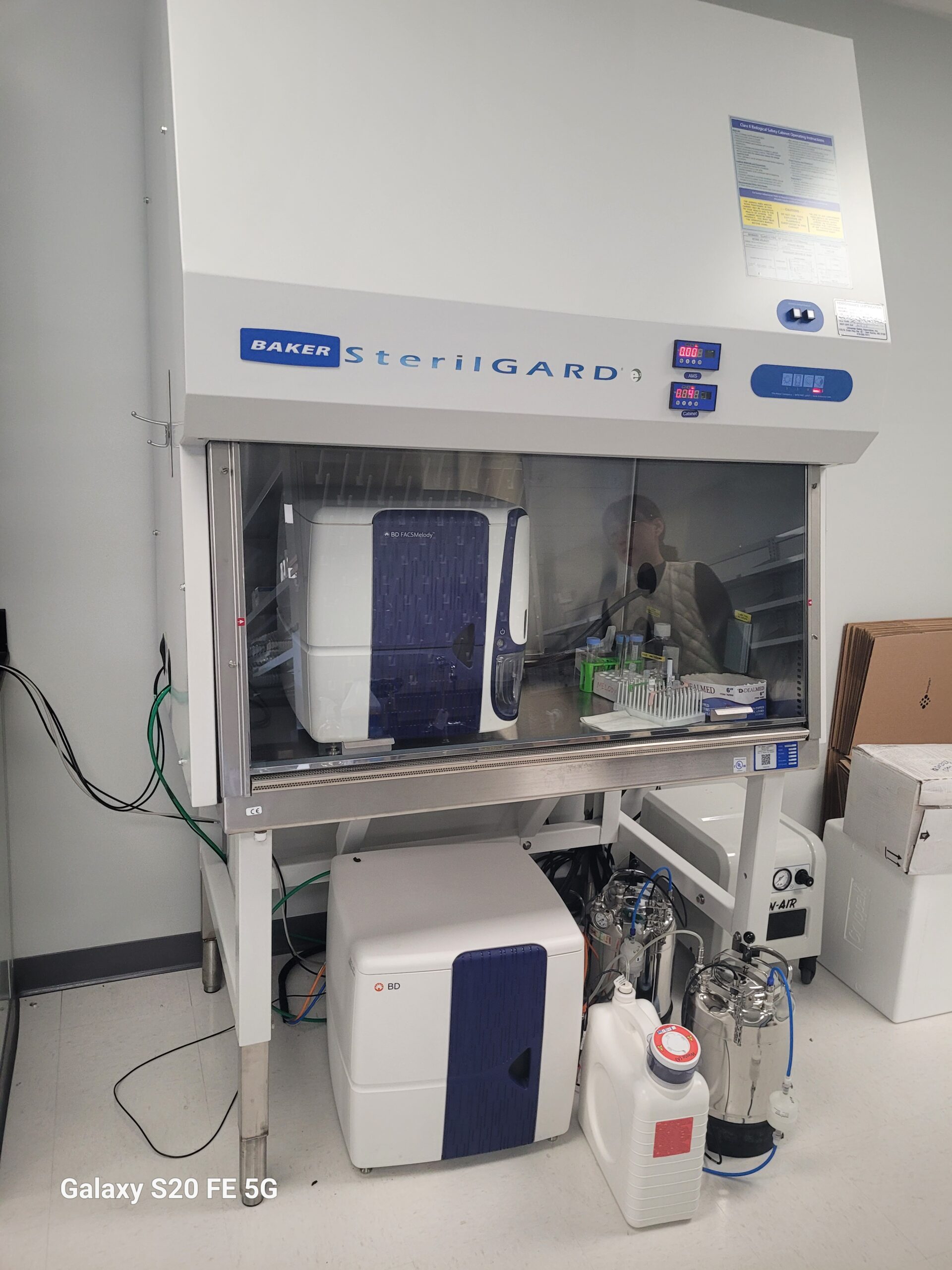

Baker BD404XD SterilGard e3 Class II/A2 – 4 ft.BSC
- Recirculation and Exhaust: 70% recirculating, 30% exhausted.
- Exterior Dimensions (DxWxH): 30.68 x 53.75 x 61.75 in.
- Interior Dimensions (DxWxH): 24.56 x 46 x 27.44 in.
- Voltage: 115V, 20 A, 60 Hz.

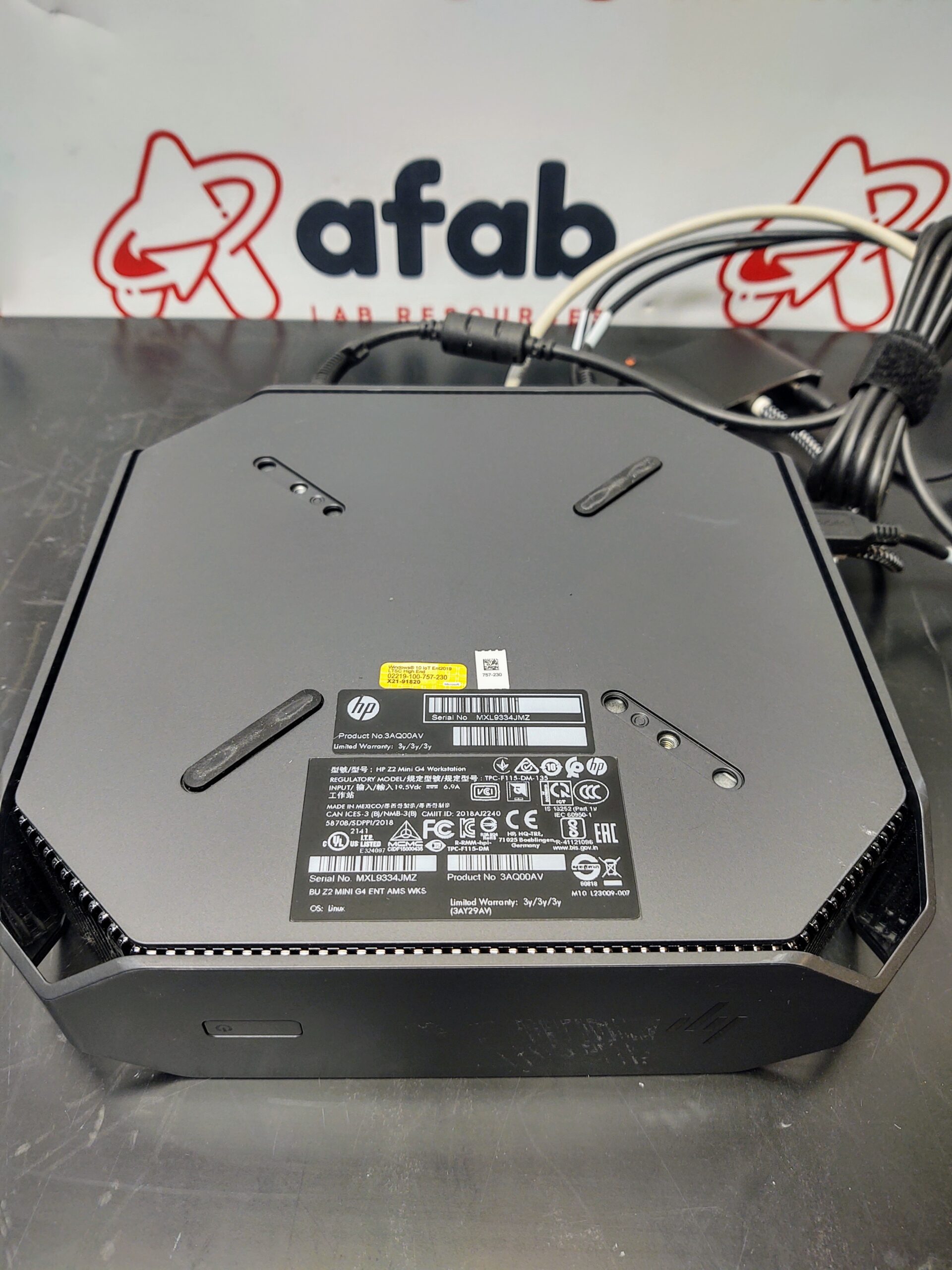

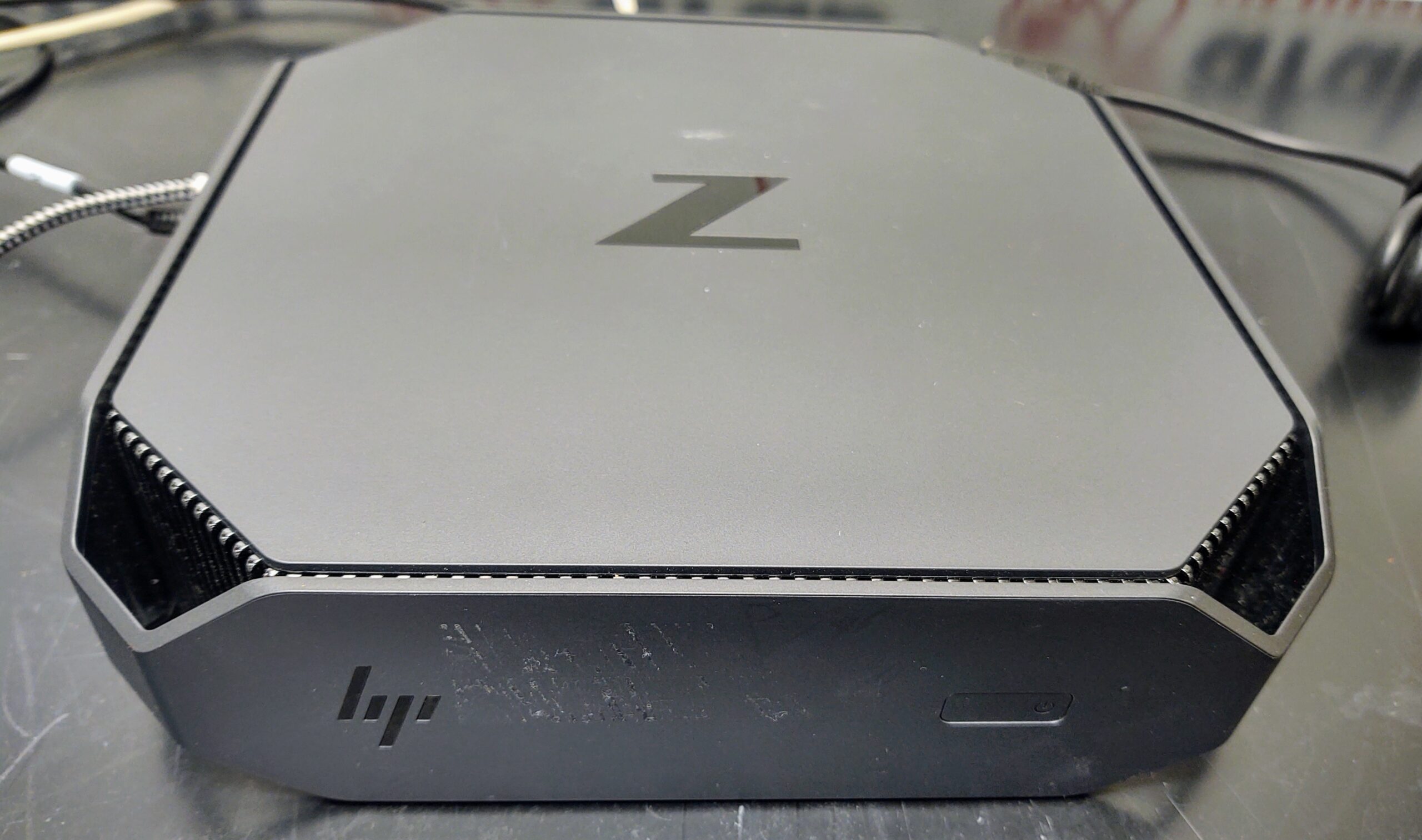

HP Z2 Mini G4 Workstation
- Intel Core i7-8700 processor
- Up to 4.6 GHz with Intel Turbo Boost Technology (3.2 GHz base frequency)
- 12 MB cache and 6 cores
- Intel UHD Graphics 630
- DDR4 memory up to 2666 MT/s data rate
- 65 W TDP
- Intel vPro Technology

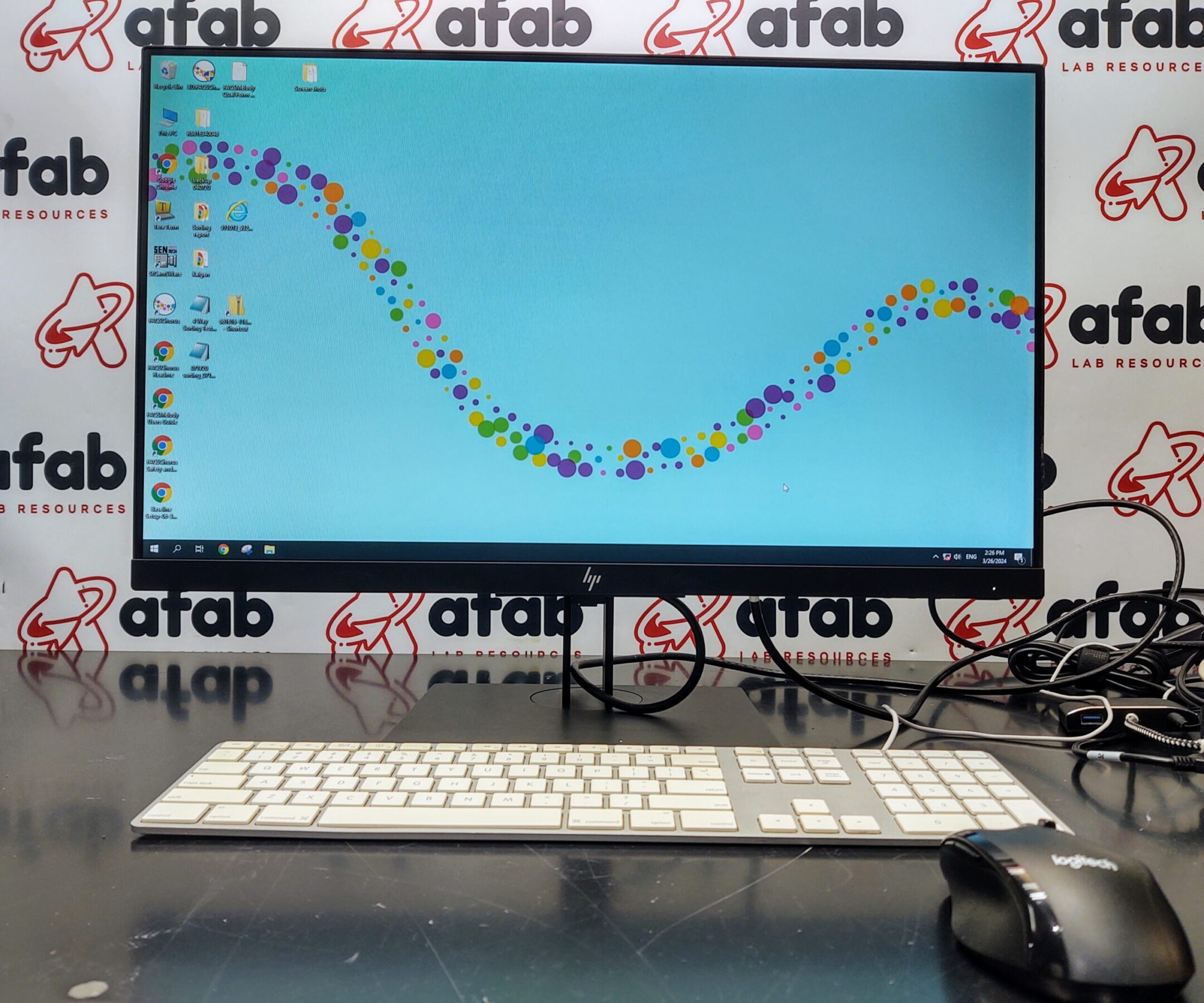

HP Z Display 23.8-Inch Screen LED-Lit Monitor Black Pearl 1JS07A4
- Display Size: 23.8 inches, diagonally measured.
- Panel Type: IPS (In-Plane Switching) with LED backlight and a micro-edge bezel (3-sided).
- Native Resolution: 1920 x 1200 pixels at 60 Hz (supports up to 75 Hz refresh for some video modes).
- Aspect Ratio: 16:10., Brightness: Typical brightness of 300 cd/m².
- Contrast Ratios: Static: 1,000:1. Dynamic (Typical): 10,000,000:1.
- Color Depth: 8-bit (6 + 2 FRC), supporting 16.7 million colors.
- Response Time: Default: 14.0 ms (adjustable to as low as 5.8 ms in the display menu).
- Gray-to-gray: 5.8 ms
- Viewing Angles: Horizontal: Up to 178° (10:1 minimum contrast ratio).
- Vertical: Up to 178° (10:1 minimum contrast ratio). Pixel Pitch: 0.270 mm.
- Backlight Lamp Life: Minimum 30,000 hours to half brightness.
- Color Gamut: sRGB: Yes (99% NTSC). Factory Color Calibrated.
- Connectivity: DisplayPort™ 1.2 In., HDMI 1.4., DVI., USB 3.0 Type-A., USB Type-C (DisplayPort 1.2 Out). Audio-out (headphone) Jack.
- Dimensions (Panel Active Area): Approximately 20.41 x 12.76 in.

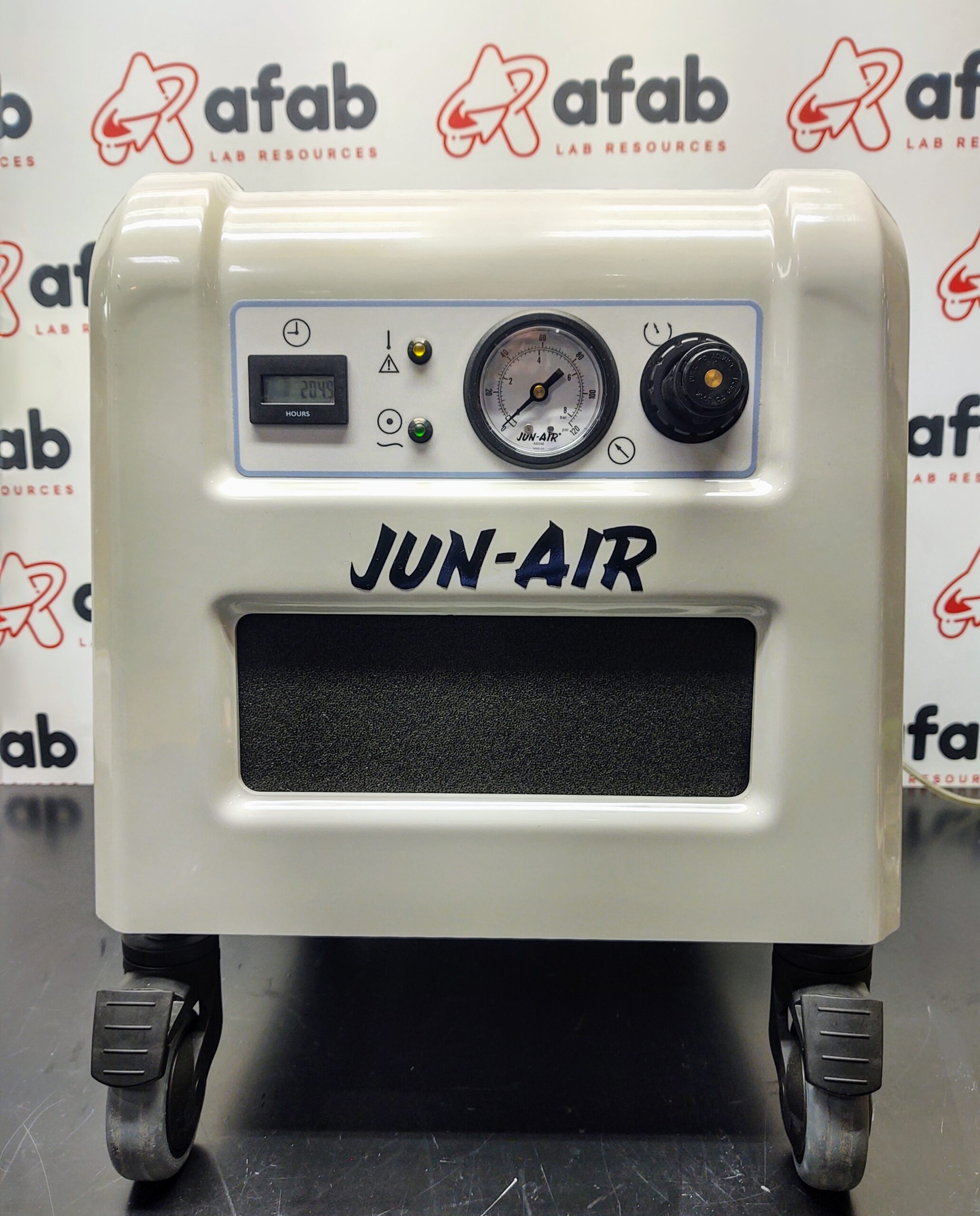

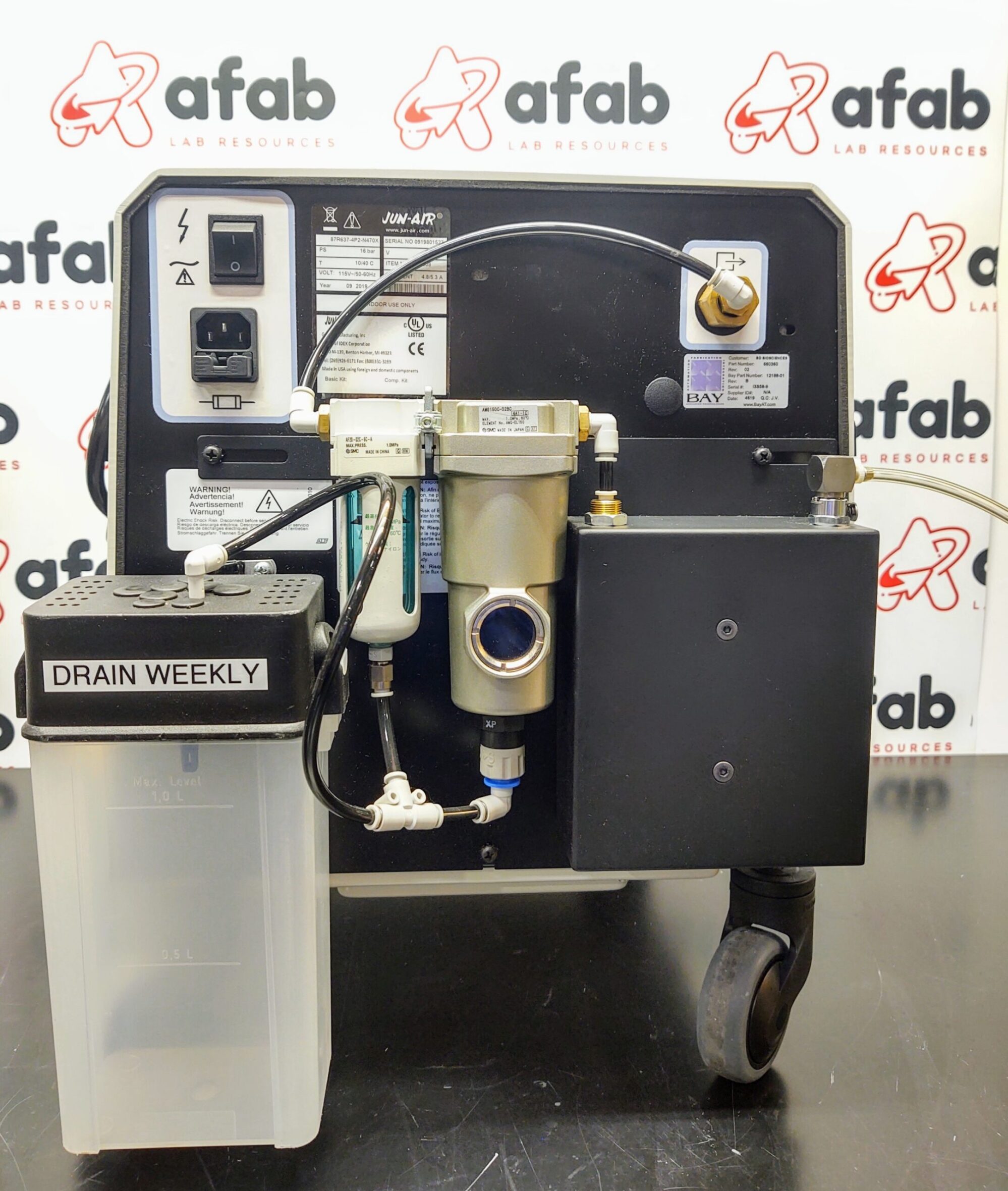

JUN-AIR 1770008
- An oilless piston air compressor designed for laboratories and other environments where delicate machinery and critical instrumentation require clean, quiet air.
- Tank Size: 1.1 gallons
- Free Air Capacity: 2.75 CFM (cubic feet per minute) or 77.9 LPM (liters per minute)
- Maximum Pressure: 120 PSI (pounds per square inch) or 8 bar
- Motor Horsepower: 7/8 HP (horsepower)
- Power: 120V AC, 50/60 Hz
- Dimensions (DxWxH): 16 x 19.5 x 17.25 in.

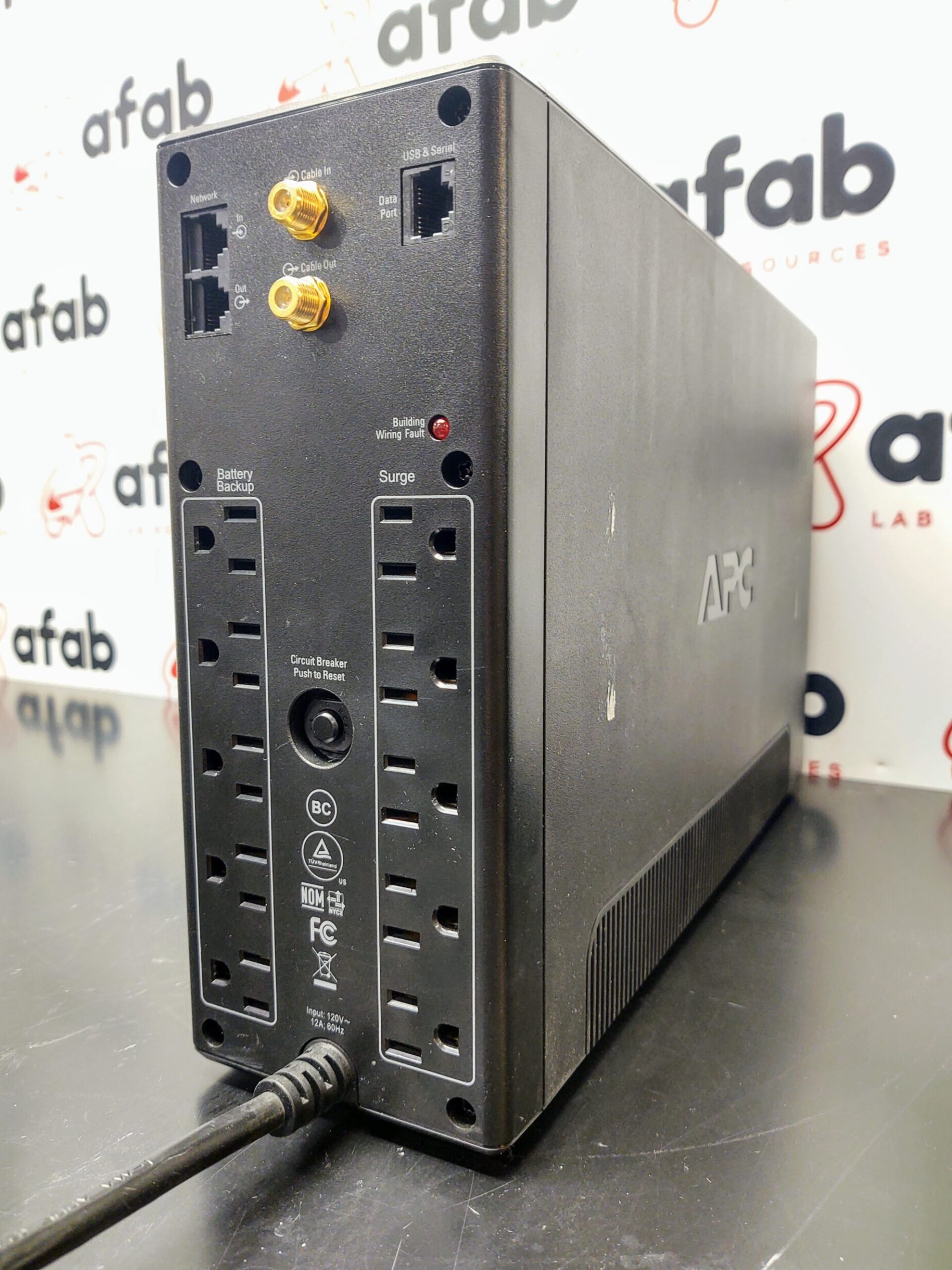

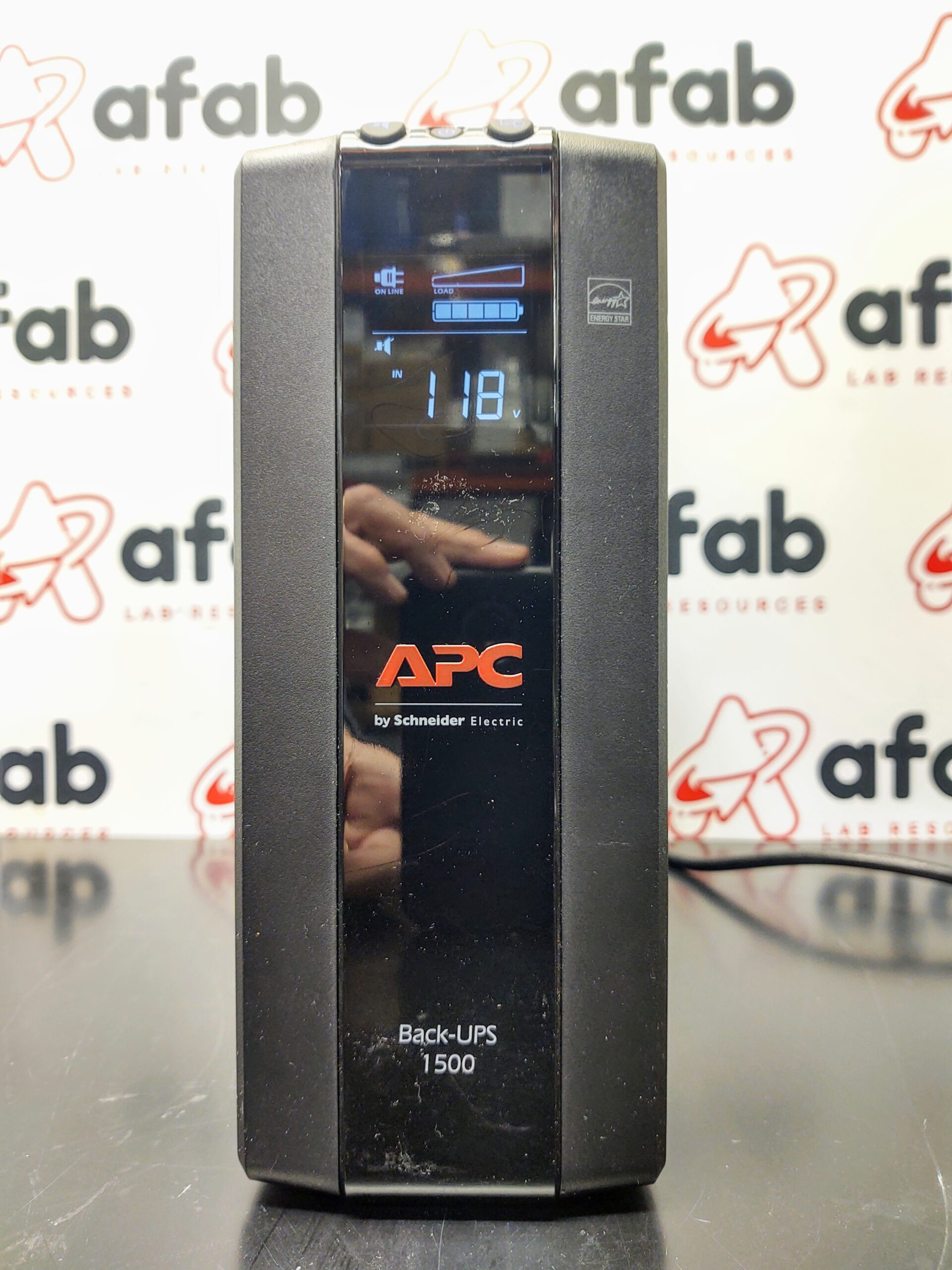

APC Battery Backups Pro BX1500M
- Output Capacity: 1500 VA / 900W.
- Input Voltage: 120 VAC @ 60 Hz ± 3 Hz.
- Total NEMA 5-15R Outlets: 10 (divided into 5 battery backup & surge outlets and 5 surge-only outlets).
- Input Connection: NEMA 5-15P with a 6-foot cord.
- Surge Energy Rating: 789 Joules.
- Automatic Voltage Regulation (AVR): Corrects voltage variations to provide reliable power.
- Dataline Protection: 1Gb protection.
- Belkin BE112234-10 12-Outlet Surge Protector
- AC Plug Style: Right Angle, AC Rating: 15A/125V/1875W
- Circuit Total Joules: 3996J, Clamping Voltage: 330V
- EMI/RFI Noise Filter: 150K Hz ~100M Hz, up to 75dB
- Max. Spike Voltage: 6000V, NOT GND Indicator: Yes (RED)
- Overload Protection: Yes, Power Safety Shut Down: Yes (GREEN)
- Data Line Protection: RJ-11 Telephone/Modem/Fax/DSL protection (1 in, 2 out)
- Coaxial/Cable protection, RJ-45 Ethernet protection
- 12 total surge-protected outlets with a 4120-Joule energy rating
- Six Block Space outlets for accommodating larger plugs
- 10-foot heavy-duty power cord for flexibility
- Sliding safety covers for added protection
- Cord management clip to keep cables organized
iSonic D3800A Digital Ultrasonic Cleaner
- Tank Material: Stainless steel, Tank Size (Oval): 6.1 x 3.7 x 2.0 in.
- Tank Volume: 0.6L (1.3 pints), Ultrasonic Frequency: 42,000 Hz
- Power: AC110V, 35W, Timer Settings: 180, 280, 380, 480, 90 seconds
- Accessories Included: Plastic basket

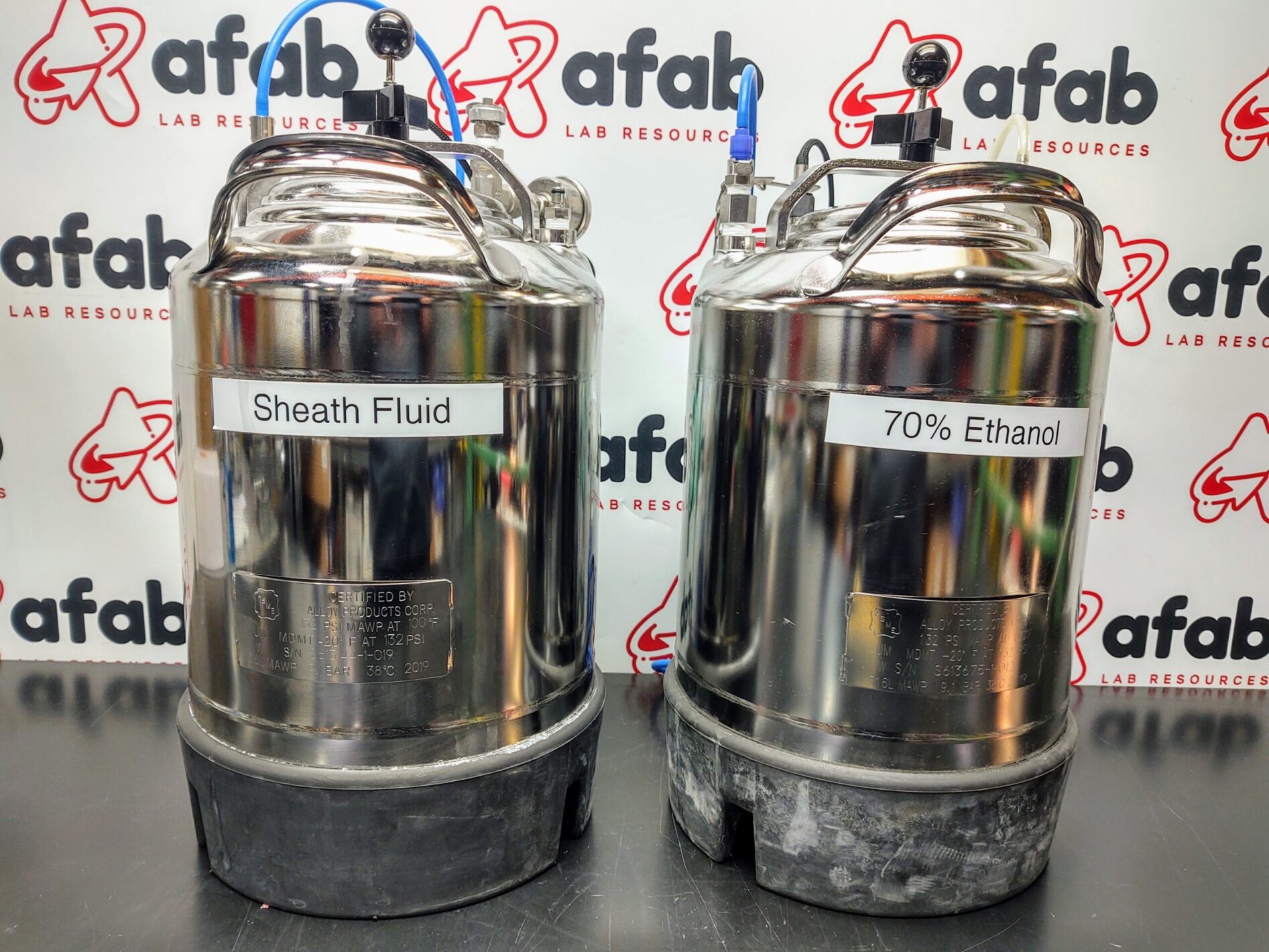

Sheath Tank Assembly
- The two 5L Sheath Tank Assemblies ensure a continuous flow of sheath fluid, which is essential for maintaining the sample stream during cell sorting.
- The sheath fluid surrounds the sample stream, allowing precise alignment and focusing of laser beams for optimal signal generation and detection.
