Description

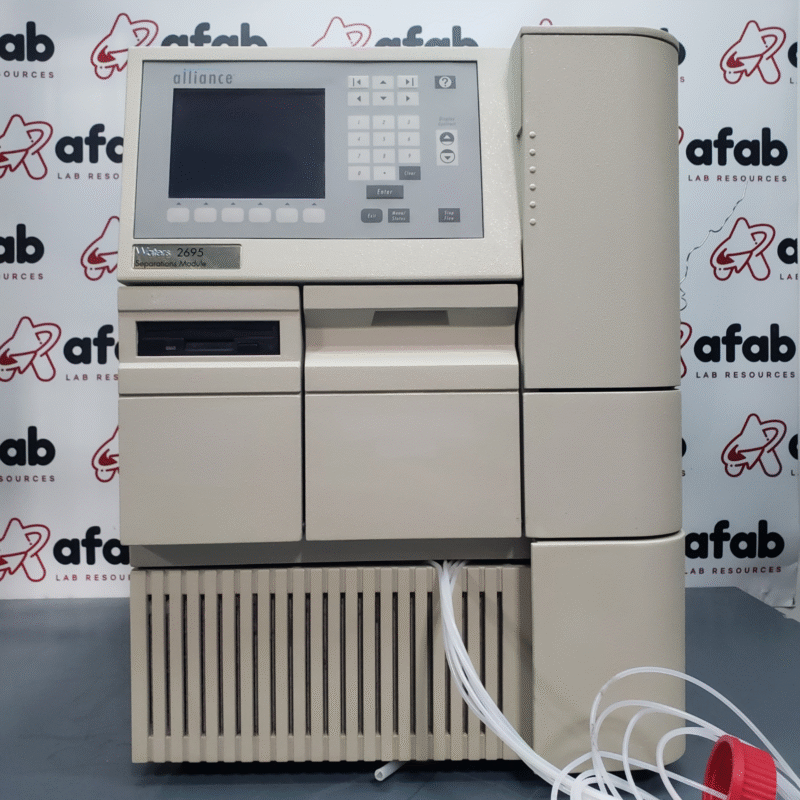

Waters Alliance 2695 HPLC Separations Module
- Operating Temperature: 4 to 40°C (39 to 104°F)
- Relative Humidity: 20 to 80%, noncondensing
- Acoustic Noise: <65 dB(A)
- Power: 950 VA (maximum), 85 to 132 Vac or 180 to 250 Vac, 47 to 63 Hz
- Effective System Delay Volume: <650 µL
- Plunger Seal Wash: Integral, active, programmable
- Dry Prime/Wet Prime: Automatic, front panel control
- Flow Ramping Time: (0.01 to 30.00 min in 0.01-min increments) to reach max. flow rate
- Maximum Operating Pressure: 5000 psi (345 bar)
- Pressure Ripple: ≤2.5%
- Composition Range: 0.0 – 100.0 in 0.1% increments
- Composition Accuracy: ±0.5% absolute
- Composition Precision: ≤0.15% RSD or ≤0.02 min SD
- Flow Precision: ≤0.075% RSD or ≤0.02 min S
- D Flow Accuracy: ±1% or 10 µL/min
