Description

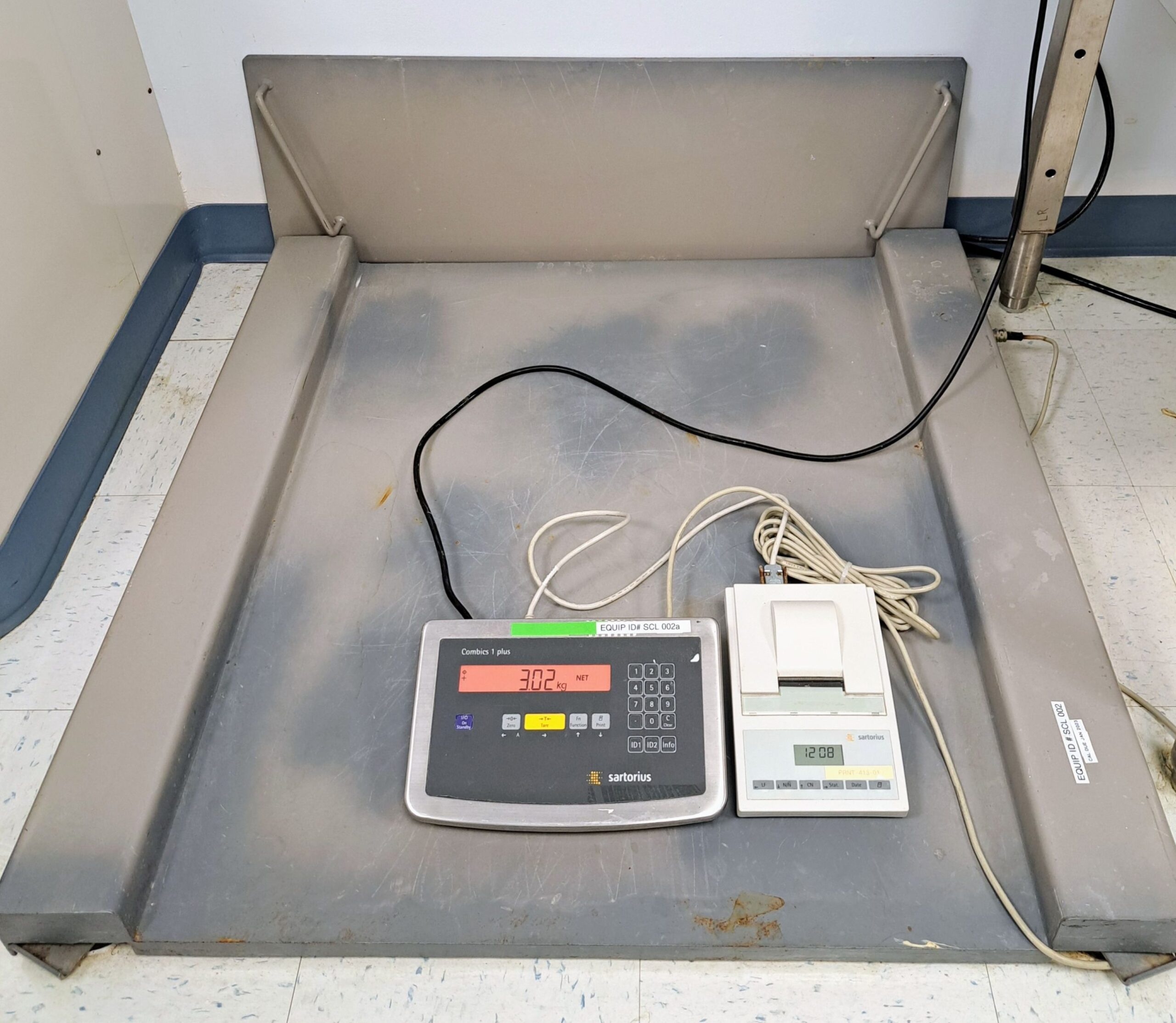

Sartorius IFP4-300LI-I Flat-Bed Weighing Platform w/ Indicator & Printer
This item comes with a 30-Day Limited Warranty
This instrument is in good working order and was removed from working environment. Weighing Platform comes with Sartorius Combics 1 Indicator (CSL1N-U) and Sartorius (YDP03-OCE) data printer.
Sartorius Flat-Bed Industrial Weighing Platform IFP4-300LI-I
- Material: Painted steel
- Platform Dimensions: Width × Depth: 1000 mm × 800 mm (approx. 39.4 in × 31.5 in)
- Capacity: 300 kg (approx. 660 lb)
- Readability: 0.01 kg (approx. 0.02 lb)
- Platform Height: 25 mm (ultra-low profile for easy loading)
- Protection Class: IP67/IP68 depending on configuration (dust and water resistant)
- Load Cells: Strain-gauge type, typically 4-point support
- Surface Finish: Painted steel (stainless steel versions also available)
- Applications: Counting, filling, dosing, formulation, statistical process control
- Low Profile Design: Eliminates the need for pit installation.
- Hygienic Construction: Easy to clean, suitable for wet environments.
Sartorius Combics 1 Indicator CISL1N-U
- Display: Large backlit LCD with high-contrast segments for clear visibility.
- Housing: Stainless steel, IP65-rated for dust and water resistance.
- Power Supply: 100–240 V AC, 50/60 Hz., Operating Temperature: 0°C to +40°C.
- Mounting Options: Tabletop, wall, or column mounting.
- Standard Interface: RS-232C
- Data Output: Configurable printouts, SBI data output, and barcode scanner support.
- Weighing Modes: Standard weighing, Checkweighing, Counting, Totalizing, Averaging (e.g., animal weighing), Classification, Weighing in percent, Net-total formulation
- Calibration: Internal and external calibration supported
- Password Protection: Menu access can be restricted
- Audit Trail Counter: Tracks calibration and configuration changes
- Keys: Large keys with tactile feedback, Numeric keypad for tare and ID input
- Menu Navigation: Intuitive operating menu with password protection, Configurable parameters for weighing and printing
Sartorius Data Printer YDP03-0CE
- Print Width: 57.5 mm
- Characters per Line: Up to 24
- Power Supply: Operates via the connected balance or external AC adapter
- Battery Type: Rechargeable AA NiCd batteries (UM-3, Sartorius order no. 69Y03136)
- Display: LCD showing date/time and transaction number
- Real-Time Clock: Built-in for timestamping data
- Interface: RS-232 serial connection to Sartorius devices
- Data Printout: Individual weighing results, Date and time, Consecutive transaction numbering
- Statistical Evaluation: Number of weighing operations, Mean value, Standard deviation, Variation coefficient, Minimum and maximum values, Difference between max and min
- Compliance: ISO/GLP-compliant printouts, Suitable for legal metrology in the EU
- Manual or Automatic Data Transfer: Via key press or auto mode
- Maintenance: Easy paper roll and ink ribbon replacement, Battery charging via balance or external power
r/b – NE002547 R4 C2
