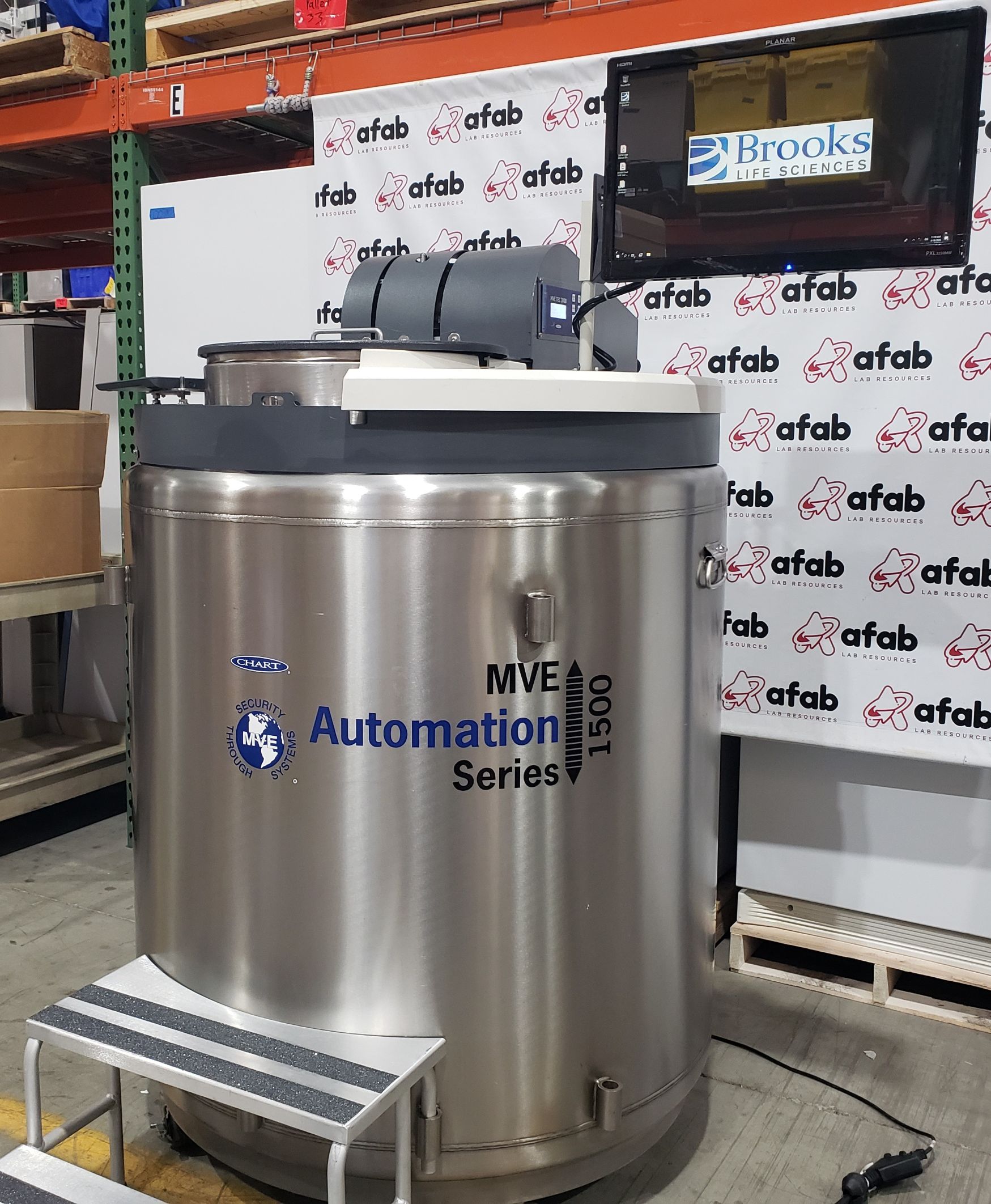

MVE 1500 Automation Ready Cryogenic Freezer
This unit is in very good condition. Retrieved from working lab. Missing Vacuum Warranty Seal (missing cap on the top of tank) Powers on, software is in place. We will nitro test prior to shipping. This unit comes with stepping platform, Chart MVE TEC 3000 indicator, 18 freezer racks and 18 rack inserts.
-
- MVE cryogenic freezers are designed to operate in environments with an atmospheric pressure range of 8.2 psi (57.2 kPa) to 14.7 psi (101 kPa).
- MVE cryogenic freezers are designed to be operated in environments near room temperature (65°F – 80°F, 18°C – 27°C) and relative humidity below 50%.
- Storage Capacity: Up to 94,000 0.5 mL straws or 39,000 2.0 mL vials
- Temperature Range: Maintains -190°C or colder in liquid nitrogen vapor phase
- LN₂ Capacity: Approximately 1500 liters
- Neck Opening: Around 25 inches (635 mm)
- Dimensions: Height: ~60–70 inches
- Diameter: ~40–50 inches
- Weight: Empty: ~500–600 lbs. Full: ~2000+ lbs (with LN₂)
- Automation Ready Features:
- Compatible with robotic vial handling systems
- Integrated ports and sensors for automation
- Enhanced insulation and vapor phase storage
- Intel® NUC 13 Extreme computer with Core i3 processor.
- Planar PXL2230MW 22″ Touch Screen Monitor.
- Includes 18 inserts for Cryo racks
