Description
Eppendorf BioFlo 320 Benchtop Bioreactor System

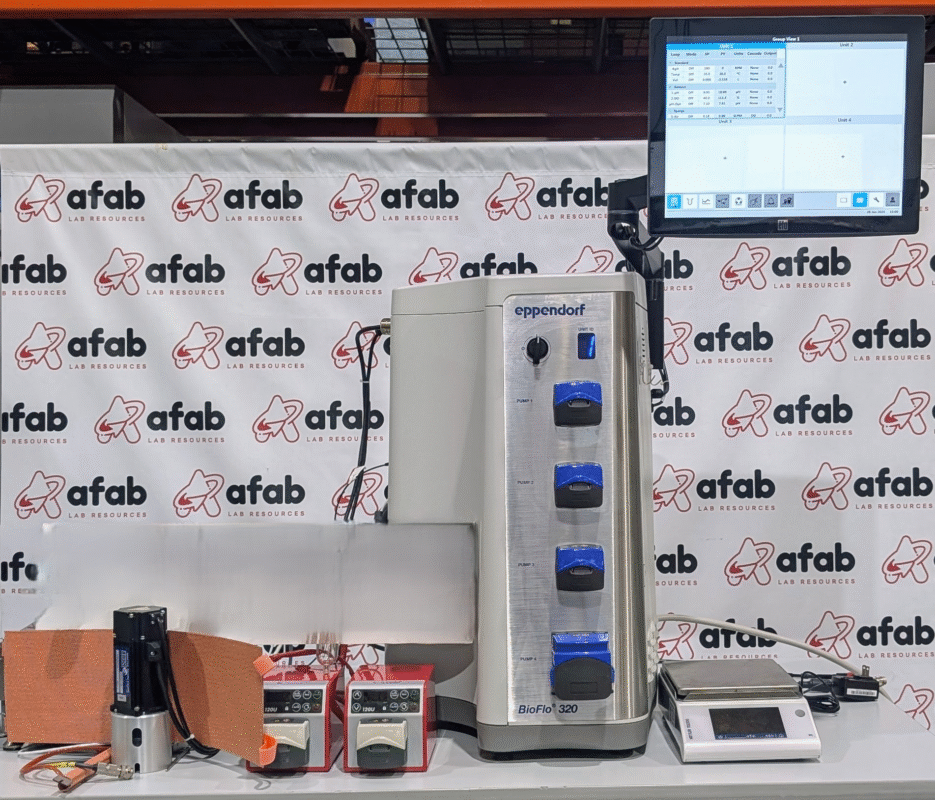

This system came to us as a functioning set up. Sale is for the BioFlo 320, Mag Motor, Mettler Toledo ML6002T balance, (or MS4002TS balance), B-TEK 300 lb scale, 2 Watson Marlow 120U/DV pumps and all connective tubing, cords, etc. 3 sets in stock. No vessels are available. Please see pics for accessories included. Feel free to contact us with any questions.
BioFlo 320 (M137900782)
- The Eppendorf BioFlo 320 is a versatile bioprocess control station designed for bench-scale applications.
- Dimensions: 40.6 cm (16 in) length, 40.6 cm (16 in) width, 66.0 cm (26 in) height, and weighs 32 kg (70 lb.)
- Touchscreen: 15 in (38.1 cm) projected capacitive touchscreen.
- Connections: 2 x USB (software updates, serial communication), Ethernet (SCADA, IP Network).
- Operating Conditions: 10 – 30 °C, up to 80% RH, non-condensing.
- Altitude Limit: 2000 m.
- Utility Connections: IEC water, stainless steel quick-connect to 3/8 in ID silicone tubing.
- Vessel Types: Direct drive (rpm: 25 – 1200), Magnetic drive (rpm: 25 – 500).
- Temperature Range: Water jacketed (5 °C above coolant to 55 °C above ambient), Dished bottom (5 °C above coolant to 65 °C above ambient), BioBLU ‘c’ single use (5 °C above ambient to 40 °C).
- Sensor Type: PT100, Oxygen, Nitrogen, Carbon Dioxide, Exhaust.
- Gas Flow Control: Up to six integrated pumps, highly configurable gas flow control.
- Compatibility: Suitable for glass and BioBLU Single-Use Bioreactors.
- Applications: Cell culture, fermentation, production of cells, secreted proteins, viral vectors, plasmids, and small molecules.
Watson Marlow 120U/DV Peristaltic Pump (2 Pumps Included)
- The Watson-Marlow 120U/DV is a peristaltic pump designed for precise and reliable fluid handling.
- Pump Head: 114DV for continuous tubing.
- Flow Rate: 0.002 – 190 ml/min (0.00002 – 3.04 USGPH).
- Speed Control: 0.1 – 220 rpm.
- Operating Pressure: Up to 2 bar (30 psi).
- Operating Temperature Range: 5 – 40 °C (40 – 104 °F).
- Weight: 1.5 kg (3.3 lbs).
- Ingress Protection: IP31, NEMA 2.
- Noise Level: < 60 dB(A) at 1 m.
- Max Altitude: 2000 m.
- Power Supply: 24 VDC mains transformer plug (90-264 VAC, 47-63 Hz)
- Materials of Construction: Stainless steel bearings and drive shaft, ABS plastic drive casework, polyester keypad/HMI, Grilamid PA12, IXEF PARA pump head body assembly, PTFE-filled PBT pump head roller assembly, IXEF PARA pump head rotor assembly, stainless steel pump head track, and springs.
Mettler Toledo ML6002T Precision Balance (2 sets come with this balance)
- Precision balance designed for reliable and accurate weighing tasks.
- Maximum Capacity: 6.2 kg (13.67 lbs).
- Readability: 0.01 g (10 mg).
- Repeatability: 0.007 g (7 µg).
- Settling Time: 1.5 seconds.
- Interfaces: Bluetooth (optional), Ethernet (LAN), RS232 (integrated/optional), USB-A (to device), USB-B (to device).
- User Management: Password protection, user rights.
- Display: 4.5″ color TFT touchscreen.
- Additional Features: FACT automatic internal adjustment, guided leveling, battery operation, 15 languages, 10 integrated applications, error-free results documentation, mains and battery operation.
OR
Mettler Toledo MS4002TS Precision Balance (1 set comes with this balance)
- Capacity: 4,200 x g
- Readability: 0.01 g
- Stabilization Time: 1.5s
- Display: 7 in, color touch screen
- Pan Size: 6.69 x 7.87 in.
- Power: AC Adapter
Elo ET1515L-2UWC-O-GY-RHMR Touchscreen Monitor
- 15-inch touchscreen monitor.
- Diagonal Size: 15 inches (38.1 cm). Aspect Ratio: 4:3
- Resolution: 1024 x 768 (supports other resolutions like 800 x 600, 640 x 480, etc.)
- Touch Technology: AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW).
- Active Area: 12.0″ x 9.0″ (304 mm x 228 mm).
- Brightness: 250 nits (typical).
- Viewing Angle: Horizontal: ±80° or 160° total, Vertical: 70°/80° or 150° total.
- Number of Colors: 16.2 million.
- Contrast Ratio: 800:1.
- Response Time: 8 ms (typical).
- Interfaces: Dual/Serial USB, VGA, RS232, optional Ethernet.
Magnetic Drive Motor EMS60C-C1
- Servo Motor, Magnetic Coupling
Eppendorf Heat Blanket SR16537
-
- For individual temperature control of DASGIP vessels.
- 10L Vessel (not included)
- Heating power: 195 W
- Power supply: 120 or 240 V
