Wave Biotech BASE200EH Wave Bioreactor

Description

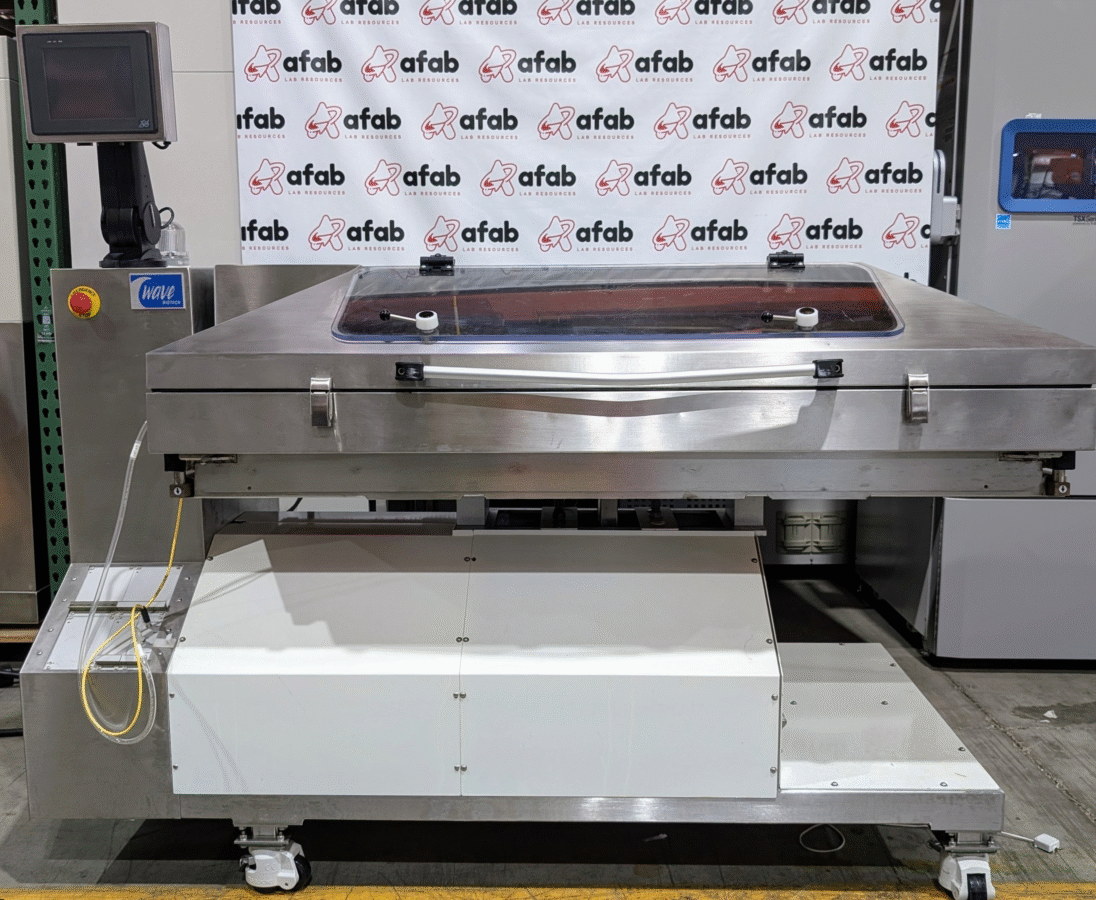

Wave Biotech BASE200EH Wave Bioreactor

The WAVE Bioreactor 200 system comprises integral rocking, temperature, weight, and airflow controllers. The self-contained system is designed for use with working culture volumes of 10 to 100 L in applications such as inoculum scale-up, R&D, commercial production, vaccine production, and antibody manufacture.

• • Touch panel operator interface
  • Direct drive electronic linear motor
  • Adjustable rocking rate from 4 to 25 rocks/min with acceleration control
  • Adjustable rocking angle from 2° to 9°
  • Integral temperature controller with heater. Integral weight controller
  • Integral airflow controller Integral PID controller for automatic temperature, O2 , CO2 , DO, and pH adjustment
  • Real-time data monitoring RS-485 MODBUS communications port
  • 10Base-T Ethernet communications port
  • Remote alarm contact and printer interface
  • Stainless-steel containment enclosure
  • Dimensions (L × W × H) Base unit: 1852 × 1096 × 1120 mm (73 × 43 × 44 in)
  • Weight (empty) 350 kg (780 lb)
  • Utilities Voltage: 100-120/220-240 VAC
  • Frequency: 50/60 Hz
  • Maximum current: 15 A
  • Power: 12 KVA
  • Indoor use
  • 5°C to 40°C
  • Up to 80% maximum relative humidity (rh) at 31°C decreasing linearly to 50% rh at 40°C
