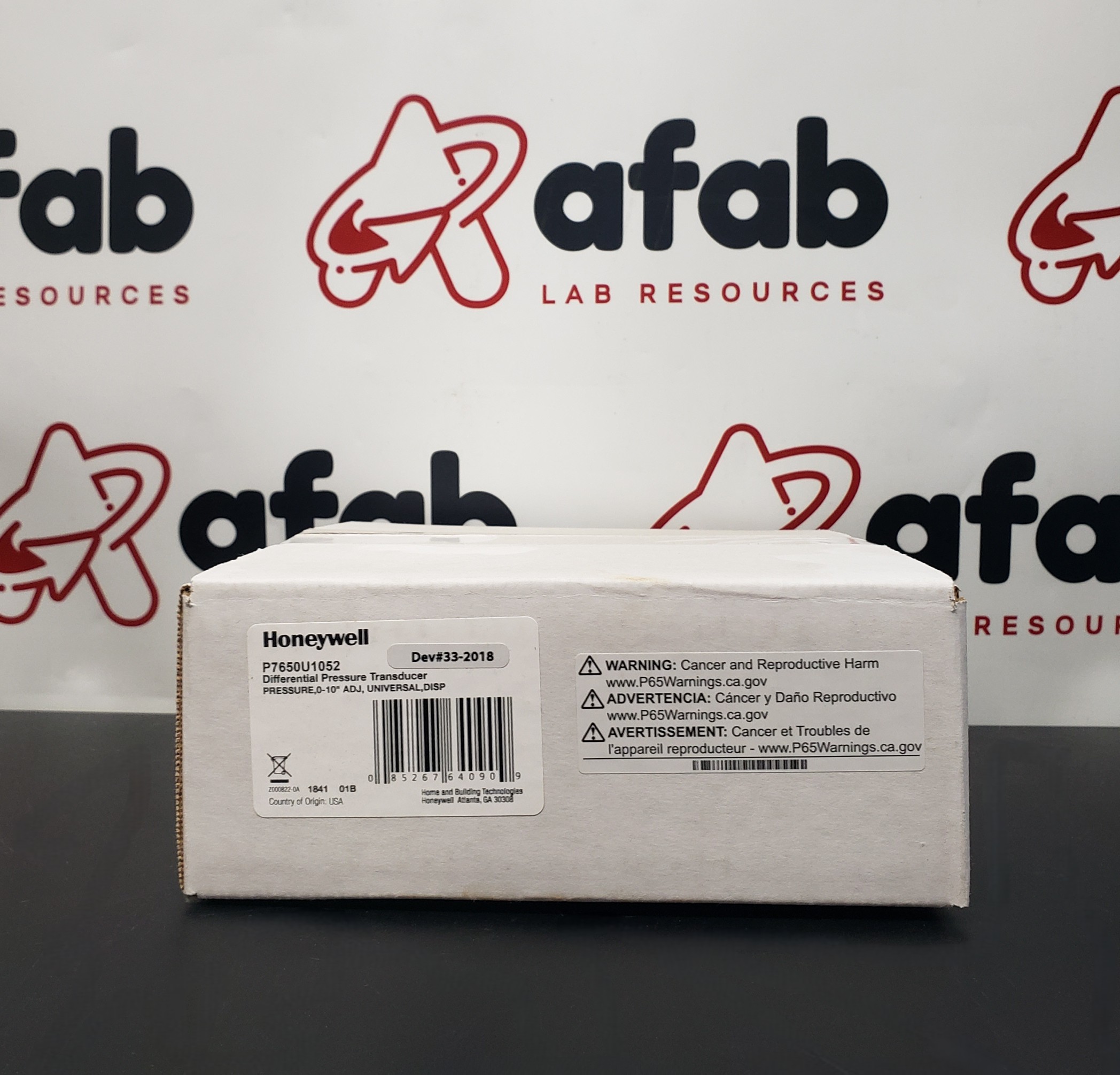

Honeywell P7950U1052 Differential Pressure Transducer
This item comes with a 30-Day Limited Warranty
- Mounting: Universal
- Selectable w.c. Pressure Range, Uni or Bi-Directional: +/-0-.1″, 0-.25″, 0-.5″, 0-1″, 0-2″, 0-5″, 0-10″ in. w.c. or +/-0.25, 0.5, 1.0, 2.5 kPa; or +/-25, 50, 100, 250 Pa Selectable
- Velocity Mode: 500/1,000/2,000/3,000/4,000/ 5,000/6,000/7,000 FPM 2.5/5/10/15/20/25/30/35 MS
- Display: Yes
- Output: 0-10Vdc, 0-5Vdc, and 4-20mA Selectable
- Supply Voltage: 12-30Vdc or 24Vac
- Response Time: Standard: T95 in 20 sec Fast: T95 in 2 sec, DIP switch selectable Mode: Unidirectional or bidirectional, DIP switch selectable
- Display (option): Pressure mode: Signed 3-1/2-digit LCD, indicates pressure, overrange indicator Velocity mode: Signed 4-1/2-digit LCD, indicates velocity, overrange indicator Proof Pressure: 3 psid (20.6 kPa)
- Burst Pressure: 5 psid (34.5 kPa)
- Pressure Mode Accuracy: ±1% F.S. (combined linearity and hysteresis)
- Velocity Mode Accuracy: ±90 FPM (±0.45 MS) plus 5% of measured value4 Temperature Effect: 1” (250 Pa) models: 0.05%/°C; 10” (2.5 kPa) models: 0.01%/°C (Relative to 25 °C) 0 to 50 °C (32 to 122 °F)
- Zero Drift (1-year): 1” (250 Pa) models: 2.0% max.; 10” (2.5 kPa) models: 0.5% max. Zero Adjust: Pushbutton auto-zero and digital input (2-pos terminal block)
- Operating Environment: 0 to 60 °C (32 to 140 °F)
- Altitude of Operation: 0 to 3000 m
- Pollution Degree: 2
- Humidity Range: 100% RH, non-condensing
- Mounting Location: For indoor use only.
- Fittings: Brass barb; 0.24” (6.1 mm) o.d.
- Environmental Rating: IP65, NEMA 4
- Flammability Rating: Plastic enclosure is UL 94 5VA fire retardant ABS
r/rk – 010061 – RC K
