Description
Dell WD19TBS Thunderbolt Docking Station – NEW

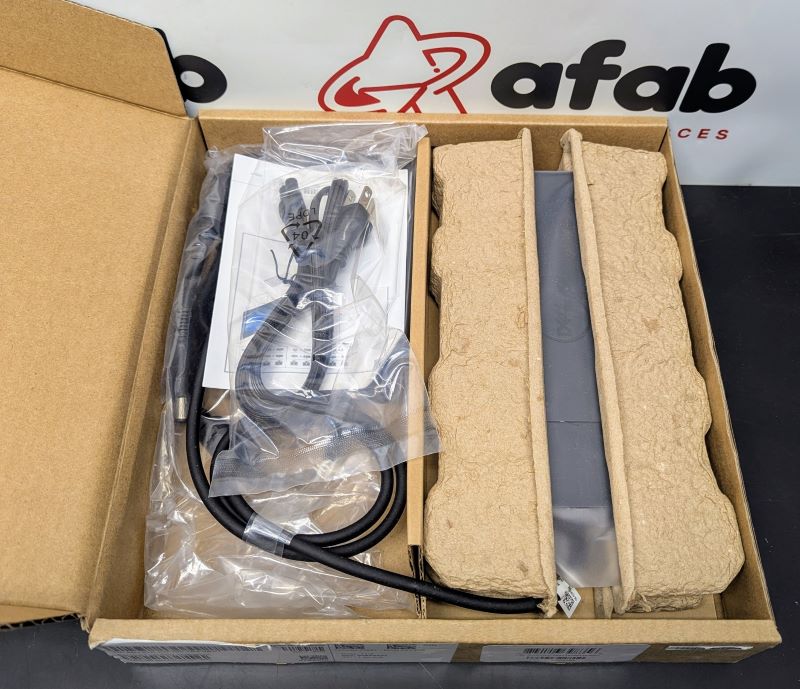

These docking stations are new, unused. 7 in stock, 4 boxes have been open, but all contents accounted for, 3 boxes are factory sealed.
The Dell Thunderbolt Dock WD19TBS is a high-performance docking station designed to connect multiple peripherals and up to 3 displays (including dual 4K) to a laptop via a single Thunderbolt 3 (type C) cable. It provides up to 130W of power delivery to compatible devices and features a variety of ports, including DisplayPort 1.4, HDMI 2.0 and USB-C.
-
- Standard: Thunderbolt 3 (Type-C)
- Video Ports: USB 3.2 Gen2 Type-C with DisplayPort 1.4 or HDMI2.0 x1 ~ DisplayPort++ 1.4 x2 ~ Rear Thunderbolt 3 (Type-C), when connected to a Thunderbolt 3 host.
- Network Port: Gigabit Ethernet (RJ-45) x1 ~ Support Wake On LAN from S3, S4, or S5 sleep state with select Dell systems. ~ Support MAC Address Pass-Through with select Dell systems.
- USB Ports: Front USB 3.2 Gen1 x1: Dell PowerShare BC1.2; 2 A @ 5 V (max 10 W) ~ Front USB 3.2 Gen2 Type-C: 1.5 A @ 5 V (max 7.5 W) ~ Rear USB 3.2 Gen1 x2: 0.9 A @ 5 V (max 4.5 W) ~ Rear USB 3.2 Gen2 Type-C with DisplayPort 1.4 x1: 1.5 A @ 5 V (max 7.5 W) ~ Rear Thunderbolt Type-C Port: 3 A @ 5 V (max 15 W)
- DC-in Port: 7.4 mm DC-in port x1
- USB Type-C cable length: 0.8 m
- Power Delivery: Dell systems 130 W power capability to Dell systems with 180 W AC-adapter ~ non-Dell systems Maximum 90 W to Non-Dell system with 180 W AC-adapter
- Button: Sleep/Wakeup/Power button
- Temperature Range: Operating: 0°C–35°C (32°F–95°F)
- Non-Operating: Storage: -20°C to 60°C (-4°F to 140°F)
- Shipping: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: Operating: 10% to 80% (non-condensing) Non-operating: Storage: 5% to 90% (non-condensing) Shipping: 5% to 90% (non-condensing)
- Dimensions: 8.1 x 3.5 x 1.1 in.
- Weight: 1.37 lbs.
- VESA Mounting Options: Yes—using Dell Docking station mounting kit
- The WD19TBS model does not include a 3.5mm audio port
- Important Note: it is highly recommended to update your computer’s BIOS and the Dell docking station drivers to the latest versions for optimal performance.
