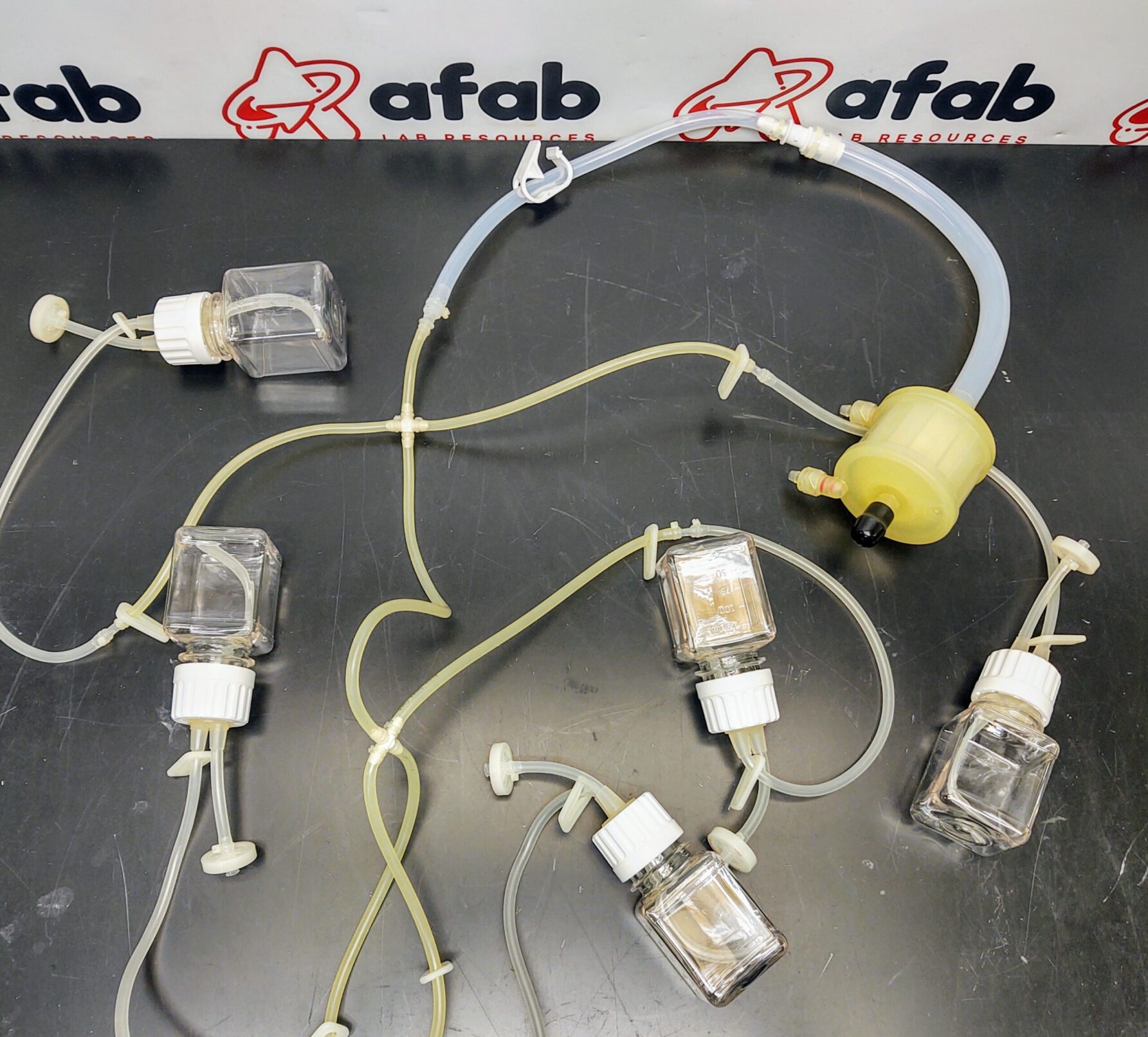

BioSciences KIT1-0125-CLS 5×125 mL FlexBottle Assy w/Sartorius 5445358M7 Midicap
- Sartorius Midicap
- Brand: Sartopore® 2 XLM
- Pack Size: 4
- Type: Size 7 | Connectors: OO
- Application: High-capacity platform for conventional sterile filtration
- Industry: Pharma / Biotech
- Modality: Media Filtration
- Inlet/Outlet Connector: 1/2″ Single Stepped Hose Barb
- Filter Size: Size 7 (0.065 m² / 0.7 ft²)
- Outer Diameter: 108.5 mm (77 mm without Connection / Valves)
- Capsule/Cartridge Format: Midicaps®
- Maximum Allowable Back Pressure: 2 bar (29 psi) at 20°C ~ 1.5 bar (21.8 psi) at 50°C
- Vent Valve: Standard
- Housing Material: Polypropylene (PP)
- Material O-ring | Seal: Silicone (SI)
- Membrane Material: Polyethersulfone (PES)
- Support Fleece: Polypropylene (PP)
- Maximum Differential Pressure: 20 °C: 5 bar, 50 °C: 3 bar
- Maximum Operating Pressure: 5 bar (72.5 psi)
- Pore Size Final-filter: 0.1 µm
- Pore Size Pre-filter: 0.2 µm
- Sterilization Procedures: Autoclaving: at 134°C, 30 min, 2 bar, min. 25 Cycles
