Description

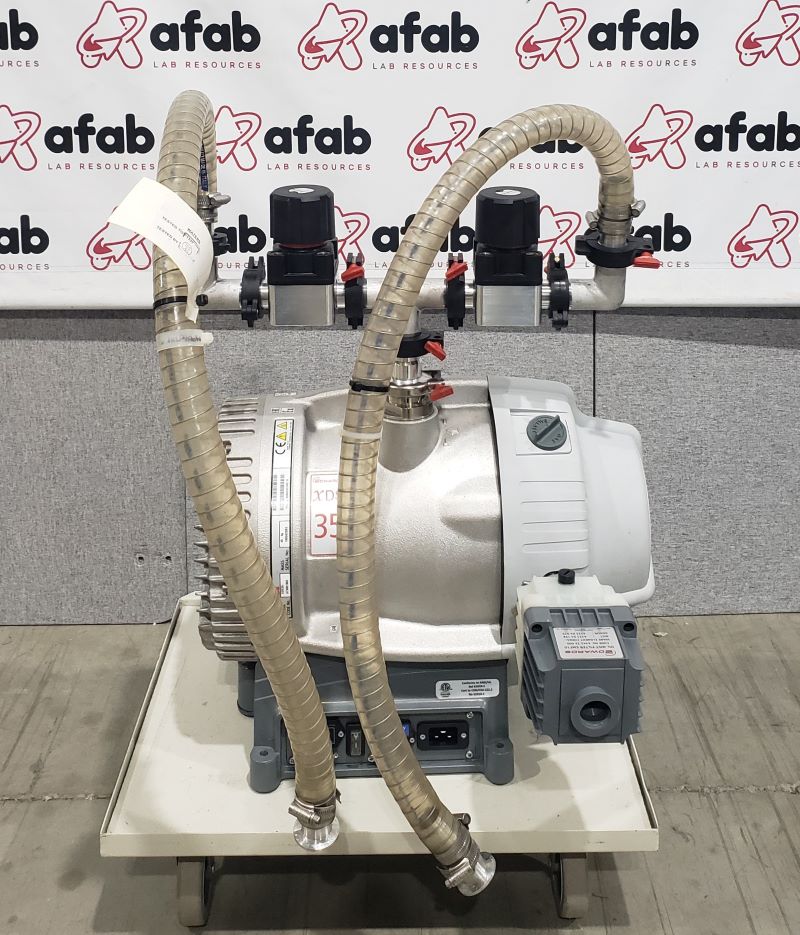

Edwards XDS35I Dry Scroll Vacuum Pump
This pump is in very good condition. We powered on, tested and runs smoothly. Dolly is not included.
-
- Peak Pumping Speed (cfm) 35 (21) m3 h-1 (cfm
- Ultimate Vacuum: 0.01 (0.008) (1) mbar (Torr)
- Ultimate Vacuum with Gas Ballast 1: 0.02 (0.015) 1 mbar (Torr)
- Ultimate Vacuum with Gas Ballast 2: < 10 (7.5) mbar (Torr
- Max Inlet Pressure for Water Vapor: 35 (23) mbar (Torr
- Water Vapor Handling Capacity GBII: 240 gh-1
- Maximum Continuous Inlet Pressure: 40 (30)(2) mbar a (Torr a)
- Maximum Gas Ballast/Purge Pressure: (psig) 0.5 (7) bar gauge (psig)
- Supply Voltage: 100-120/200-240 (+/- 10%) V
- Supply Frequency: 50/60 Hz
- Nominal Rotation Speed: 1750 rpm
- Power at Ultimate: 440 W
- Motor Power: 520 W
- Power Connector: IEC EN60320 C19
- Recommended Fuse, 230 V (115 V): 16 (3) (15) A
- Weight: 105 lbs.
- Inlet Connection: NW40
- Exhaust Connection NW25
- Noise Level at Ultimate: 57 dB(A)
- Vibration at Inlet Flange: < 4.5 mms-1 (rms
- Leak Tightness: < 1 x 10-6 (static) mbar ls-1
- Operating Temperature Range: 5 to 40 (41 to 104) °C (°F)
