Description

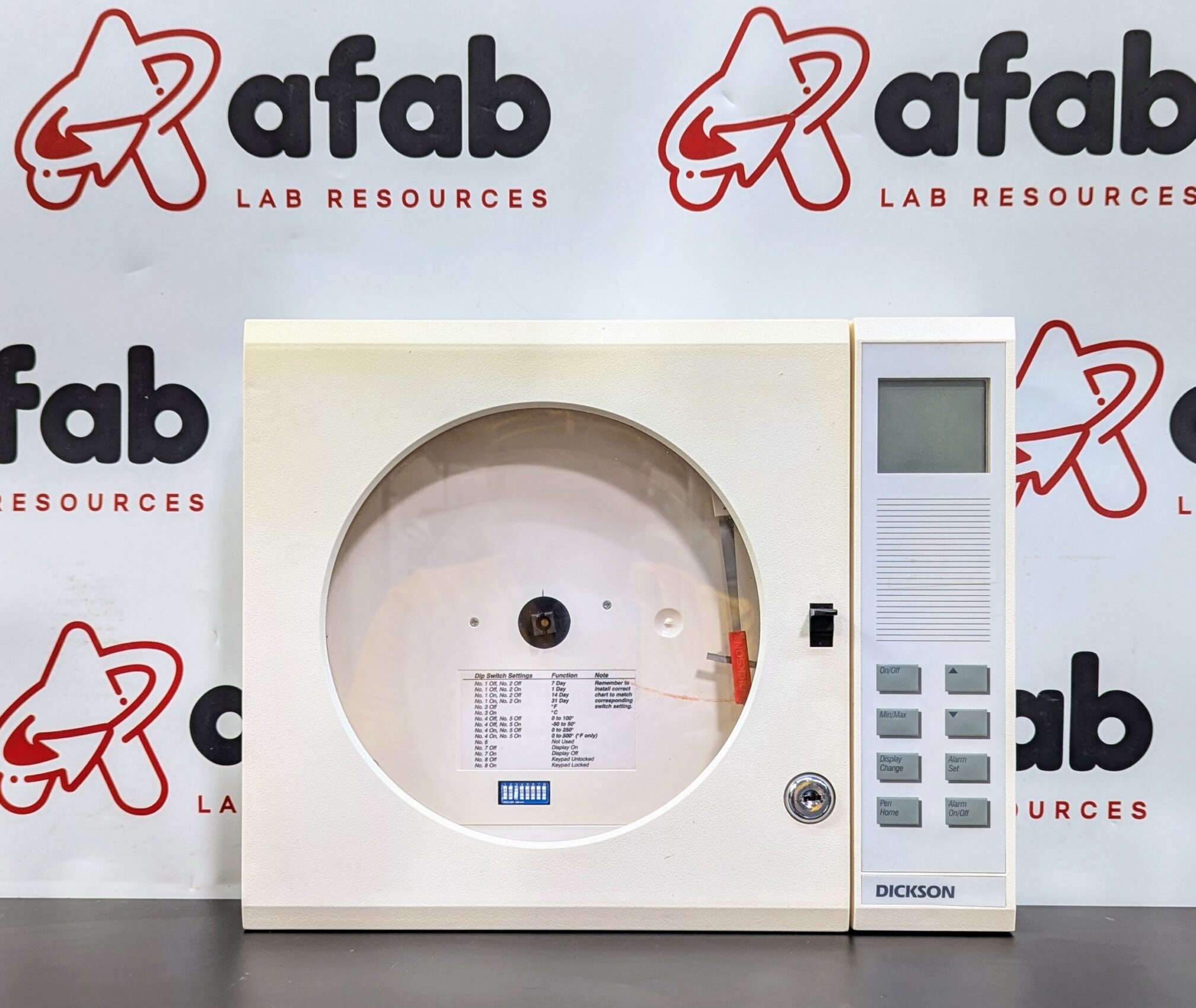

Dickson THDX Data Control System and Chart Recorder
This item comes with a 30-day Repair or Replace warranty.
Item is in Good condition. Retrieved from a working lab.
- Temperature Ranges: User Selectable: -20 to +120˚F (-20 to +50˚C), +40 to +110˚F (+5 to +40˚C)
- Temperature Accuracy: ±1.8˚F (±1.0˚C)
- Temperature Sensor:
- Thermistor Humidity Range: 0 to 95% (non-condensing)
- Humidity Accuracy: ±2% from 0 and 60%, ±3% from 60 to 95%
- Humidity Sensor:
- Monolithic IC humidity sensor
- Dew Point Range: -22 to +122˚F (-30 to +50˚C)
- Dew Point Accuracy: 95% to 30% RH ±2˚C, ±3.6˚F 30% to 10% RH ±4˚C, ±7.2˚F 10% to 5% RH ±8˚C, ±14.4˚F 5% to 0% RH ±49˚C, ±88.2˚F
- Ambient Operating Conditions: 32 to +122˚F (0 to 50˚C), 0 to 95% RH (non-condensing)
- Display Resolution: LCD, 1˚F (1˚C), 1% RH
- Chart Size: 8” (20.3 cm)
- DIA Recording Time: User selectable: 24 hour, 7 day or 31 day
- Average Response Time: 2.5 min. for 63% of full scale N
- OTE: Response time is slower when using battery Calibration:
- User calibration of all variables
bcl – 003305, 003306, 003307 R1.B3.P86
