Description

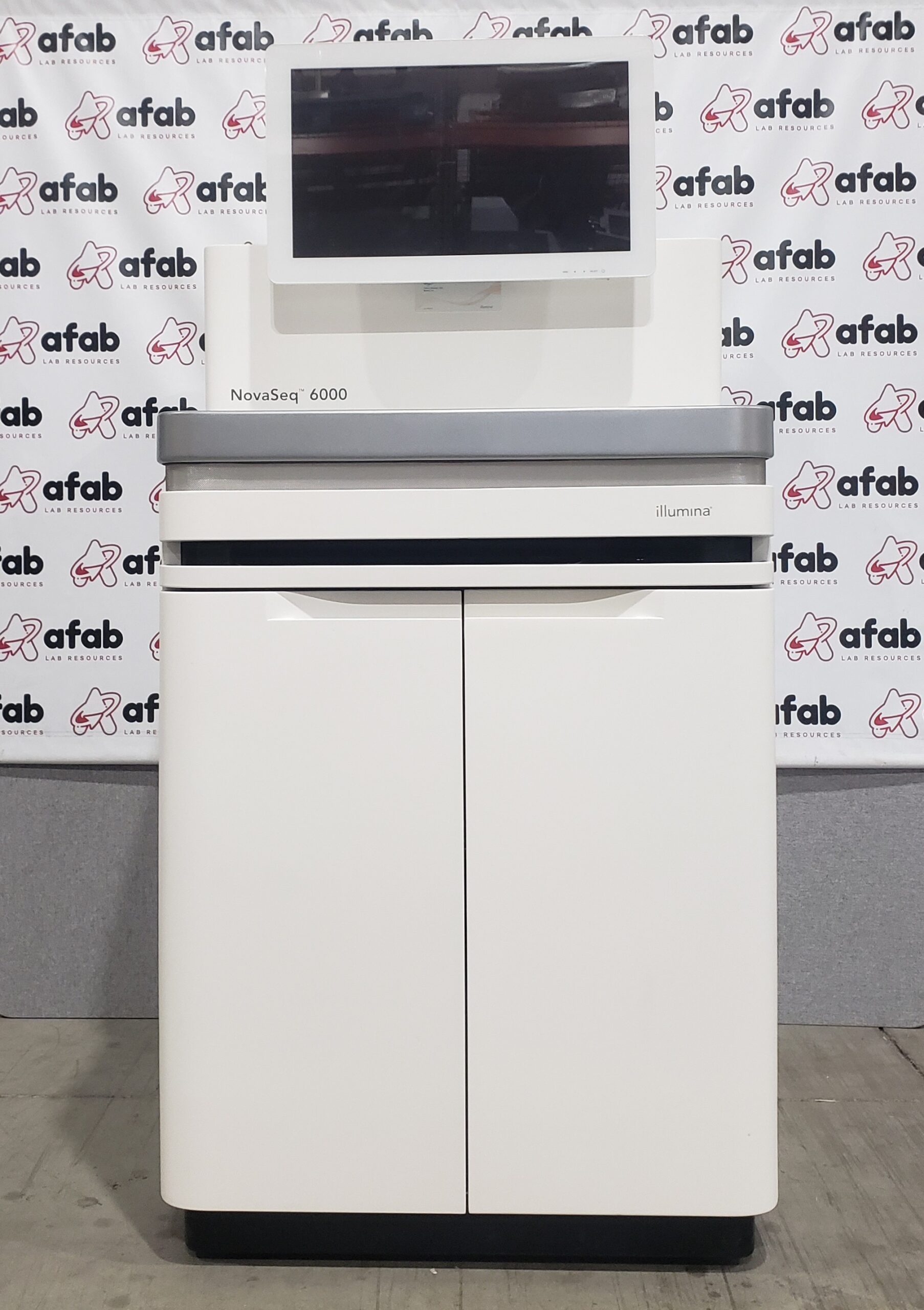

Illumina NovaSeq 6000 Sequencing System
This unit is in very good condition. Checked Instrument for proper function – working as intended. Ran minor check of software – control, real time and service software all works. Will come with all accessories shown. Will come with 60 day warranty.
The Illumina NovaSeq 6000 is a high-throughput DNA sequencing system that uses a “sequencing by synthesis” method to read the order of nucleotides in billions of DNA fragments in a single run. It can sequence entire genomes, exomes, or transcriptomes, and its scalable design allows it to handle a wide range of applications and sample outputs, from a few samples to dozens of whole human genomes per run. This system is used in research and clinical settings for applications like genetic analysis and disease research.
- Base Unit: Portwell WADE-8022 with Intel i7 4700EQ CPU
- Memory: 2 × 8 GB DDR3L SODIMM
- Hard Drive: None
- Solid-State Drive: 256 GB mSATA
- Operating System: Windows 10
- Operating environment: For Indoor Use Only
- Temperature: 19°C-25°C (22°C ±3°C), <2°C change per hour
- Humidity: 20%-80% relative humidity, non-condensing
- Altitude: Below 2000 meters (6500 feet)
- Ventilation: Maximum of 8530 BTU/h and average 6000 BTU/h
- Laser Wavelengths: 532 nm, 660 nm, 780 nm, 790 nm
- Dimensions with Monitor (W × D × H): 31.5 × 37.2 × 65.2 in.
- Weight: 1059 lbs.
- Includes 3.5 kg (7.8 lb) for leak tray and 0.9 kg (2 lb) for keyboard and mouse
- Crated Weight: 1385 lbs.
- Power Requirements: 200–240 VAC 50/60Hz, 16A, single phase, 2500 W Illumina provides a region-specific uninterruptible power supply
- Network Connection: Dedicated 1 Gb connection between the instrument and data management system. Connect directly or through network
- Bandwidth for network connection: 200 Mb/s/instrument for internal network uploads, 200 Mb/s/instrument for BaseSpace Sequence Hub uploads, 5 Mb/s/instrument for Instrument Operational Data uploads
Accessories:
- Cables
- 2 ea. Wash Flow Cells – 20016005
- 2ea. NovaSeq 6000 SP/S1/S2 Buffer Cartridge
- 2 ea. NovaSeq 6000 wash cartridge cluster
- 2 ea. NovaSeq 6000 SBS Cartridge
- Various carboys
