Description

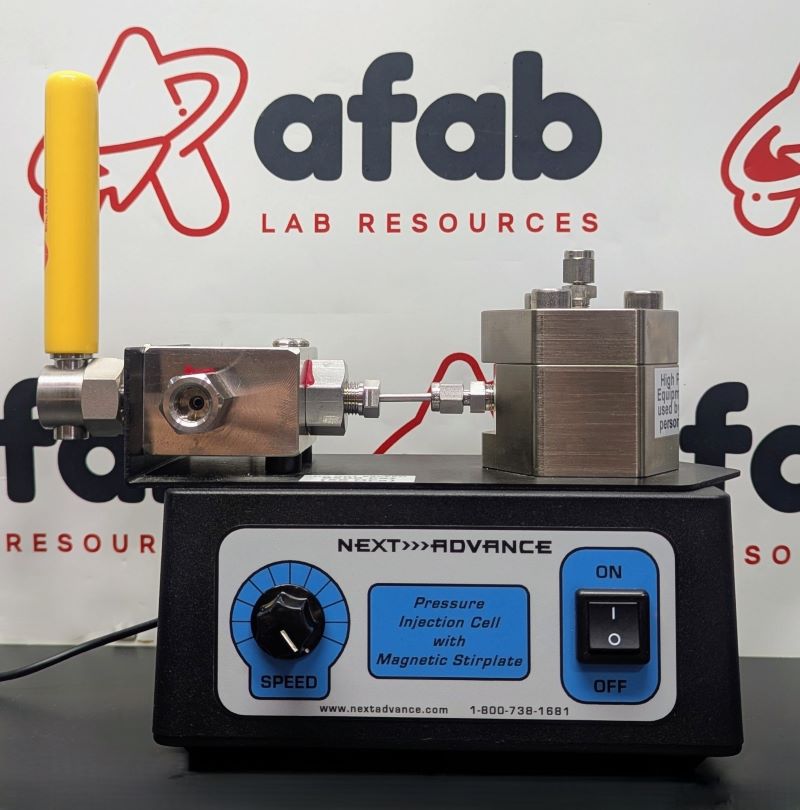

Next Advance PC8500-MAG Pressure Injection Cell
This item is in very good condition. Retrieved from working lab. We tested for power on only.
The Next Advance PC8500-MAG Pressure Injection Cell is a high-pressure capillary loader designed for packing long LC/MS columns and loading MS samples. Its defining feature is a maximum pressure rating of 8500 psi (580 Bar), coupled with an integrated magnetic stir plate to keep packing particles in suspension
-
- Maximum Pressure Rating: 8500 psi / 580 Bar (highly upgraded from the standard 2500 psi PC77 model).
- Integrated Componentry: Built-in magnetic stir plate to continuously agitate particles during capillary packing.
- Sample Tube Compatibility: Holds 0.5 mL, 1.5 mL, and 2.0 mL microcentrifuge tubes, as well as 12 x 32 mm glass vials.
- Gas Requirements: Operates via compressed gas tanks (typically Helium, Nitrogen, Argon, or dry air). It does not use mechanical pumps to drive fluid flow.
- Instrument Dimensions: 9.5 x 7.5 x 7.5 inches
- Instrument Weight: 6.5 lbs.
- Inlet Tubing Fitting Size: Configured for 1/8-inch stainless steel tubing.
- Power Requirements: The cell pressure containment requires no electrical power. However, the integrated magnetic stir plate requires a standard wall outlet power supply (supplied by the manufacturer with country-specific plugs).
- Certification: Meets CE compliance
