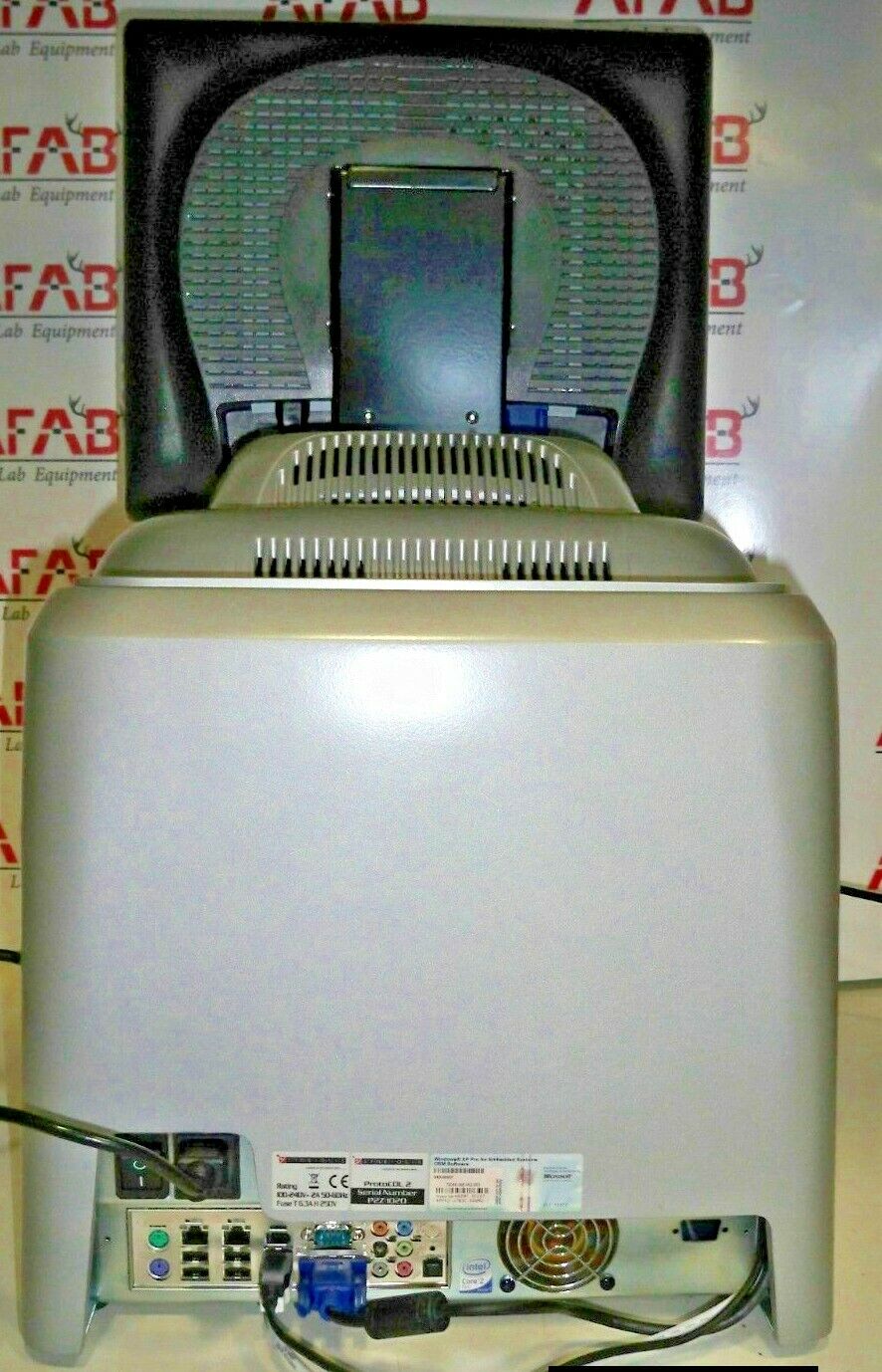

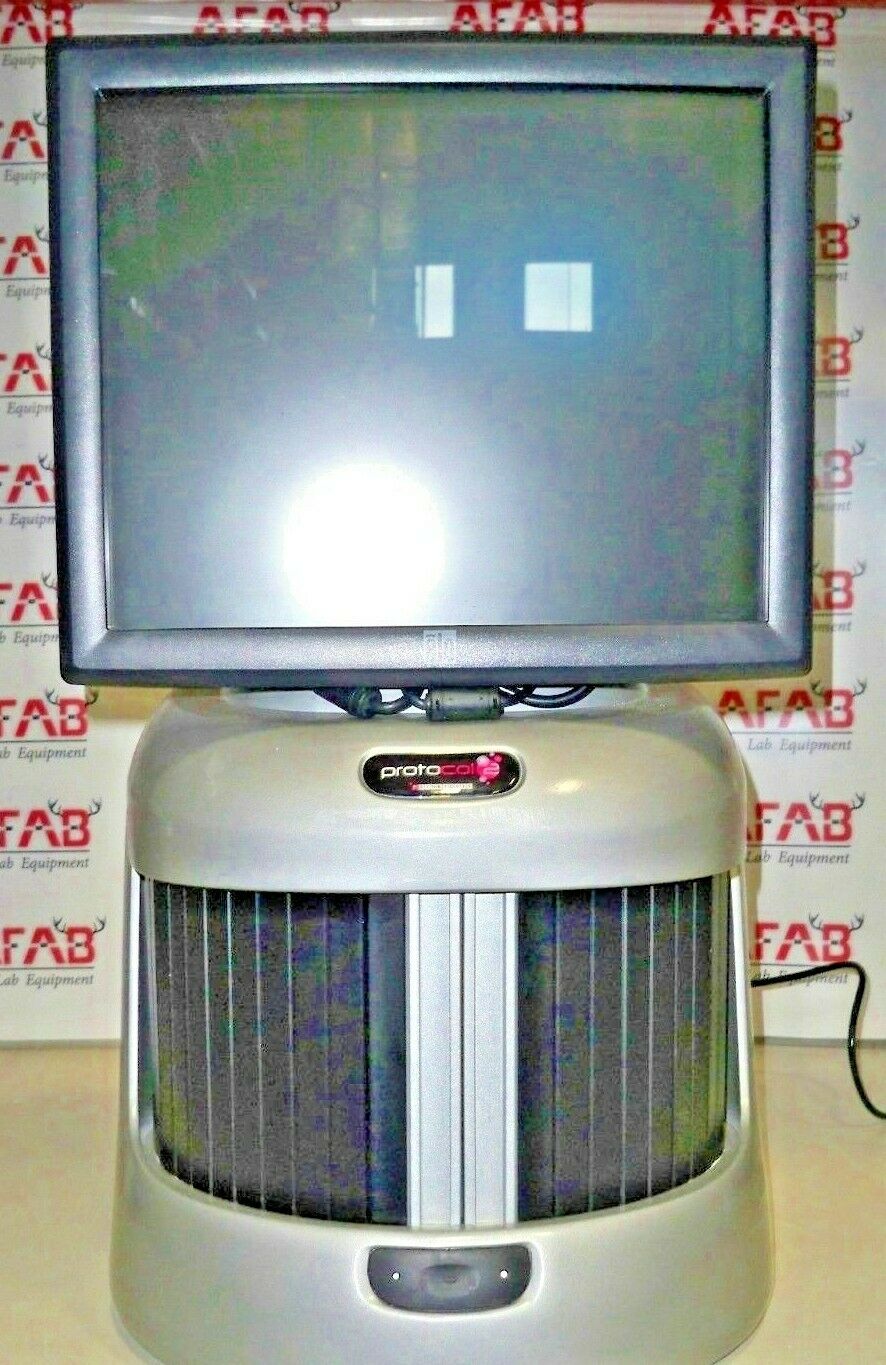

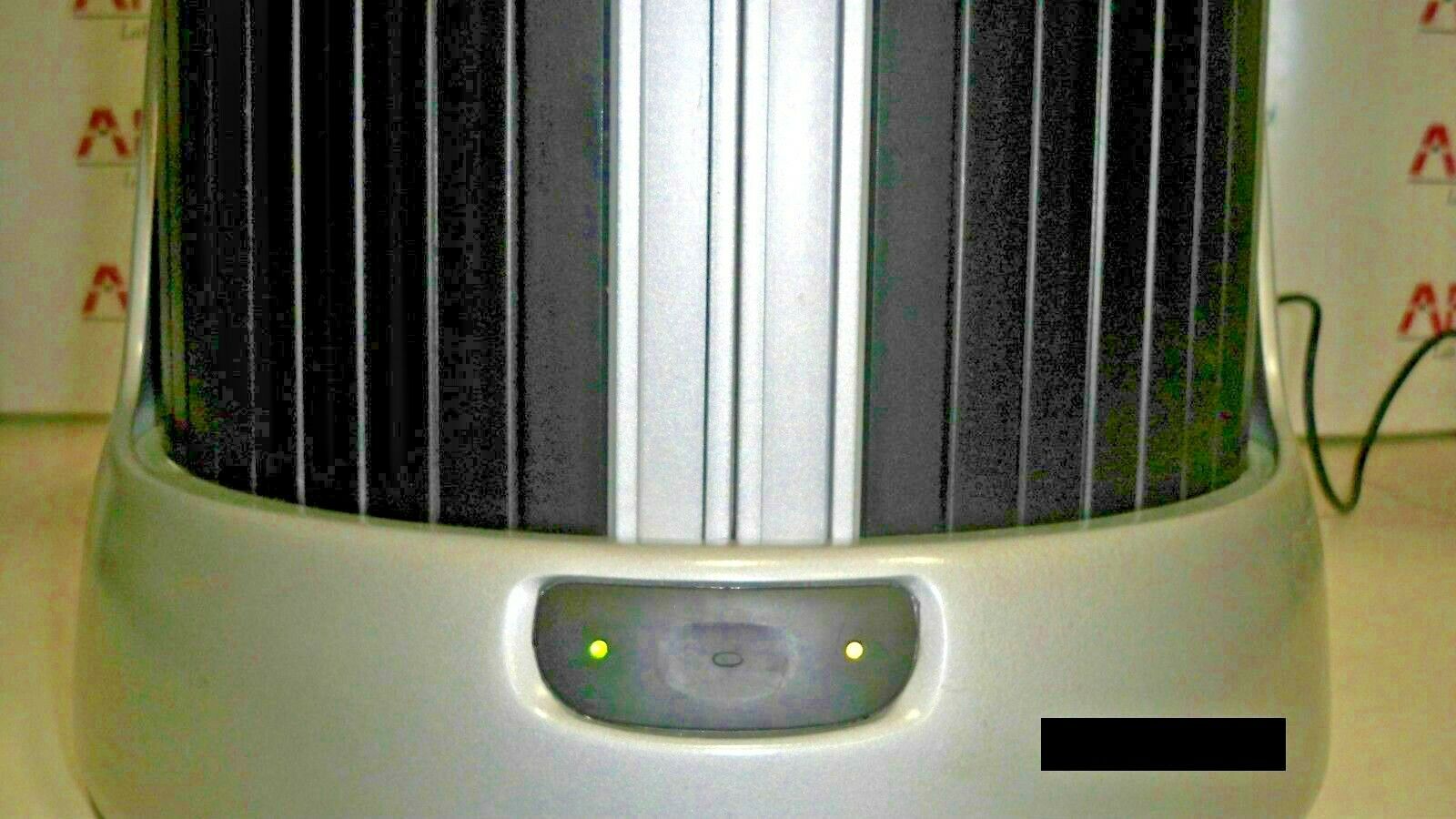

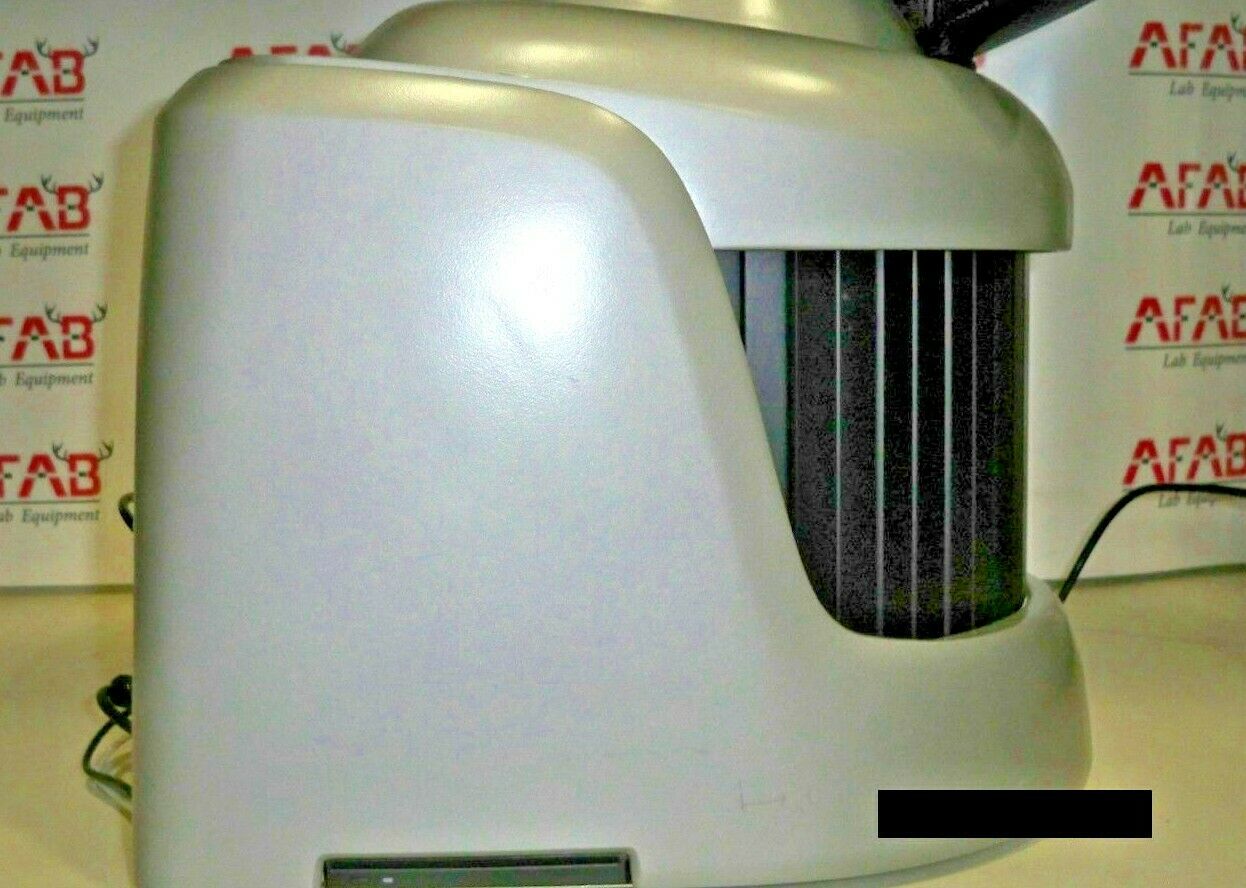

Synbiosis ProtoCOL 2 Colony Counter and Zone Sizing System

• Construction: Ergonomic housing constructed in high density foam, Integral microprocessor, Integral CCD camera and lens, 17 in mounted touch screen monitor

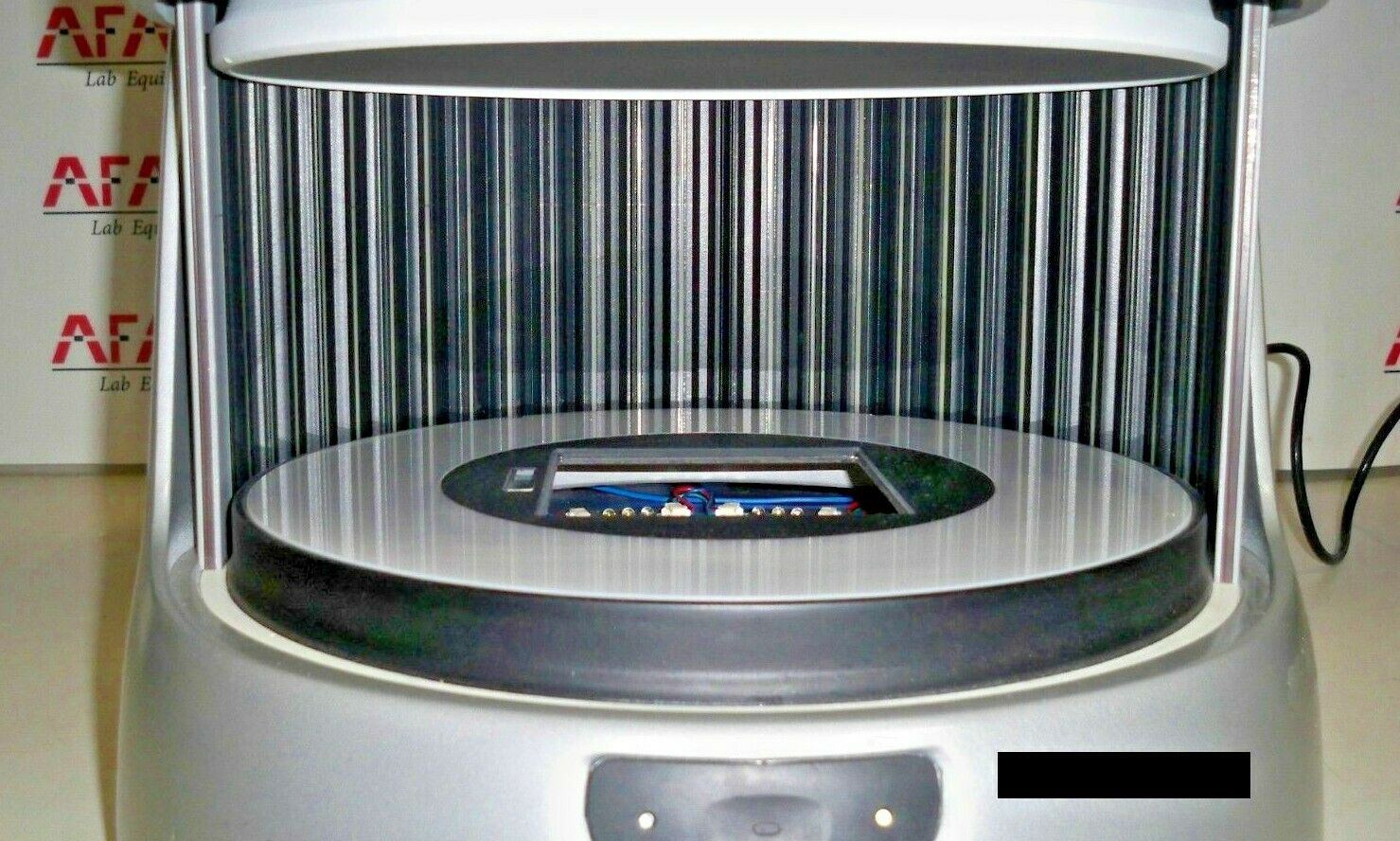

• Light Shield: 2 sliding doors to prevent excessive ambient light

• Camera: 1.4 m pixel scientific grade CCD camera, USB integral camera with f1.2 lens

• Monitor: 17 in mounted touch screen

• Resolution: For standard 90mm Petri dish, smallest detectable colony is 43 microns

• Imaging: 3 channel capture for color images

• Lighting: Unique 3 channel (red, green, blue) LED lighting (patent pending), Multi-array LED lighting (computer controlled), Lower lighting with upper reflective lighting for all applications

• Processor: Integral microprocessor, Operating system Windows XP embedded

• Storage: 120 GB minimum internal hard disk

• External connections: DVD RW, USB ports for mouse, keyboard and camera, 2 additional USB ports, External monitor connection, Ethernet, Sound output, 1394 firewire connection

• Detection mode: Fully automatic with manual over-ride

• Measurement modes: PC2 Count: Colony counting, pour plates; PC2 Zone: SRD zone sizing, inhibition zones, antibacterial susceptibility

• Count modes: Separation of touching colonies, discrimination by area, exclude areas, color mode, shape mode

• Software: Integral ProtoCOL 2 software,Touch screen input

• Database: SQL database stores all data and images
