Description
Mettler Toledo IND570 Industrial Weighing System

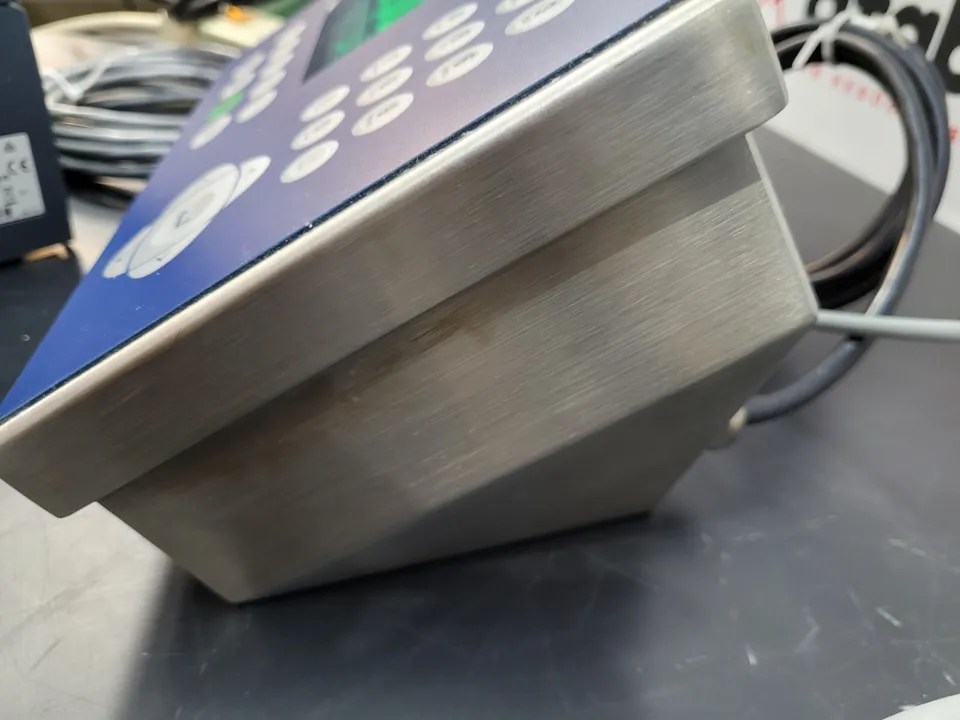

- Weighing Indicator IND570
- Panel-mount: Features a stainless steel front panel with an aluminum frame.
- Harsh environment desk/wall/column-mount: Constructed with Type 304 stainless steel enclosure
- Resolution: 100,000 displayed divisions
- Dimensions: 10.4 x 5.8 x 6.4
- Weight: 7.9 lbs.
- Keyboard: 26-key tactile keyboard, alpha-numeric keypad, scale function keys, softkeys and navigation keys for applications
- Suitable platforms / weigh modules: A/D >366 Hz, supports 1- 12 350 Ohm analog load cells, 2mV or 3mV. Digital: Supports a single IDNet platform
- Internal: 5 inputs, 8 outputs, dry contact relay, or: External: Up to 3 ARM100s, 4 inputs, 6 outputs each
- Interfaces: USB host; RS-232/RS-422/RS-485 serial port, Ethernet TCP/IP; COM2/COM3 serial ports; Analog Output; ControlNet; DeviceNet; EtherNet/IP; Modbus TCP; Profibus DP
- Mettler Toledo Dot Matrix Impact Strip Printer (8857)
- Print Speed: Approximately 3.5 lines per second at 16 characters per inch
- Copies: Up to 1 original + 2 copies or up to a total thickness of 0.008 inches
- Printhead: 9-pin
- Line Length: 2.5 inches (63 mm) with 35 columns
- Line Spacing: 6 lines per inch
- Paper Width: 3 inches (76 mm)
- Roll Diameter: 3.27 inches (83 mm)
- Fonts: 9 x 9 dot matrix default (expanded fonts through control codes)
- Character Size (W x H): 1.6 x 3.1 mm
- Power: 100 – 240 VAC / 50-60Hz
- Mettler Toledo Bench Scale (PBA430-QB60)
- Maximum Capacity: 10 lb (3 kg/6 kg); 5 kg
- Readability: 0.0005 lb (0.2 g)
- Repeatability (sd): 0.0002 lb (0.09 g)
- Material: Stainless Steel V2A (AISI 304)
