Description

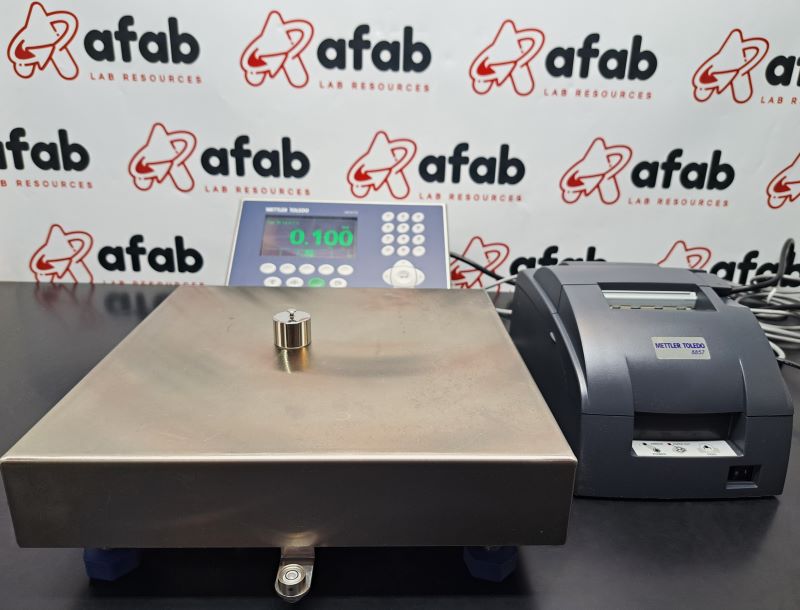

Mettler Toledo PBA430-QB3 Bench Scale, IND570 Terminal & Printer
This weighing system is in very good condition. Includes the weight platform, terminal and printer. All pieces function as intended. Please Note: calibration weight is NOT included.
Mettler Toledo Scale Platform PBA430‑QB30
- Product Type: Stainless‑steel bench scale platform
- Maximum Capacity, 50 lbs. (15 kg / 30 kg)
- Readability (Certified), 0.01 lb. (5 g / 10 g)
- Repeatability (typical), 0.2 g (0.00044 lb.)
- Load Plate: Electropolished, dishwasher‑safe (except 600×800 mm variants)
- Load Cell: Hermetically sealed, IP69k protection (high‑pressure washdown), Suitable for harsh, wet cleaning environments.
- Overall Protection Rating: IP69k & IP68
Mettler Toledo IND570 Terminal
- Resolution: 100,000 displayed divisions
- Dimensions: 10.4 x 5.8 x 6.4
- Weight: 7.9 lbs.
- Keyboard: 26-key tactile keyboard, alpha-numeric keypad, scale function keys, softkeys and navigation keys for applications
- Suitable platforms / weigh modules: A/D >366 Hz, supports 1- 12 350 Ohm analog load cells, 2mV or 3mV. Digital: Supports a single IDNet platform
- Internal: 5 inputs, 8 outputs, dry contact relay, or: External: Up to 3 ARM100s, 4 inputs, 6 outputs each
- Interfaces: USB host; RS-232/RS-422/RS-485 serial port, Ethernet TCP/IP; COM2/COM3 serial ports; Analog Output; ControlNet; DeviceNet; EtherNet/IP; Modbus TCP; Profibus DP
Mettler Toledo 8857-0001 Printer
-
- Type: Dot matrix impact strip printer
- Operating Temperature: 41º to 122º F (5º to 50º C) 10% to 90% relative humidity, non-condensing
- Print Head: 9 Pin
- Fonts: 9 x 9 dot matrix default (expanded fonts through control codes)
- Paper Width: 3 in (76 mm)
- Roll Diameter: 3.27 in (83 mm)
- Interface: RS232 serial, DB25 female connector
- Dimensions (DxWxH): 10 x 6.3 x 5.2 in.
- Weight: 5 lbs.
- Print Speed: Approximately 3.5 lines per second @ 16 characters per inch
