Description

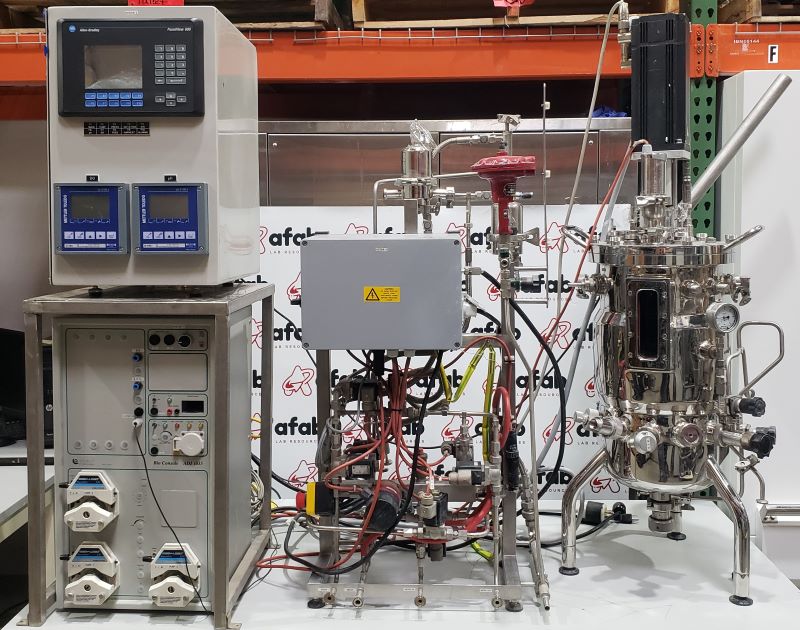

Applikon 30L BioBench Bioreactor System
This system is in very good condition. Preliminary testing only has been performed. Manufacture date of vessel is 2002. Will come with all shown.
- Total Volume: 30 Liters
- Working Volume: Typically, 7 – 20 L or up to 22 L depending on configuration.
- Material: 316L Stainless steel (vessel)
- Agitation: Magnetically coupled, top-mounted; magnetic seal ensures reduced contamination risk.
- Speed: Variable up to 1,000 rpm (application-dependent).
- Impellers: Included
- Gas Sparger: Porous, L-Sparger, or Ring-type.
- Sterilization: CIP/SIP modules available for automated cleaning and sterilization.
- Instrumentation: Ports for pH, DO (dissolved oxygen), temperature, antifoam, level, and sampling.
- Footprint: Often supplied on a mobile stainless-steel frame
- Cell Culture: Lower aspect ratio systems for mammalian cells.
- Microbial Fermentation: High-speed, high-density fermentation
Allen-Bradley PanelView 600, Mettler-Toledo O2 4100e Dissolved Oxygen Transmitter, and pH 2100e Meter Transmitter
- Display: 5–6-inch color or monochrome flat-panel display, typically with 320 x 234 or 320 x 240 resolution.
- Input Types: Touchscreen, keypad, or combination.
- Communication: Commonly supports RS-232 (DF1), Ethernet, or Remote I/O, depending on the model.
- Environment: Designed for NEMA Type 12, 13, 4X, or IP65, 54 rated enclosures.
ADI 1035 Bio Console
- Pumps: Equipped with 3 M/F 7518-00 pump heads for feed/base/acid/antifoam additions.
- Gas Handling: Includes rotameter assemblies or mass flow controllers to manage gas flow rates.
- Stirrer Control: Includes a stirrer speed controller, M-6.01 Mag Motor
- Process Parameters: Enables management of pH, temperature, stirrer speed, and aeration
Power Supply Control Manifold
