Description

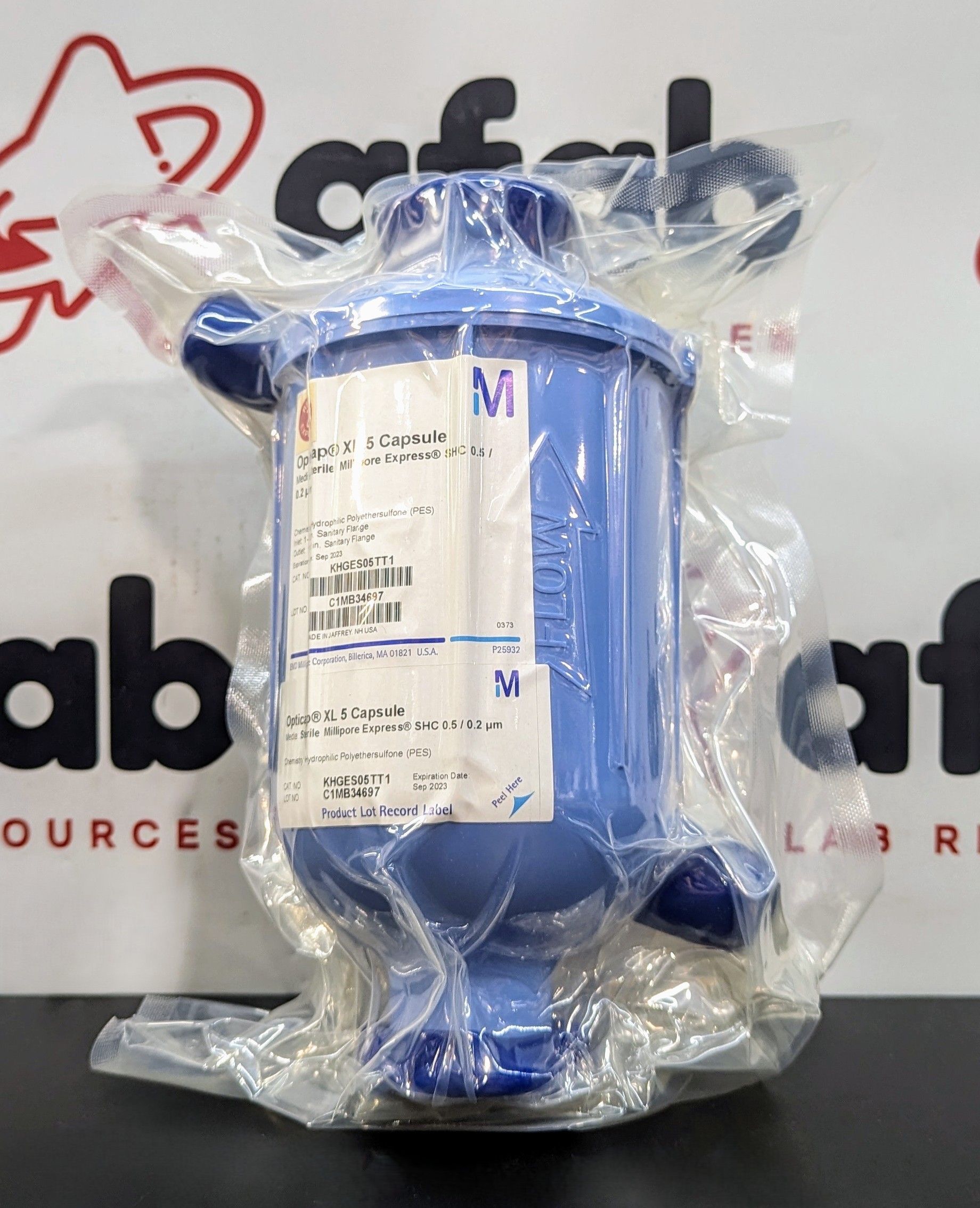

Opticap KHGES05TT1 Sterile XL 5 Millipore Express SHC 0.5/0.2 µm 1-1/2 in. TC/TC
Item is new, factory wrapped, open box. One capsule use by date is 9/2023, but has been properly stored and may be used for R&D. We also have 3 that have use by date of 1/2026. Please specify when ordering the date you want.
- Media: Millipore Express SHC
- Device Configuration: Capsule
- Pore Size: 0.5 / 0.2 µm
- Filtration Area: 0.24 m²
- Wettability: Hydrophilic
- Inlet/Outlet Connections: 38 mm (1-1/2 in.) Sanitary Flange
- Drain/Vent Connections: 1/4 in. Hose Barb with double O-ring seal
- Maximum Inlet pressure: Forward: 6.9 bar (100 psid) intermittent @ 25 °C; 5.5 bar (80 psid) @ 25 °C; 1.0 bar (15 psid) @ 80 °C. Reverse: 2.1 bar (30 psid) @ 25 °C, intermittent
- Sterility: Sterile
- Sterilization: 3 autoclave cycles of 60 min @ 123 °C; not in-line steam sterilizable
- Bubble Point: ≥4000 mbar (58 psig) air with water @ 23 °C
- Cartridge Nominal Length: 5 in. (12.5 cm)
- Length x Diameter: 8.5 x 4.2 in.
- Chemistry: Polyethersulfone (PES)
- Device Material: Polypropylene/Poly sulfone
- Seal Material: Silicone (SI)
