Description

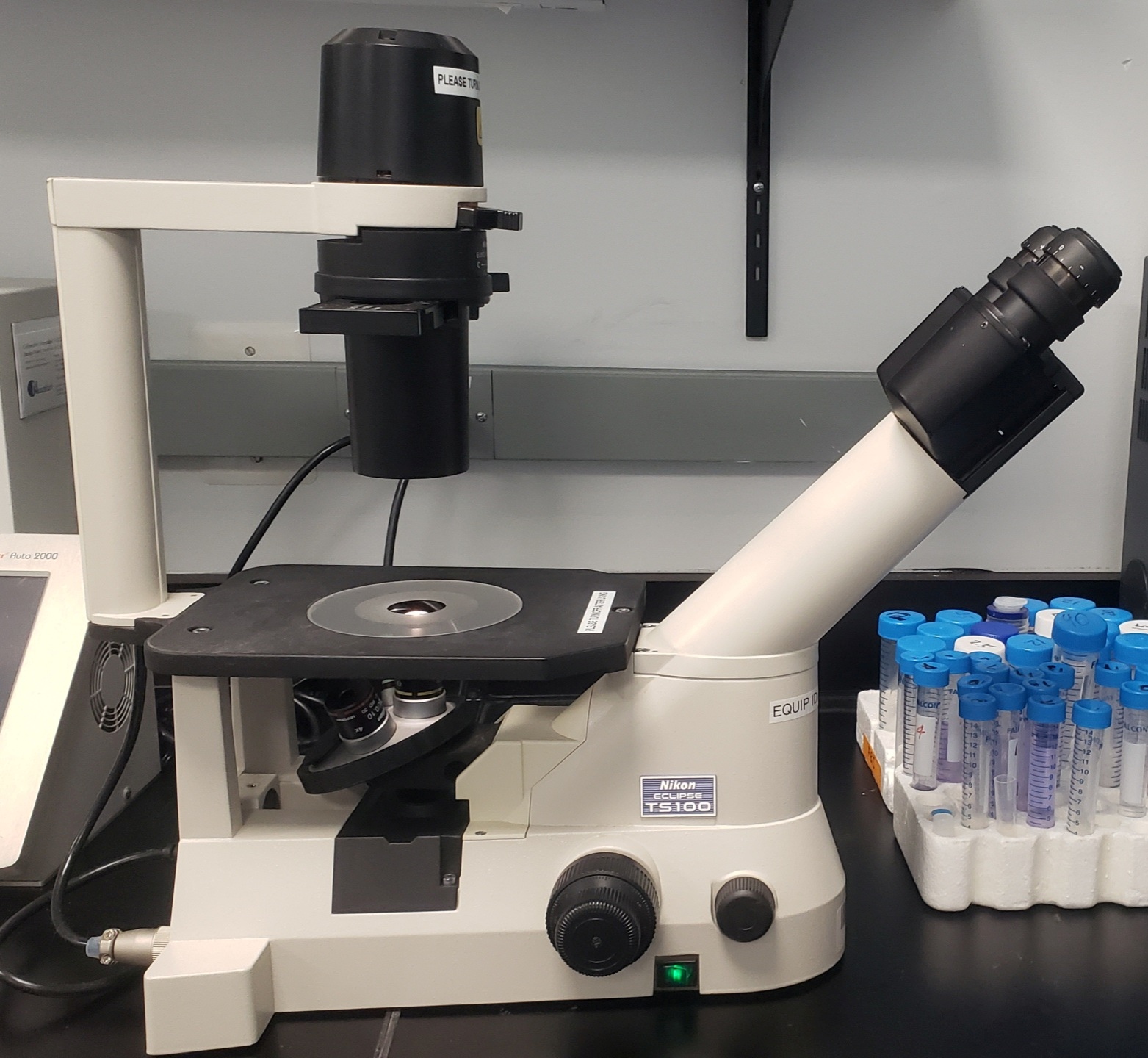

Nikon Eclipse TS100 Inverted Routine Microscope
This item comes with a 30-Day Limited Warranty
This scope is in very good condition. Lamp powers on, unit functions as intended. *Please disregard items in background, they are not included in this sale. Unit will come with the objectives shown.
- CFI60 Optical System: Combines CF optics with infinity optics for flat, sharp, and clear images.
- Objectives: Supports CFI60 objectives, including Apodized Phase Contrast objectives for enhanced contrast and tonal range.
- Eyepieces: 22 mm field of view (widest in its class), ensuring clear images across the entire field.
- Eyepiece Tube: Siedentopf type, inclined at 45°, eyepoint height 400 mm for ergonomic viewing.
- Nosepiece: Quintuple (5-position), backward-facing for easy rotation and clearance.
- Low-profile design (195 mm high).
- 190 mm space above the stage when condenser is removed (ideal for tall flasks or stacking chambers).
- Acrylic window insert for easy objective confirmation.
- Focus: Coaxial coarse/fine focus knobs positioned for convenience.
- Robust, rigid, vibration-resistant body.
- Ergonomic control placement for reduced operator strain.
- Transparent stage rings for objective identification.
- Optional glass stage to minimize thermal deformation.
- Dimensions: 9x21x19 in
- Weight: 18 lbs.
- Power: 100/110/120v, 50/60hz, 0.8a
r/b – NE002492 /OSB
