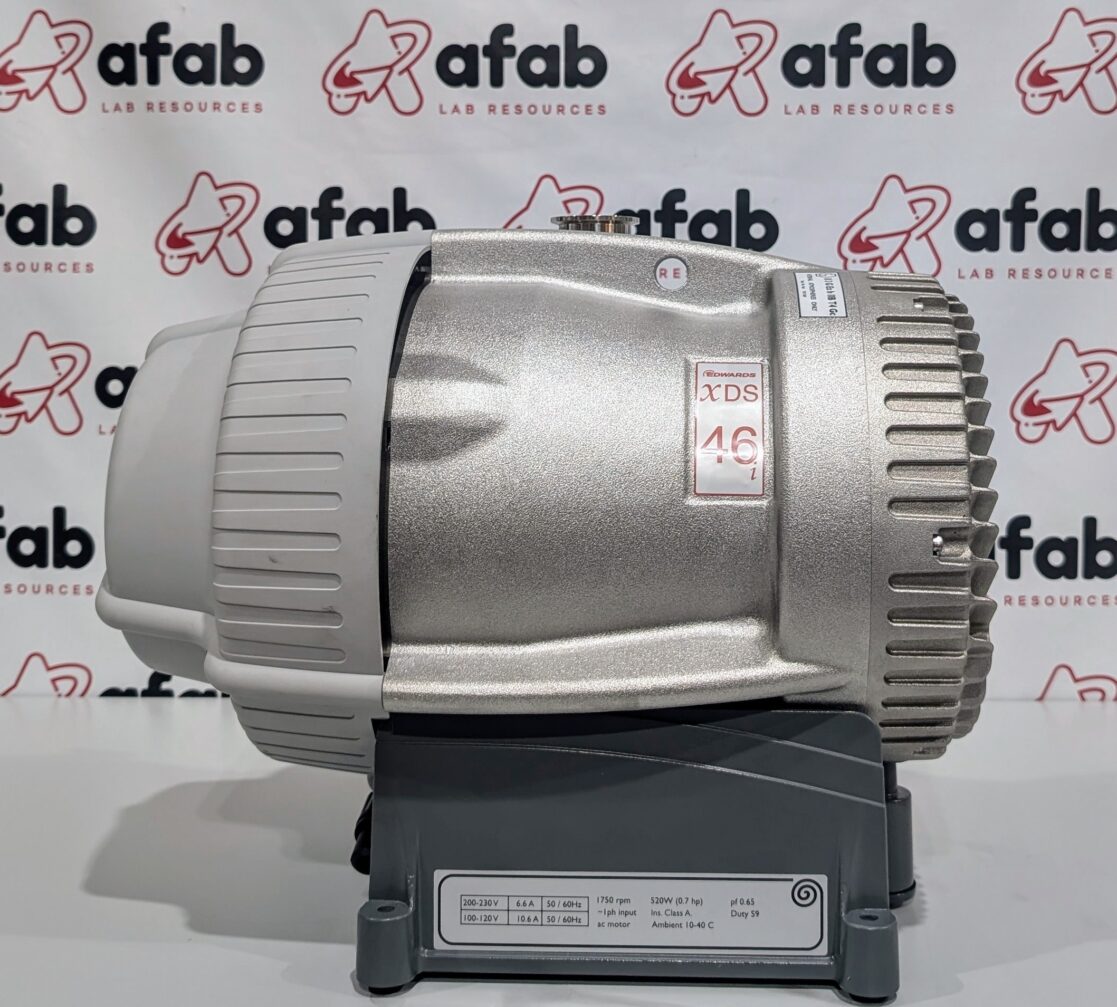

Edwards XDS46i Dry Scroll Vacuum Pump
This item comes with a 30-day Repair or Replace warranty.
We believe this pump to be new as there are no visible signs of use. Comes in protective foam case. Manufactured in 6/2021.
Dry scroll vacuum pumps are positive displacement pumps that use two spiral-shaped scrolls, one fixed and one orbiting, to trap and compress gas molecules. They are oil-free, low maintenance pumps that are commonly used for clean vacuum applications. Since they do not rely on oil for sealing and lubrication, they eliminate the risk of oil contamination and leakage.
- Peak Pumping Speed: 40 m³/h (23.5 cfm)
- Min/Max Ambient Operating Temp: 10°C to 40°C
- Product Pressure Range: Medium Vacuum: 1 mbar – 1·10⁻³ mbar
- Leak Rate: 1.000 × 10⁻⁷
- Without gas ballast: 0.05 mbar (0.04 Torr)
- With gas ballast: 0.08 mbar (0.06 Torr)
- Power: 100-120/200-230V ~ 50/60Hz ~ 1phase
- Power Consumption: 550 W
- Inlet Connection: DN 40 ISO-KF (NW40)
- Exhaust Connection: DN 25 ISO-KF (NW25)
- Cooling Method: Air cooling (forced fan)
- Noise Level: 55.4 dB(A) at ultimate vacuum
- IP Rating: IP44
- Dimensions (LxWxH): 18.74 x 13.11 x 15.59 in.
- Weight: 105 lbs.
