Description
GAST 87R147-V139-N2
This item comes with a 30-day Repair or Replace warranty.
Item is in good condition. Powers on and functions as intended. For use with: 405 LS, 405 Touch, El406, ELx405 Microplate Washers.

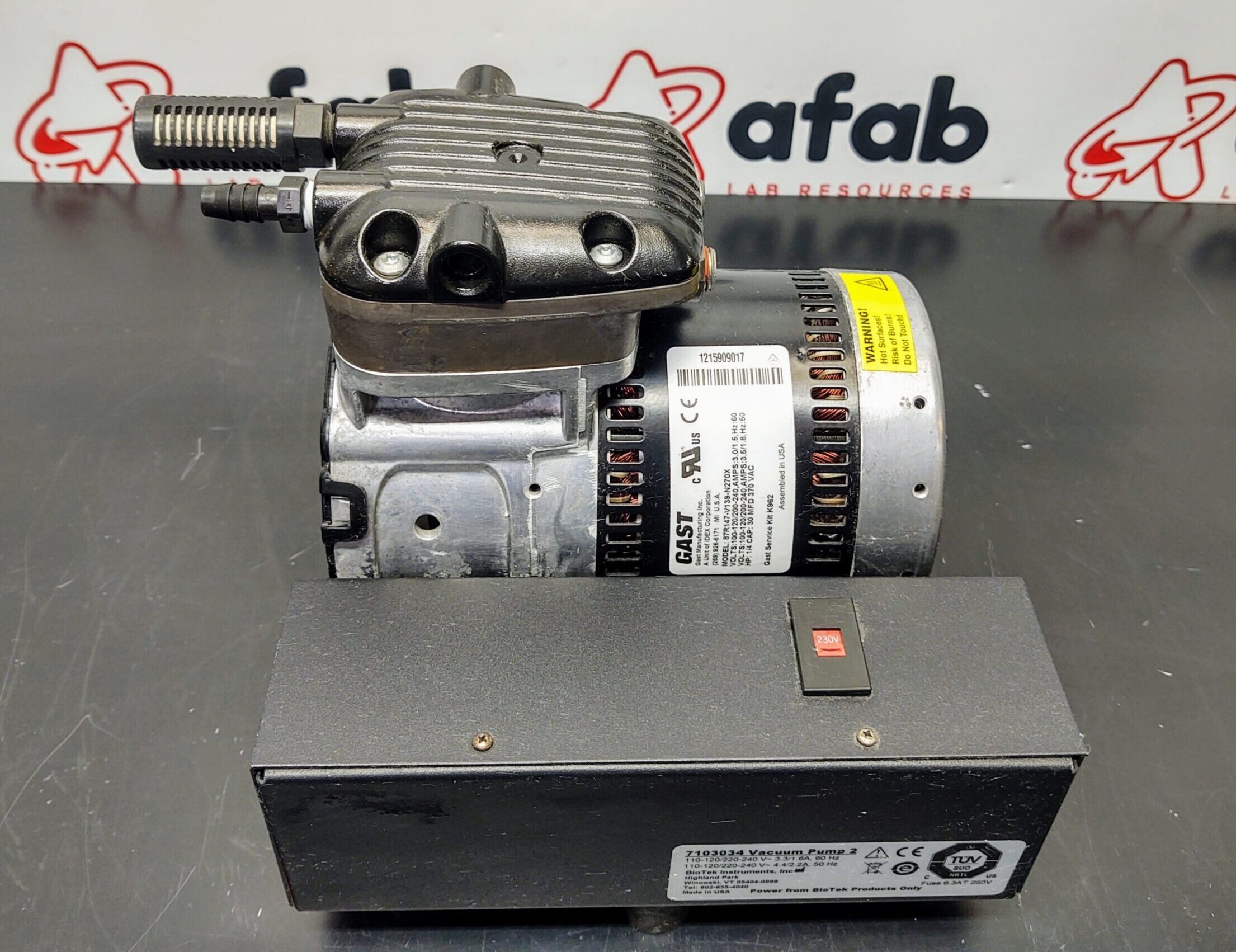

BIOTEK Model 7103034 Vacuum Pump 2
- Compressor Type: Standard Vacuum Pump
- Port Size: 1/4 in NPT
- End Connections: NPT
- Phase: Single
- Maximum RPM: 1725 RPM; 1425 RPM
- Minimum Working Temperature: 5 °C
- Maximum Working Temperature: 40 °C
- Standards: CE; UL
- For use With: 405 LS, 405 Touch, EL406, ELx405 microplate washers
- Power: 115 –230V ~ 50/60Hz
- Sound Level: Less than 65 db(A)
- Max Vacuum: 26 in -hg
- Weight: 25
- Dimensions: 21 x 17 x 20
- Includes Power Cord
Gast 87R Rocking Piston Single Oil-less Pump
- Max Flow (50 Hz): 2.1-2.2 cfm
- Max Flow (60 Hz): 2.5 cfm
- Max Vacuum: 26 in-Hg
- Max Pressure (50Hz and 60Hz): 30 psi
- Power Rating: 1/4 hp (KW: 0.19)
- RPM: 50Hz/1425 and 60Hz/1725
- Sound Level: less than 65 db(A)
- Voltage/AMP 50Hz: 100-120v at 3.9amp and 200-240v at 2.2amp
- Voltage/AMP 60Hz: 100-120v at 3.2amp and 200-240v at 1.7amp
r/b – 003894 R3.D2.P111
