Description

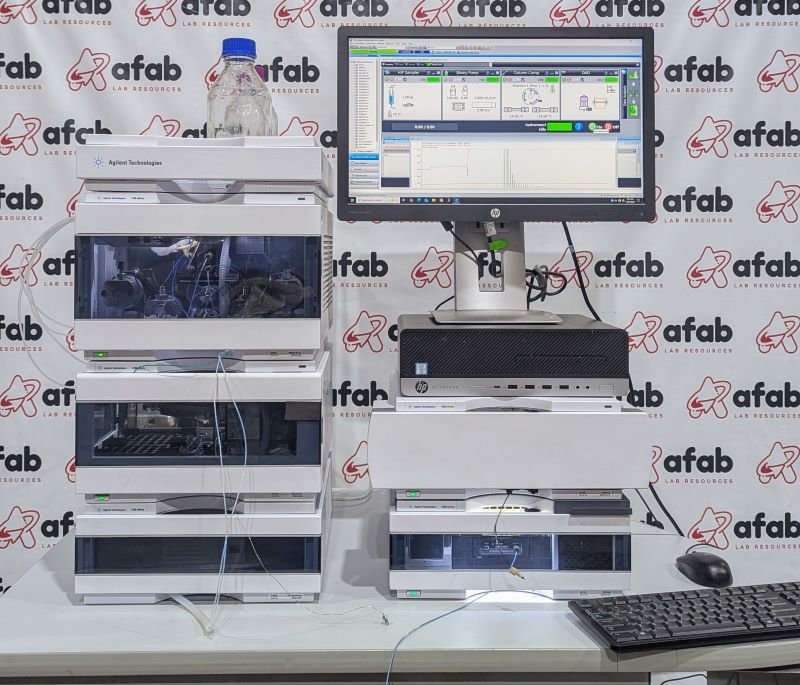

Agilent 1290 Infinity HPLC System
This item comes with a 30-day Repair or Replace warranty.
This system is in very good condition. We have tested with our in-house Lab Advisor testing software. This system will not come with software or computer. If software/computer system are needed, there will be an additional 1800.00 cost. Please let us know prior to purchase.
Solvent Tray
G4220A – Infinity Binary Pump
- Hydraulic system: Two dual pistons in series pumps with proprietary servo-controlled variable stroke design, power transmission by ball screws, smooth motion control of pistons for active. damping.
- Settable flow range: Setpoints 0.001—5 ml/min, in 0.001 ml/min increments.
- Flow precision: ≤0.07 % RSD or 0.005 min SD, whatever is greater (0.2—5.0 ml/min). Based on retention time at constant room temperature.
G1316C – Infinity TCC SL+
- Weight: 22 lbs.
- Dimensions (DxWxH): 17 x 13.5 x 5.5 in.
- Line Voltage: 100 – 240 VAC, ± 10 %
- Line Frequency: 50 or 60 Hz, ± 5 %
- Power Consumption: 320 VA / 150W / 512 BTU Maximum
- Ambient Operating Temp: 0–55 °C (32–131 °F)
- Humidity: < 95 % r.h. at 40 °C (104 °F) Non-condensing
G4212A – Diode Array Detector
- Weight: 26 lbs.
- Dimensions (DxWxH): 17 x 13.5 x 5.5 in.
- Line Voltage: 100 – 240 VAC, ± 10 % Wide-ranging capability
- Line Frequency: 50 or 60 Hz, ± 5 %
- Power Consumption: 160 VA / 130 W / 444 BTU Maximum
- Ambient Operating Temp: 4–40 °C (39–104 °F)
- Humidity: < 80 % r.h. at 40 °C (104 °F) Non-condensing
G4226A – Autosampler
- Weight: 34.2 lbs.
- Dimensions (DxWxH): 17 x 13.5 x 8 in.
- Line Voltage: 100 – 240 V~, ± 10 % Wide-ranging capability
- Line Frequency: 50 or 60 Hz, ± 5 %
- Power Consumption: 200 VA / 200 W / 683 BTU Maximum
- Ambient Operating Temp: 4–55 °C (39–131 °F)
- Humidity: < 95 % r.h. at 40 °C (104 °F) Non-condensing
G1330B – Thermostat
- Weight: 46 lbs.
- Dimensions (DxWxH): 17 x 13.5 x 5.5 in.
- Line Voltage: 100 – 240 VAC, ± 10 % Wide-ranging capability
- Line Frequency: 50 or 60 Hz, ± 5 %
- Power Consumption: 260 VA / 210 W / 717 BTU Maximum
- Ambient Operating Temp: 4 – 40 °C (39 – 104 °F)
- Humidity < 95 % r.h. at 40 °C (104 °F) Non-condensing
