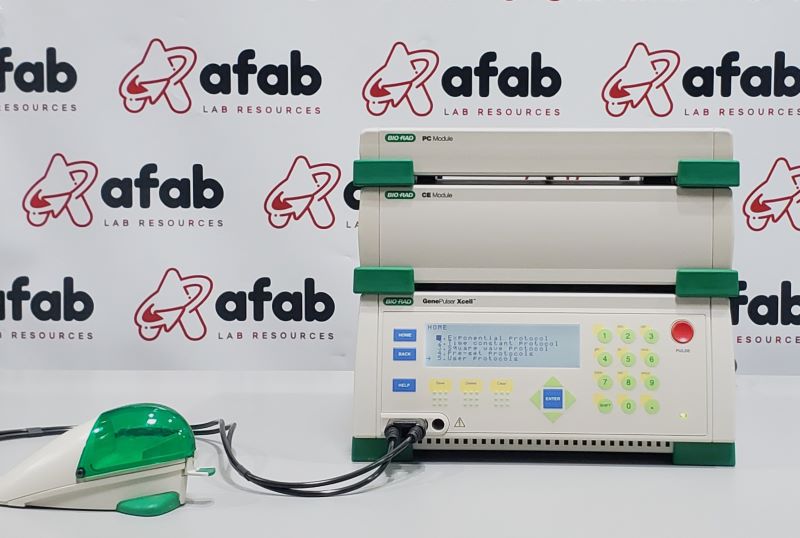

Bio-Rad Gene Pulser Xcell Electroporation Total System
This system is in very good condition. All operational testing was completed successfully. No issues with keypad, or display. Interface version 3.15. Will come with all shown.
The Bio-Rad Gene Pulser Xcell Electroporation System is a modular, universal instrument designed for transfecting eukaryotic and prokaryotic cells, including mammalian cells, primary and stem cells, T cells, bacteria, and fungi.
- Voltage Range: Fully adjustable from 10 to 3,000 V
- Low Voltage Range: 10 to 500 V (adjustable in 1 V increments)
- High Voltage Range: 500 to 3,000 V (adjustable in 10 V increments)
- Internal Capacitance Range: 10 to 50 µF (adjustable in 1 µF increments)
- Internal Parallel Resistance Range: 50 to 1,000 Ω (adjustable in 50 Ω increments)
- Waveform Delivery: Supports both exponential decay and square wave profiles.
- Safety & Protection: Features PulseTrac circuitry and arc-protection (with a response time of <10 µs) to prevent sample loss and device damage.
- Cuvette Compatibility: Supports 0.1 cm, 0.2 cm, and 0.4 cm electroporation cuvettes using the ShockPod chamber.
- Protocol Storage & Interface: Features an internal memory database that stores up to 144 user-defined custom programs or records data from the last 100 experiments.
- Operating Temperature: 0°C to 35°C
- Power Requirements: 100–120 / 220–240 V, 50/60 Hz
- Memory: Capable of storing user-defined and preset custom protocols.
System Components:
- Main Unit: Provides the base control interface, digital display, numerical keypad, and core voltage generation.
- Capacitance Extender (CE) Module: Contains low-voltage capacitors (functional range of 25–3,275 µF) used mainly for mammalian cells and plant protoplasts.
- Pulse Controller (PC) Module: Houses resistors (50–1,000 Ω) required for high-voltage pulses and high-resistance samples typical of bacteria and fungi.
- ShockPod Cuvette Chamber: The green and white sample chamber that holds 0.1 cm, 0.2 cm, or 0.4 cm electroporation cuvettes.
