Description
Waters Acquity Arc UHPLC Chromatography System – 2021
The Waters ACQUITY Arc System is a quaternary-based, modern LC system for scientists working with established LC methods who are looking for the versatility and robustness required to bridge the gap between HPLC and UPLC, while continuing to support validated assays. .

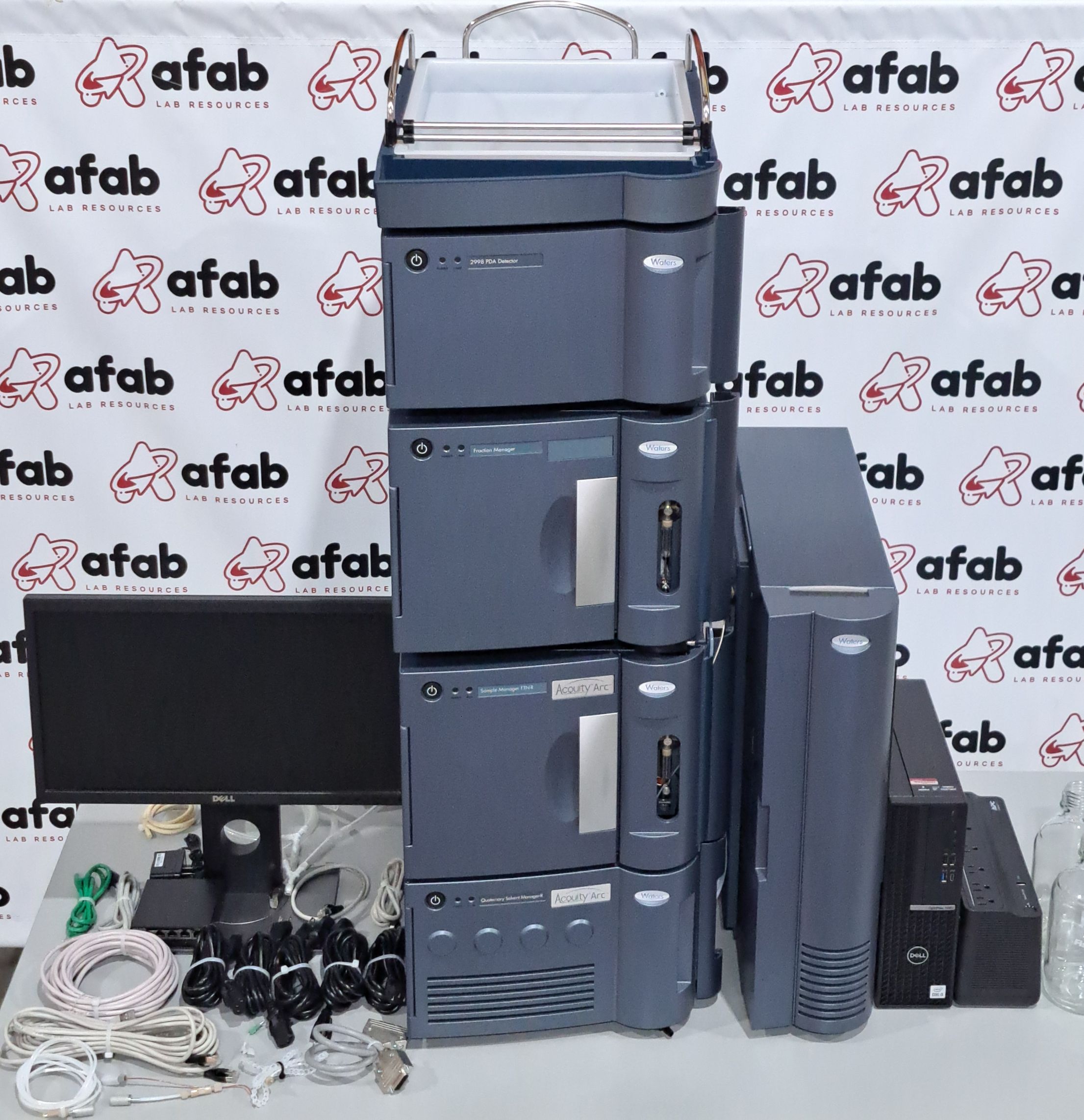

This Waters Acquity Arc System is in excellent working condition. Comes from a functioning lab environment. This unit has manufacture date of 2021 and will come with a Dell computer, monitor, mouse and keyboard (not pictured)
- 30cm Column Heater/Cooler
- Heating and cooling from 4 to 65 °C
- Temperature control of up to four HPLC columns with lengths up to 300 mm and internal diameters up to 7.8 mm
- Columns can be plumbed in series
- Qualification support with Waters AQT™ and SystemsQT™ products
- Empower™ and MassLynx™ method and instrument control
- Customized tubing kit configured exactly for installation on the ACQUITY UPLC system
- Can be installed on new or existing ACQUITY UPLC Systems
2998 PDA Detector
- Wavelength Range: 190 to 800 nm
- Wavelength Accuracy: ±1 nm (via patented Erbium filter)
- Bandwidth: 1.2 nm
- Photodiodes: 512
- Digital Resolution: 1.2 nm/pixel
- Linearity Range: ≤5% at 2.0 AU, propylparaben, 257 nm, dry analytical flow cell
- Sample Rate: Up to 80 points/s
Sample Manager FTN-R
- Operating Temp Range: 4 to 40°C
- Operating Humidity: 20 – 80% – non-con
- Flow rate range 0 to 5 mL/min
- Operating pressure 0 to 65,500 kPa (655 bar, 9500 psig)
- Audible noise ≤60 db
- Residual sample volume 3 µL, Total Recovery vials, with a minimum specified needle depth
- Protection Class: 1
- Pollution Degree: 2
- Electrical: 110-240 ~ 50/60Hz
- Dimensions (DxWxH): 24.3 x 13.5 x 10.8 in.
- Weight: 53 lbs.
Quaternary Solvent Manager-R
- Operating Temp Range: 4 to 40°C
- Operating Humidity: 20 – 80% – non-con
- Flow Rate Range: Programmable and executable range of 0.001 to 5.000 mL/min, in 0.001 mL/min increments
- Protection Class: 1
- Pollution Degree: 2
- Electrical: 110-240 ~ 50/60Hz
- Dimensions (DxWxH): 24.3 x 13.5 x 9.5 in.
- Weight: 57 lbs.
Fraction Manager
- Operating UPLC Flow Range: 0.1 to 2.2 mL/min with standard needle
- Operating HPLC Flow Range: 0.1 to 5.0 mL/min with high flow needle
- pH Operating Range: 2 – 12
- Internal Delay Volume: 13.6 µL
- Maximum Back Pressure: <300 psi
- Needle Move Time: 0.7s vessel to vessel (above) 1.1 s vessel to vessel (bottom)
- Carryover:<0.15% w/rinse enabled
- Fraction Compartment Temp: Range 4.0–40.0 °C, settable in 0.1 °C increments; maintains 19.0 °C below ambient with a tolerance range between -2.0 °C–4.0 °C
APC Expansion Port
CyberPower PR1500LCD
