Description

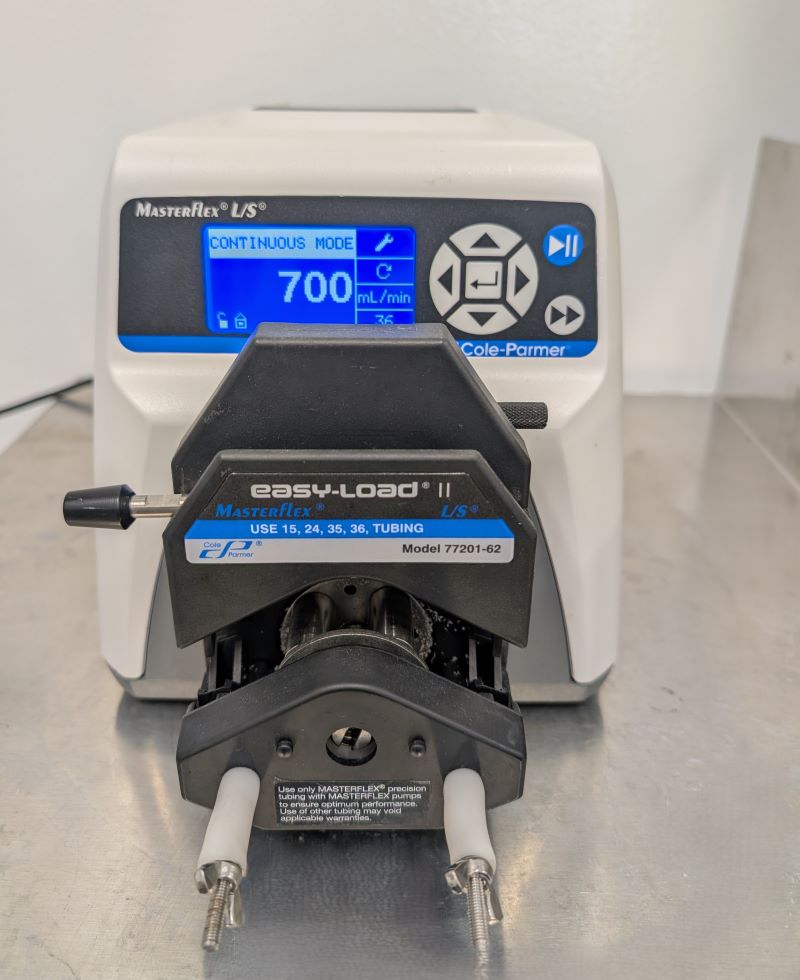

Cole Parmer 07522-20 Masterflex L/S Digital Console Drive w/77201-62 Head
- Speed Range: 0.1 to 600 RPM
- Flow Rate Range: 0.006 to 3400 mL/min (depends on tubing/head)
- Speed Control Accuracy: ±0.1%
- Motor: 1/10 hp brushless (maintenance-free)
- Reversible Motor: Yes
- Display: Graphical LCD with 7-language menu
- Remote Control: 0–20 mA, 4–20 mA, 0–10 V, start/stop, direction, and prime via contact closure
- Power: 90–260 VAC, 50/60 Hz
- Dimensions (LxWxH) 15 x 10 x 8 in. (varies slightly by source)
- Weight: 15 lbs (6.8 kg)
- Operating Modes: Continuous run, time dispense, volume dispense, and copy dispense
- Anti-drip Function: Built-in to ensure dispensing accuracy
- Pump Head Compatibility: Accepts up to 2 L/S pump heads (Standard, Easy-Load/II/3, High-Performance, Cartridge)
- IP Rating: IP33
Model 77201-62 Pump Head
-
- Flow Rate Range: 1.7 to 2900 mL/min, depending on drive speed and tubing size.
- Accepted Tubing Sizes: Specifically designed for High-Performance Precision tubing, including L/S 15, L/S 24, L/S 35, and L/S 36.
- Construction: Durable black Polyphenylene Sulfide (PPS) housing with a Stainless Steel (SS) 4-roller rotor for reduced pulsation and chemical resistance.
- Suction Lift: Capable of up to 29 feet (8.8 meters) of suction lift.
- Stackability: Up to four heads can typically be stacked on a single compatible Masterflex drive to increase channel capacity.
