Description

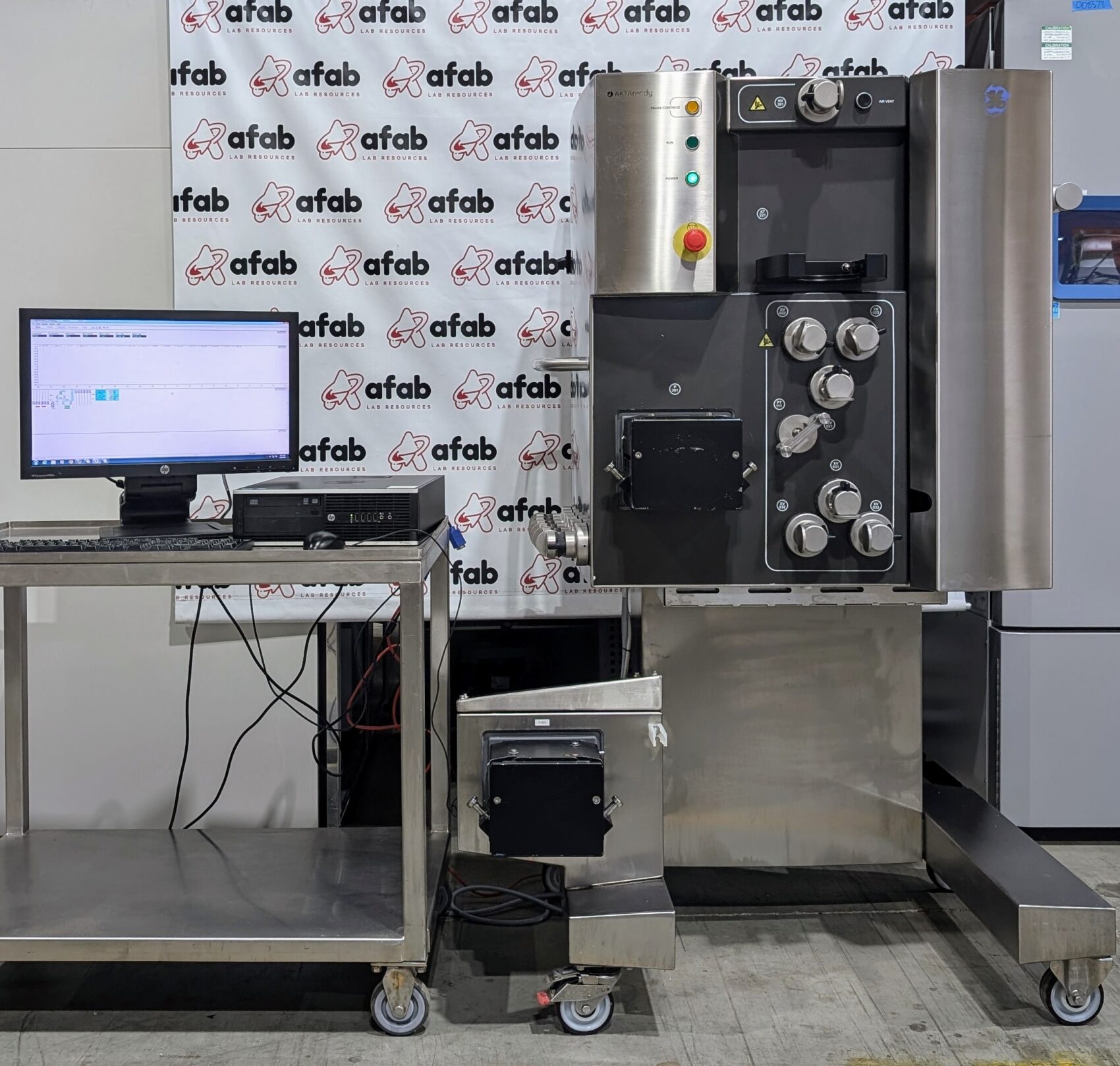

GE AKTA Ready Variable UV Chromatography System 29048229
-
- AKTA Ready Systems Single-Use Chromatography System
- Volumetric flow rates: 3–175 L/h Low Flow Kit 7.5–510 L/h High Flow Kit
- Pump speed: 225 rpm (100%) Low Flow Kit 340 rpm (100%) High Flow Kit
- Max. pressure, peristaltic pump 4.0 bar
- System pressure rating: 5.0 bar (high‑pressure flow path, upstream column) 2.0 bar (high‑pressure flow path, downstream column) 0.95 bar (low-pressure outlet manifold) 0.6 bar (low‑pressure inlet manifold)
- Flow gradient 10–90% gradient buffer with ± 4% linearity, up to 3 bar
- Conductivity gradient: (ÄKTA ready extended system): 10–90% gradient buffer with ±2% linearity, up to 3 bars
- Gradient flow range: 20–175 L/h Low Flow Kit 40–510 L/h High Flow Kit
- AKTA ready variable UV: Temperature sensor Range: 2°C to 40°C ± 3°C
- UV Sensor:3‑wavelengths Range: 0–2 AU (AU linearity ± 2%***)
- pH sensor: Range: 3–10 (Accuracy: ± 0.3)
- Flow rate accuracy: High flow kit: ± 5% actual value at flow‡ ≥ 40 L/h ± 10% actual value at flow < 40 L/h – Low flow kit: ± 5% actual value at flow‡ ≥ 20 L/h ± 10% actual value at flow < 20 L/h
- Pressure sensor: Range: 0–5 bar g Accuracy: ± 0.20 bar g
- Conductivity sensor§: Range: 0–150 mS/cm Accuracy: ± 5% full scale
- General specifications W × H × D: 1140 × 1670 × 840 mm
- Weight (kg): 258
- Compressed air interface: 5.5–7 bar, 50 NL/min, oil‑ and particle‑free
