Description

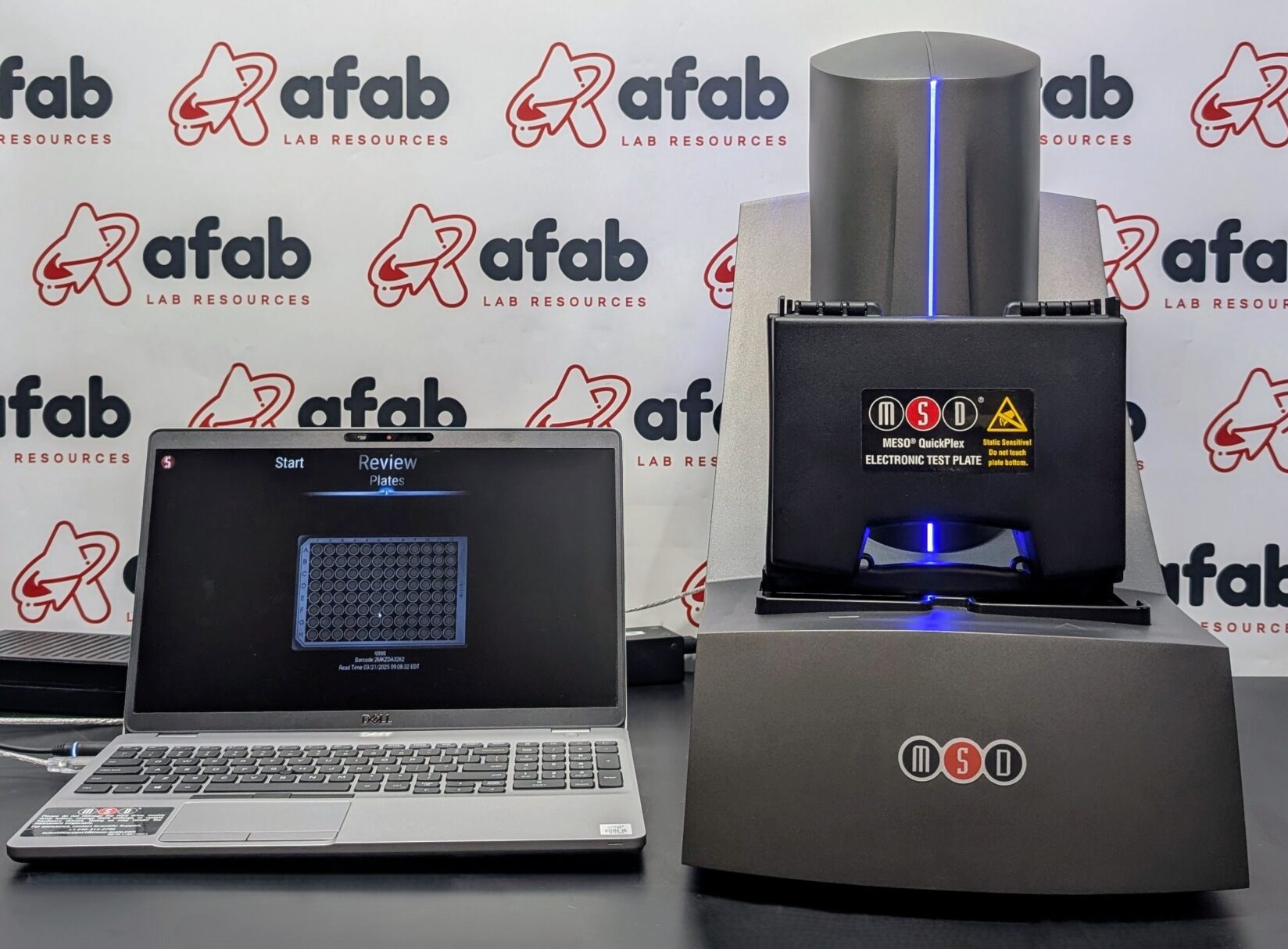

Meso Scale Discovery 1300 MESO QuickPlex SQ 120MM
This item comes with a 30-day warranty.
This system is in very good condition. All operational testing was completed successfully. Software and test plate included. Manufacture date is Oct 2020.
- Instrument Name Instrument: MESO QuickPlex SQ 120MM
- Catalog Number: AI1AA-0
- Detection Technology: Electrochemiluminescence (ECL)
- Detection System: Cooled scientific-grade CCD camera and precision custom lens assembly
- Multiplexing Capability: Up to 10 assays/well
- Plate Compatibility: MSD 96-well SECTOR plates, MSD QuickPlex plates
- Sensitivity: Limits of detection as low as 0.05 to 1 pg/mL for many assays
- Dynamic Range: Greater than 10/5
- Plate Read Time (Singleplex to 10-spot multiplex plates): SECTOR plates 1 minute 30 seconds QuickPlex plates 2 minutes 45 seconds
- Throughput: SECTOR plates 40 plates/hour QuickPlex plates 22 plates/hour
- Plate Stacker Capability: 5 plates input stack / 5 plates output stack
- Operating Temperature Range: 68 °F to 78 °F (20 °C to 26 °C)
- Operating Humidity Range: 10% to 80% relative humidity (non-condensing)
- Maximum Altitude: 6,500 ft (2,000 m)
- Measured Sound Level: 59 dbA
- Dimensions (WxDxH): 13 in x 23 in x 21 in.
- Weight: 44.5 lbs.
- Power: 100–240 VAC, 50–60 Hz, 155 W max.
- Network Regulatory: A wired or wireless network connection to the instrument laptop is required.
r/rs – 009474 – OSB
