Thermo Scientific Orbitrap Elite with LTQ Velos Pro, ETD, Pumps and Chiller

Description

Thermo Scientific Orbitrap Elite with LTQ Velos Pro, ETD, Pumps and Chiller

This item comes with a 30-day Repair or Replace warranty.

This system is in very good working condition. Retrieved from working lab. Will come with the following components: (1) Thermo Scientific Velos Pro, (1) Thermo Scientific Orbitrap Elite, (1) Thermo Scientific Neslab Thermo Flex900, (1) Thermo Scientific ETD, (2) Rough pump

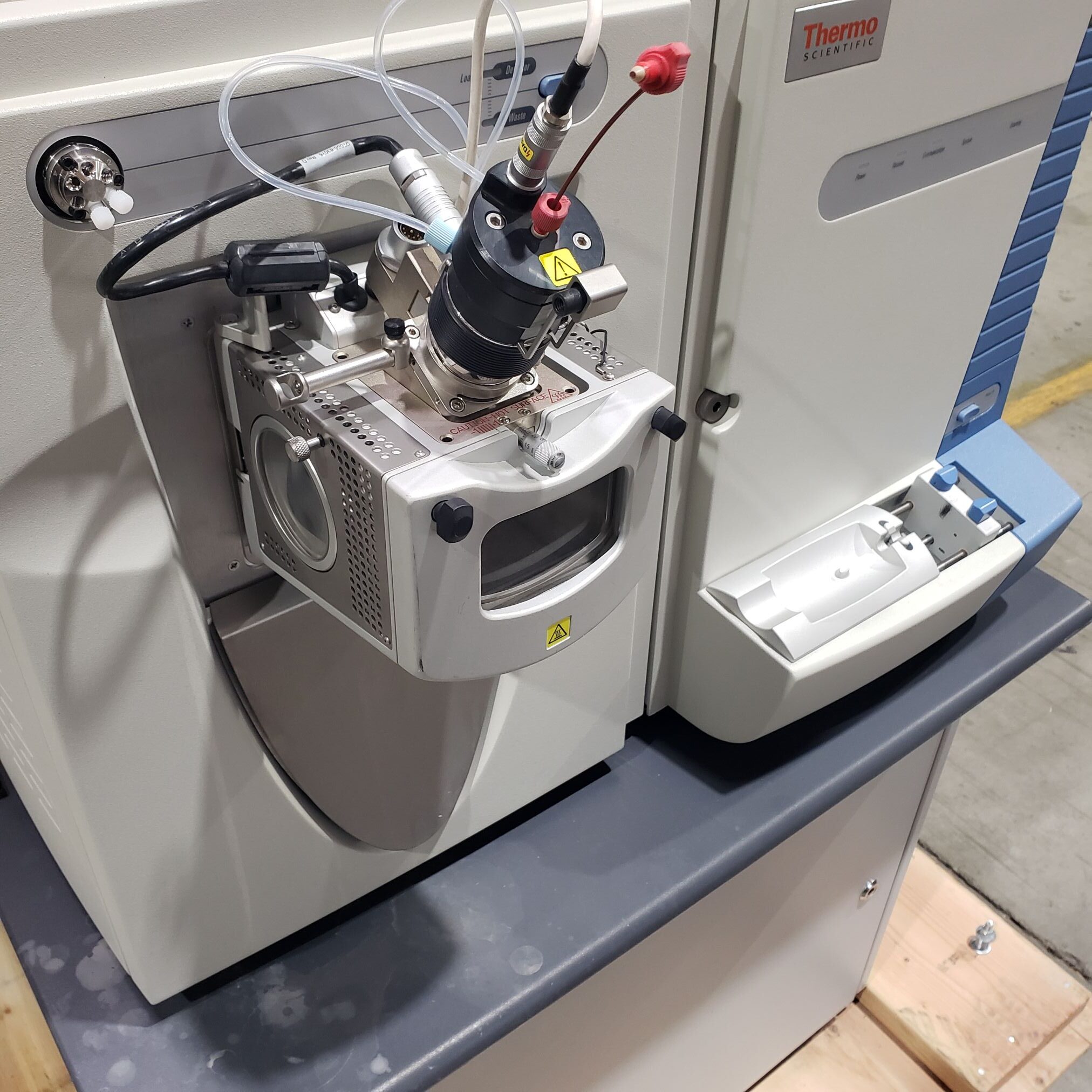

Thermo Scientific Velos Pro

• Resolving power up to 100,000 FWHM and mass accuracy better than 1ppm RMS provide confidence when analyzing complex samples
• Multiple fragmentation techniques—CID, HCD, and optionally ETD—offer versatility and facilitate structural characterization
• Fast scanning and parallel MS and MSn analysis speeds analyses
• Ion optics with novel neutral-blocking technology increase robustness
• Collision cell with axial field gradient improves quantitative results
• High mass resolution and mass accuracy enable high-confidence molecular weight determination of intact proteins, peptide identification in complex samples and analysis of isobaric species
• High sensitivity increases detection of low-abundance peptides and proteins
• Short duty cycle increases sequence coverage within in a single experiment
• Stability, mass accuracy and wide dynamic facilitate label-free quantification
• Mass resolution and mass accuracy distinguish between heavy and light peptide ion pairs and interferences in SILAC experiments
• HCD cell with axial field improves quantification of isobarically labeled peptides
• Optional electron-transfer dissociation (ETD) generates complementary information for P™ analyses and de novo sequencing
• Operating Temp: must be 15–27 °C (59–80 °F) / Humidity 40-80% non con
• Dimensions: 23.2 x 31.1 x 22.0 in.
• Weight: 265 lbs.

Thermo Scientific Orbitrap Elite

• Mass Range: 50 to 2000m/z; 200 to 4000m/z
• Scan Rates: MSn for n = 1 Through 10
• Dynamic Range: >5000 within a single scan guaranteeing specified
• Mass Accuracy: <3ppm RMS with external calibration; <1ppm RMS using internal calibration; <1ppm RMS using internal calibration
• Resolution: 60,000 at m/z 400 at a scan rate of 4Hz, min. resolution 15,000, max. resolution >240,000 at m/z 400
• Weight: 1,366.7 lbs.

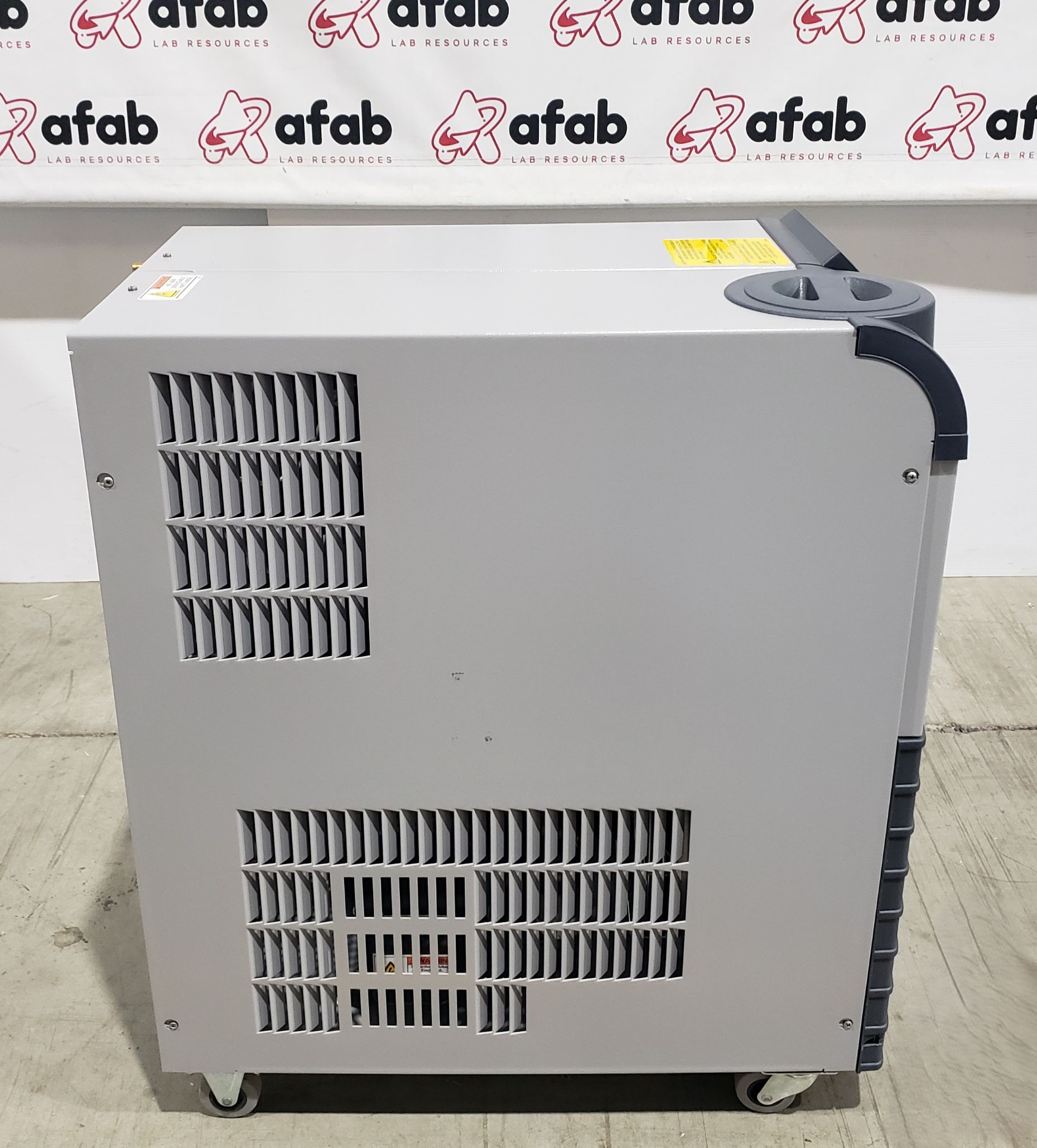

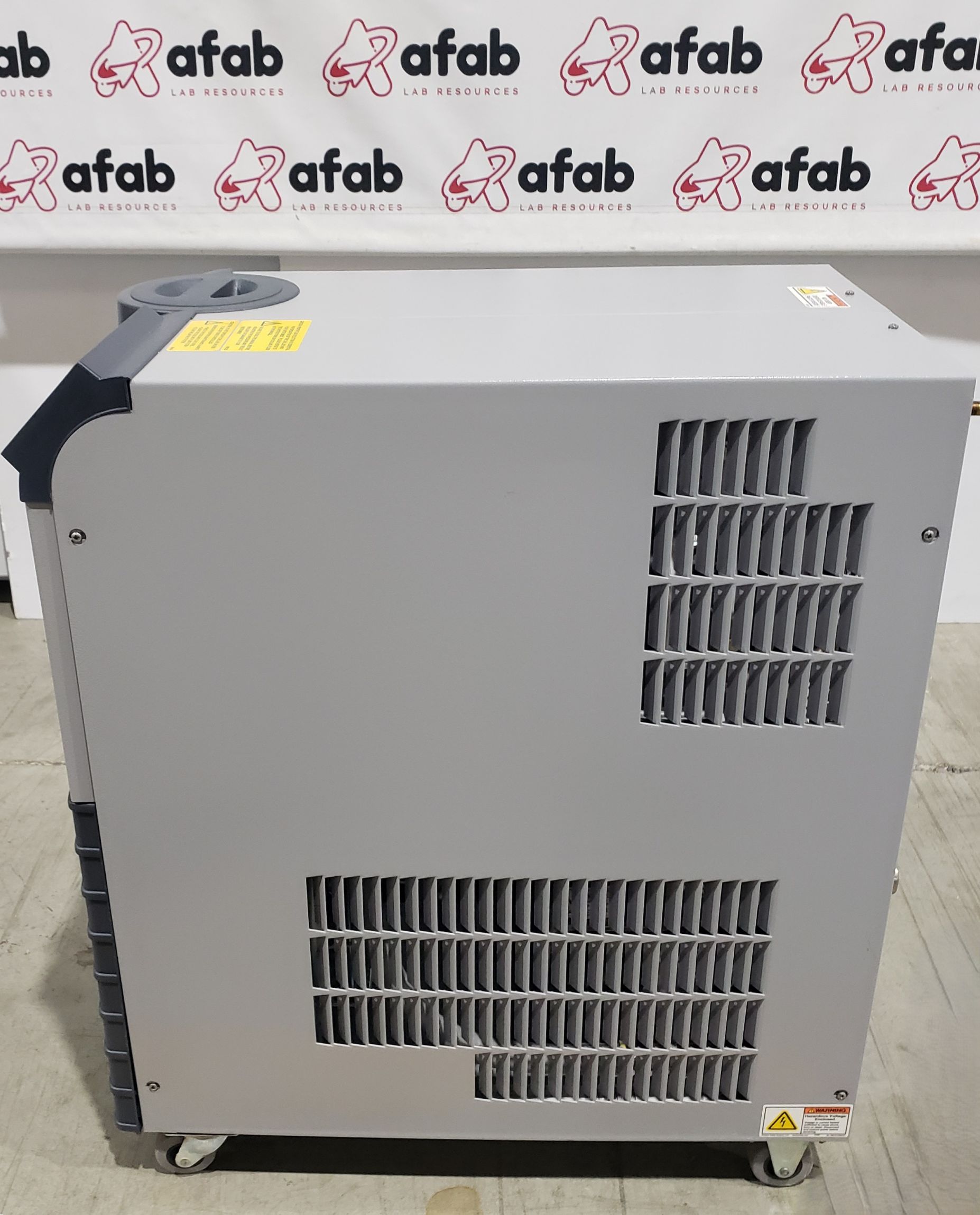

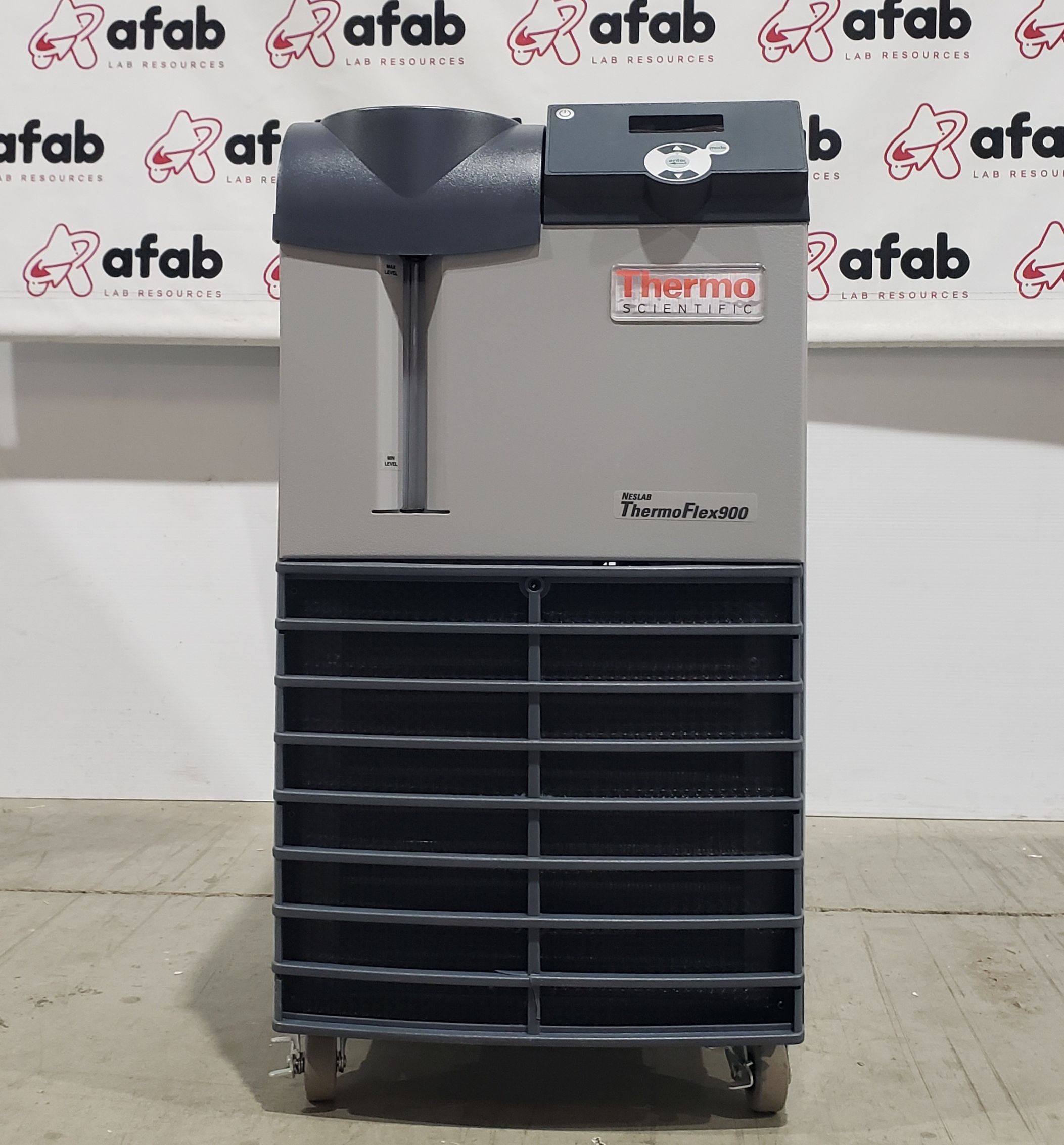

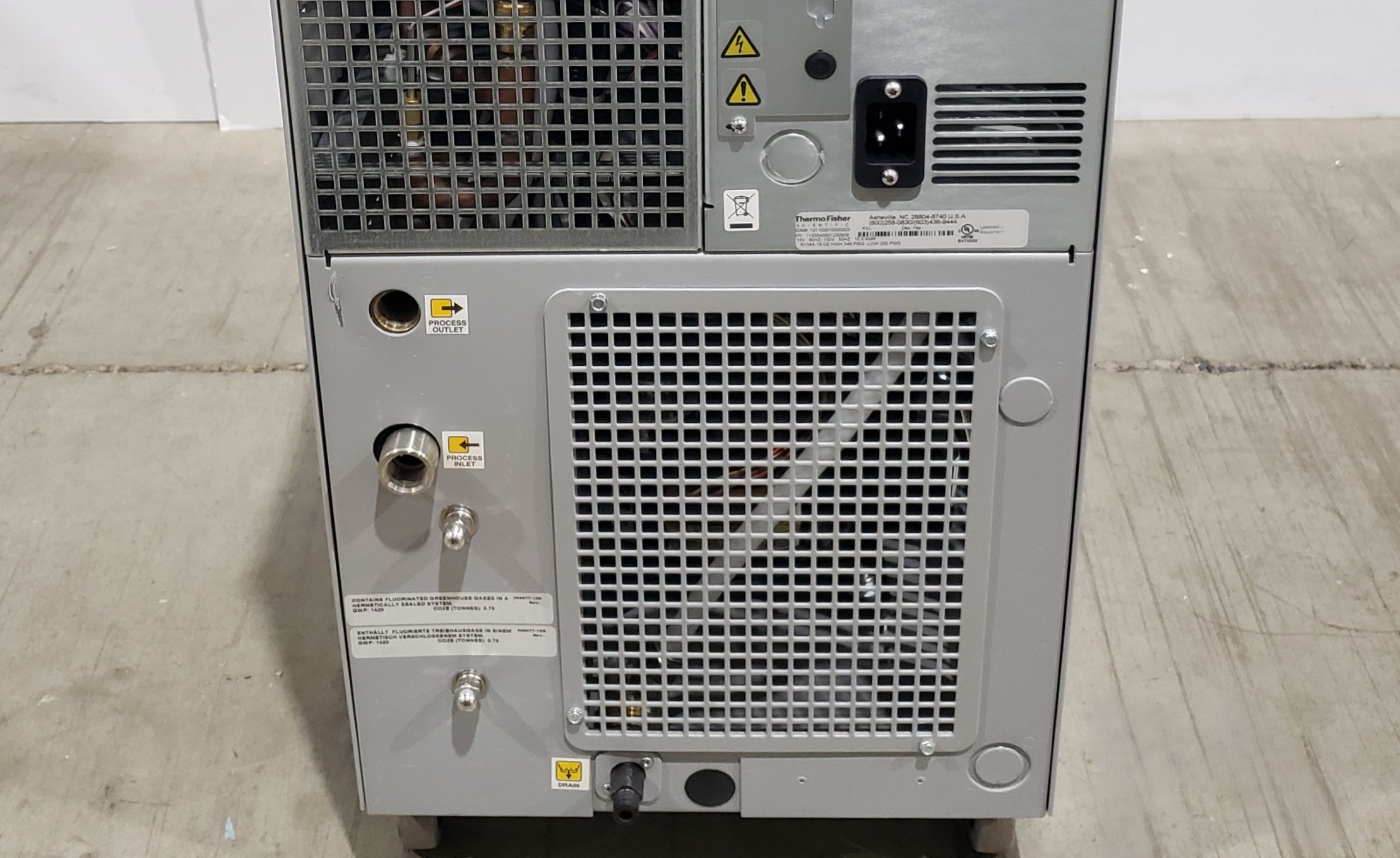

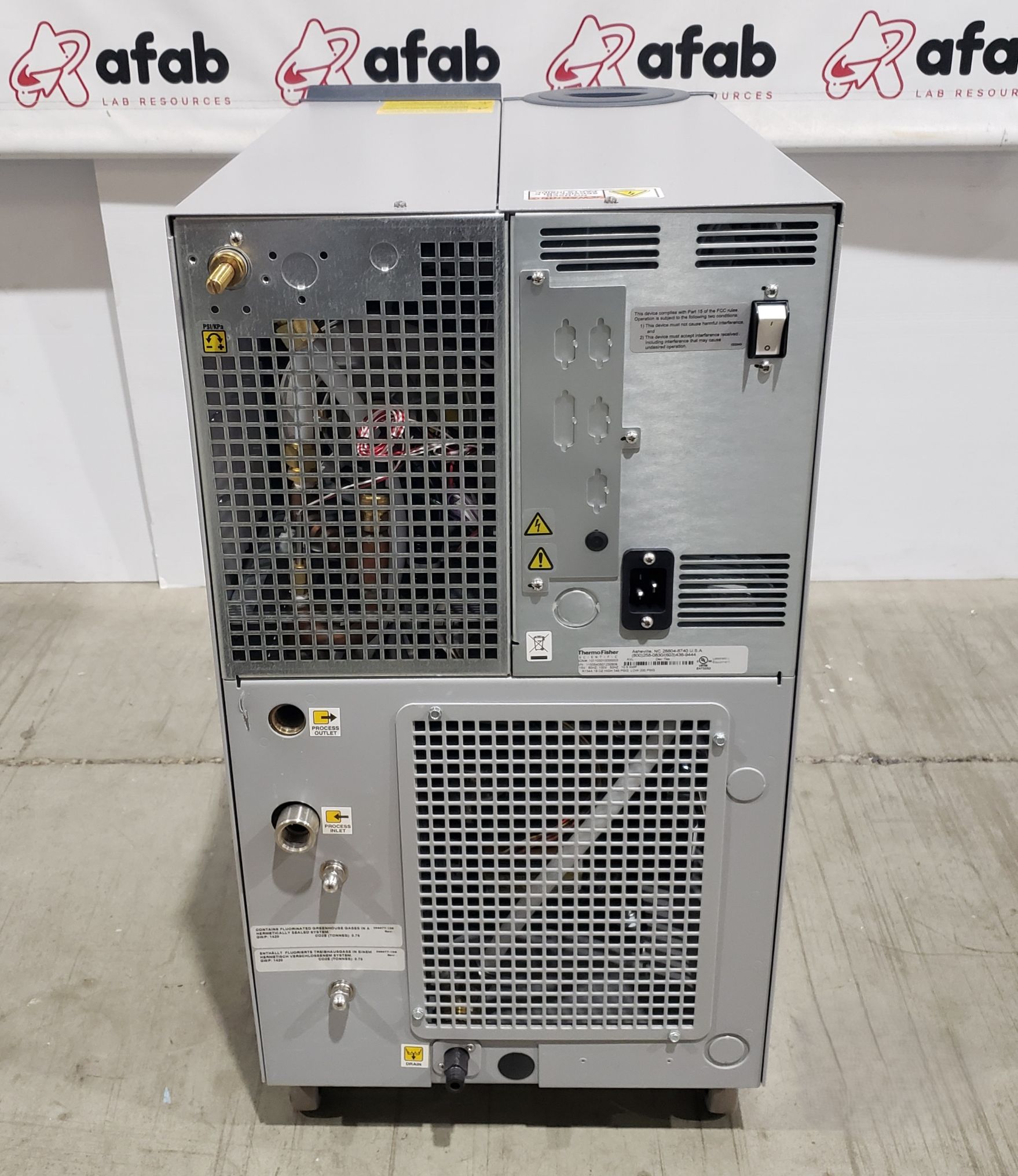

Thermo Neslab Thermo Flex900

• Description: Recirculating chiller
• Temperature Range: 5°C to 40°C
• Temperature Stability: 0.1°C
• Condenser Type: Air cooled
• Communications: Digital
• Cooling Capacity: Up to 900 watts (60Hz) 750 watts (50Hz)
• Pump Capacity: Up to 3.3 gpm @ 60 psig  (12.5 L/min. @ 4.1 bar) (50Hz)
• Up to 4.0 gpm @ 60 psig

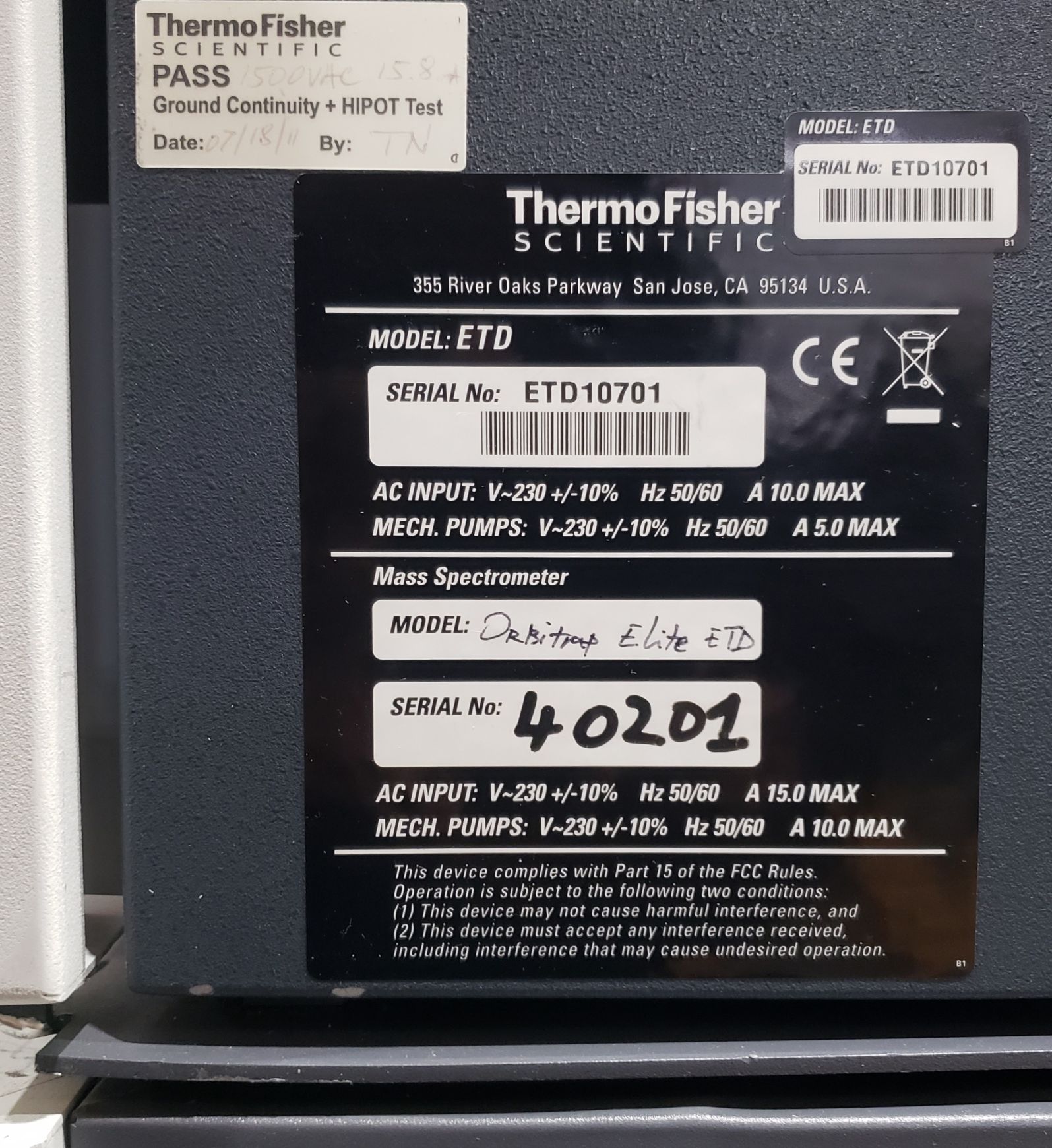

Thermo Scientific ETD

• ETD preserves labile PTMs, allowing straightforward identification of the peptide sequence and the site of modification
• For top-down analysis, ETD can be combined with proton transfer reaction (PTR) which dramatically simplifies spectra from intact proteins
• For workflows that include low-mass isobaric mass tags, ETD can be combined with pulsed-Q dissociation (PQD) which eliminates the normal low-mass cutoff
• ETD can be added to most Thermo Scientific LTQ-series ion trap and hybrid ion trap-Orbitrap mass spectrometers
• Proteome Discoverer software includes the proprietary Z-Core database search algorithm specifically optimized for ETD spectra
• Proteome Discoverer software can easily merge complementary CID and ETD results to maximize protein sequence coverage
• Operating Environment must be 15-27°C (59-80°F)
• Relative humidity must be 40-80% with no condensation
• Dimensions (DxWxH): 49.2 x 32.2 x 35.0 in
• Weight: 302 lbs.

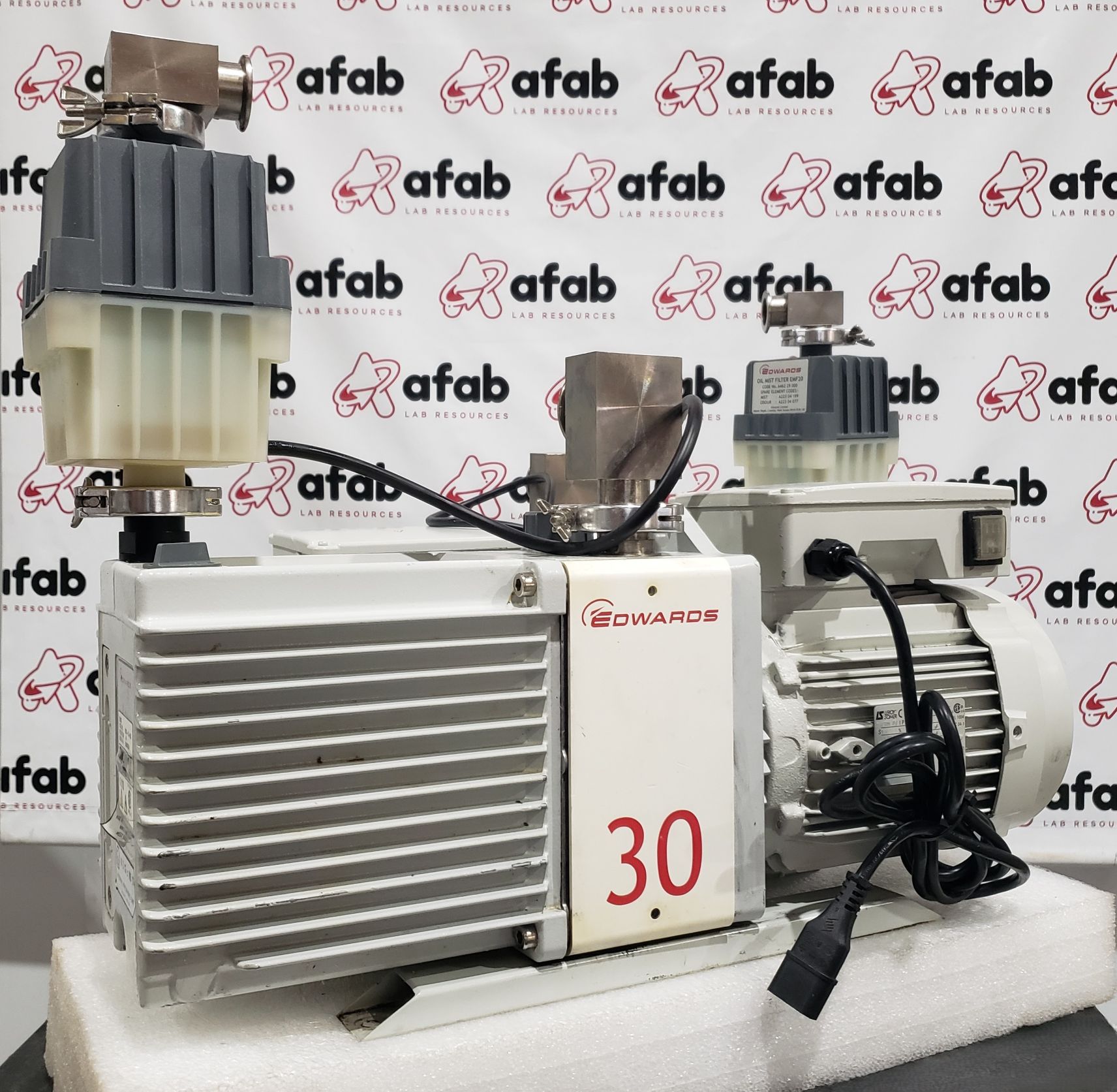

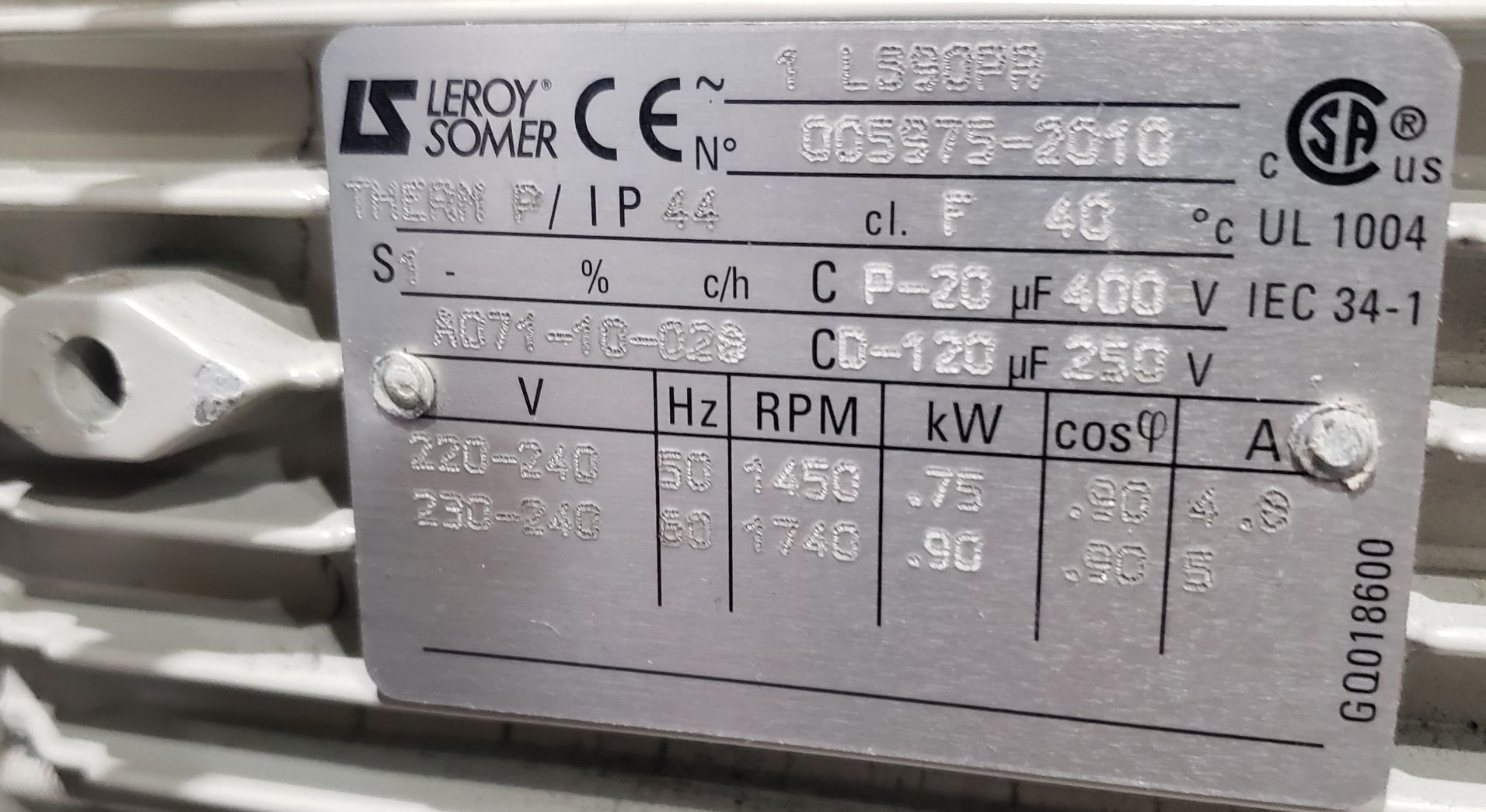

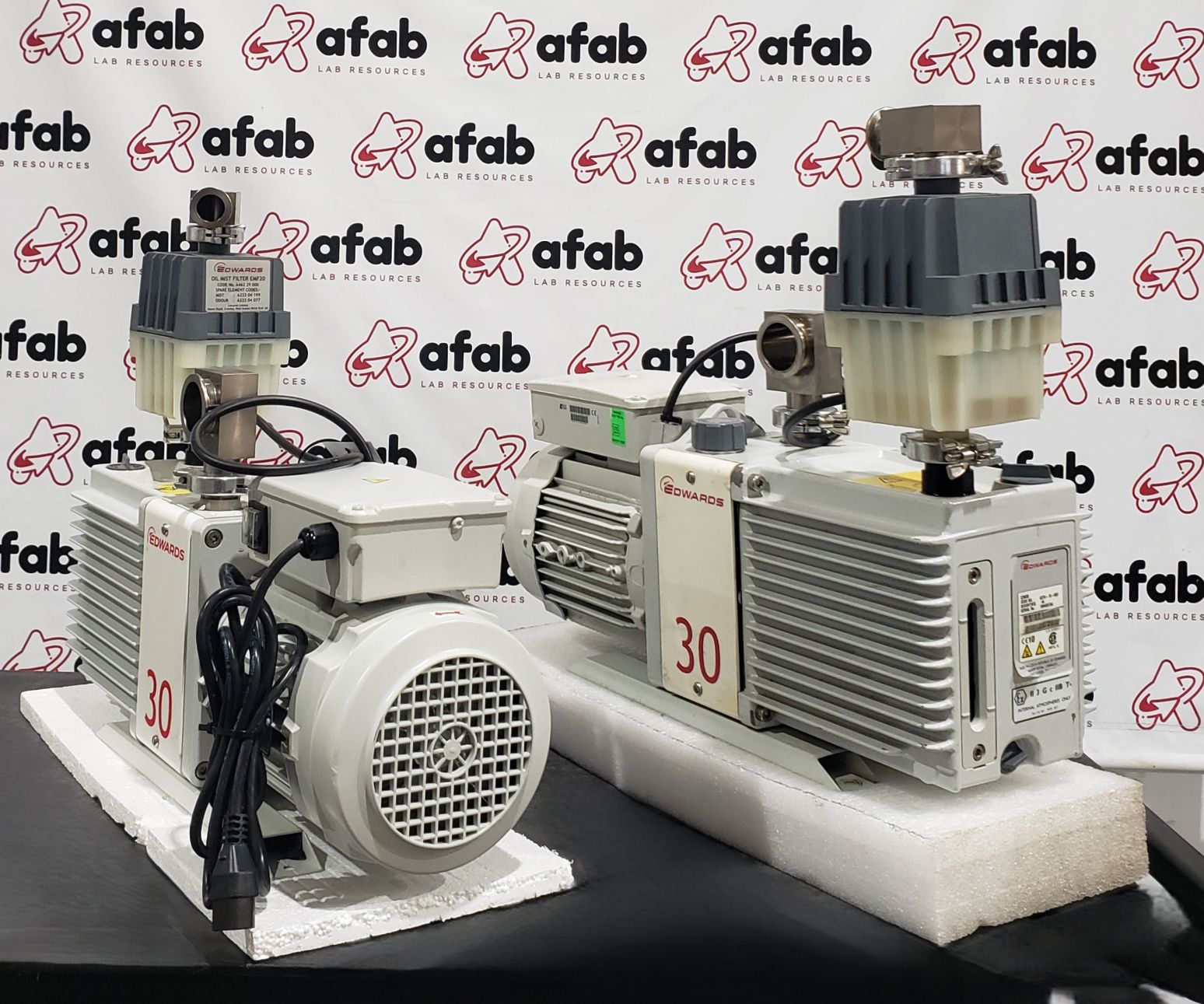

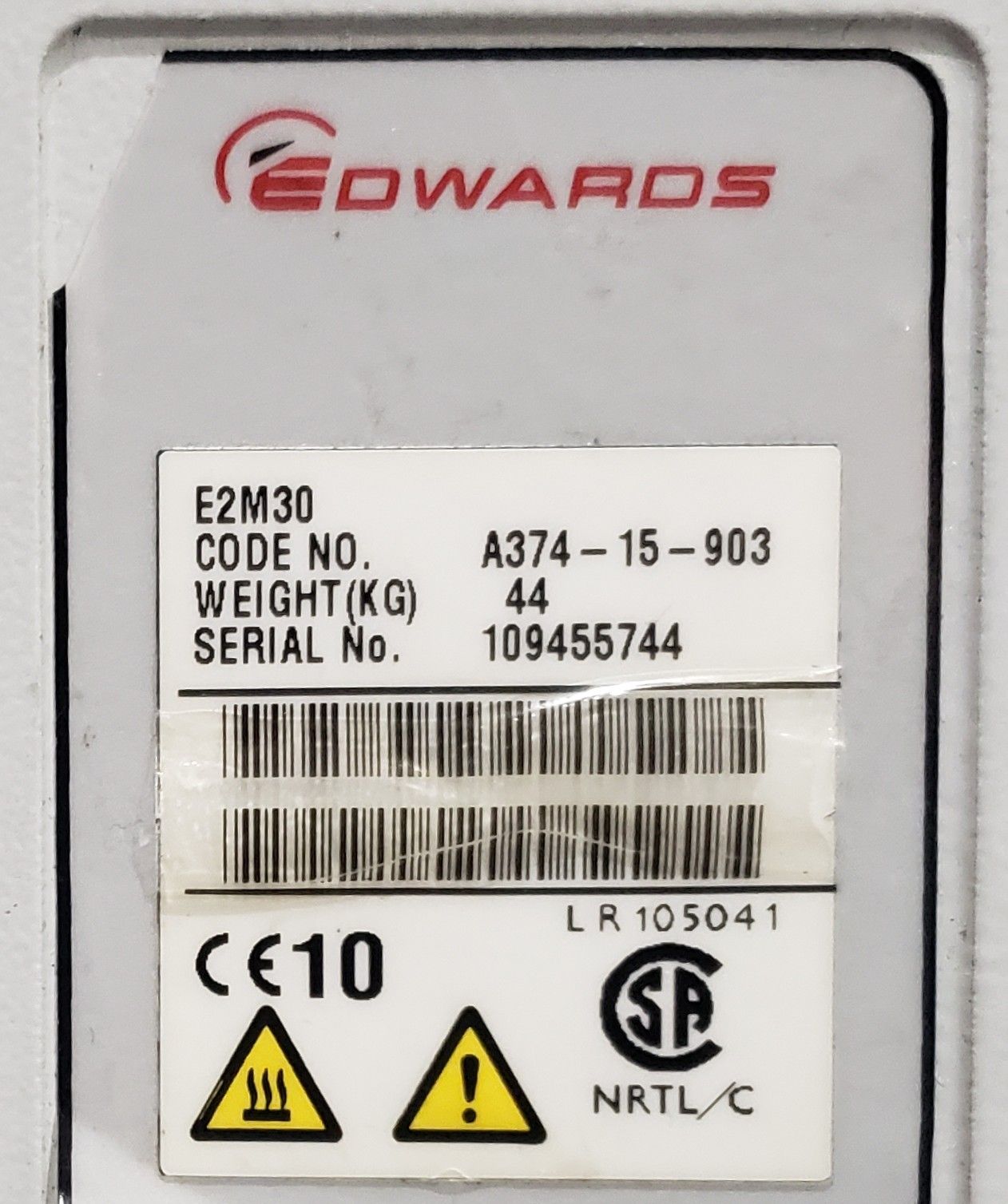

Edwards E2M30 Pumps (2)

• Ambient Operating Temp. Range: 13 to 40 °C
• Max. Operating Humidity: 90 % RH
• Maximum Displacement: 19 cfm @ 50Hz ~ 23 cfm @ 60Hz
• Maximum Speed: 16.2 cfm @ 50Hz ~ 19.4 cfm @60Hz
• Max. Rotation Speed: 1440 r/min 50Hz ~ 1720 r/min 60Hz
• Ultimate Vacuum:  W/O gas-ballast 1 x 10-3 mbar ~ W gas ballast 1.5 x 10-2 mbar ~ W/Fomblin 1x 10.2 mbar
• Max. Water Vapor Inlet Pressure: 30 mbar / 23 torr
• Max. Water Vapor Pump Rate: 0.7 kg h
• PFPE Prepared Recommended Oil: Krytox 1506 or Fomblin 06/6 (1.32L)
• Voltage: 220/250
• Approx. Dimensions (DxWxH): 22.5 x 6.69 x 9.48 in.
• Weight: 97 lbs.

r/rk – 009457  R5 C FL
